Product Details:
|
| Name:: | Glass Sealant Sealing Robot | Model: | LJTJ2030 |
|---|---|---|---|
| Power: | 15 Kw | Voltage: | 380v |
| Max.glass Size: | 2000*3000mm | Min.glass Size: | 400*300 Mm |
| Weight: | 4300 Kg | Overall Dimension: | 6700*2500*3000 Mm |
| Air Pressure: | 0.6-0.8 MPa | Working Speed: | 5-40 M/min |
| Glass Thickness: | 12-56 Mm | ||
| High Light: | 2000*3000mm Insulated Glass Sealing Robot,Two Component Insulated Glass Sealing Robot,2000*3000mm sealant dispensing equipment |
||
Automatic insulated glass sealing robot glass two component sealing robot insulating glass sealing robotic

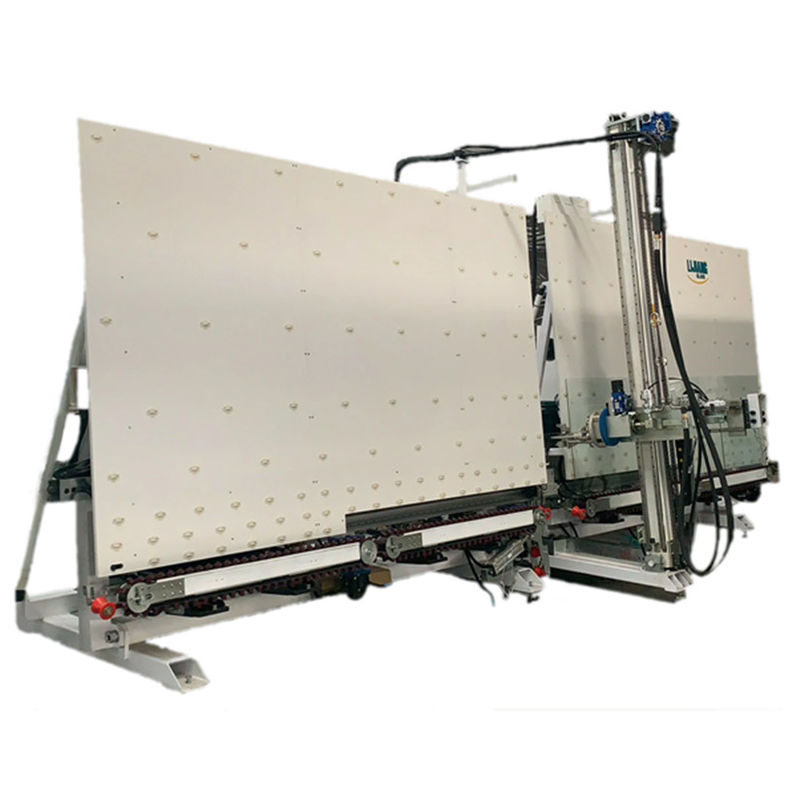

Automatic Vertical Insulating Glass Sealing Robot for glass processing
Automatic insulting glass sealing robot is used for the second sealing procedure of the hollow glass. Silicone glue, polyurethane glue or polysulfide glue are applied around the hollow glass to play the second sealing role and to maintain the stability of the structure.
Main feature
Advanced controlling system,high degree of automation, easy operation.
Using two sealant supplying system, more convenience and high efficiency.
Human-machine interface can monitor working state and fault diagnosis.
Automatically measuring sealing depth
Automatically adjust sealant output
Automatica Corner finishing function
Triple IG available
With remote communication function*
Automatically check IG thickness*
Shape IG available*
Step IG unit available*
Washing system for mixer*
A sealant heating system*
Sealant type:Silicon/Polysulfide/polyurethane
Application
1.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
2.Glass sealing machine adopt timing belt to keep smooth convey with accurate position
3.Automatic Hollow glass sealing spreading machine adopt 8 servo motors
4.Automatically measure glass size, glue depth and glue speed with linear adjustment
5.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
6.Full automatic and high-efficiency machine,Automatically repair glass corners with beautiful surface,Smooth convey without scratch and pollution
7.Single-function parts are equipped with manual functions, easy adjustment
Technical parameter
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8000*1500*3500mm |

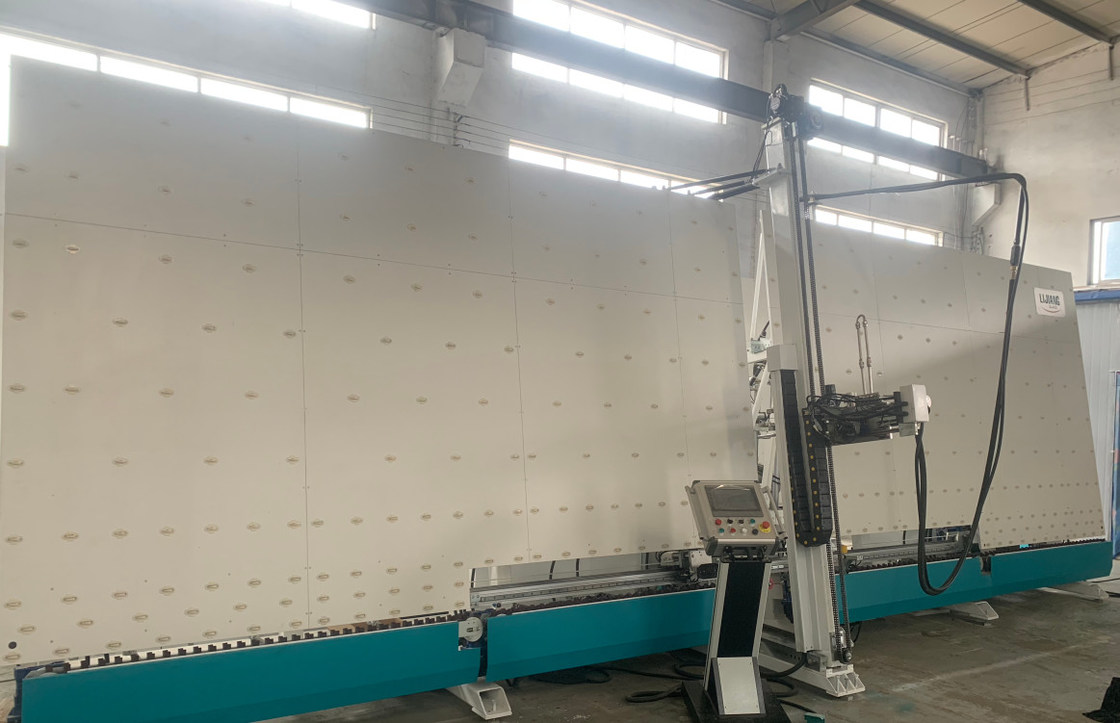

Detail pictures
