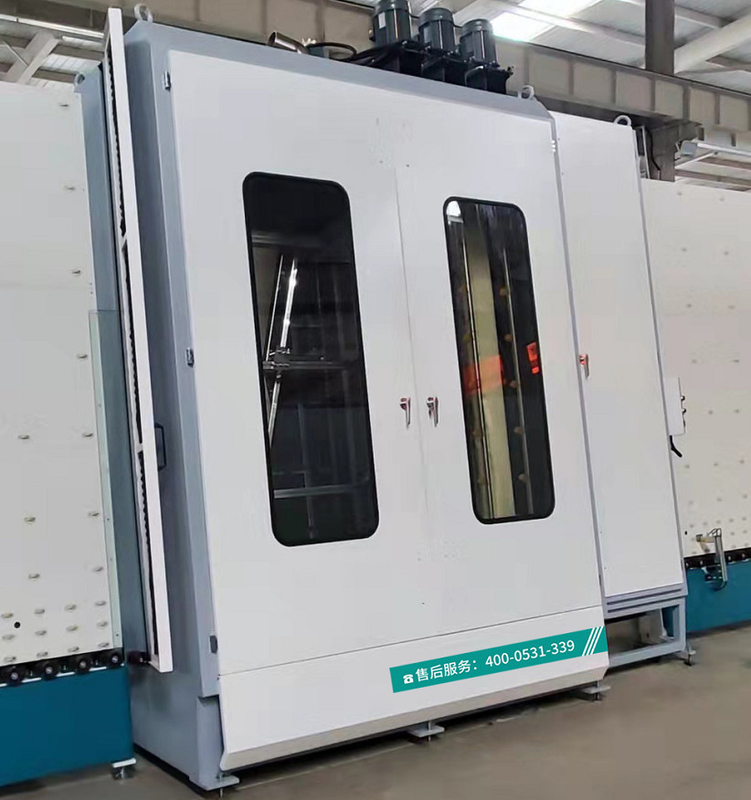

Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Large Image : Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass
Certification:	CE & ISO9000
Model Number:	KTLQ-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated Price
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Description

Product Name:	Automatic Glass Washing And Drying Machine	Max Glass Size:	2500*4000mm
Min.glass Size:	450*280mm	Glass Thickness:	3-25mm
Glass Washing Speed:	2-10m/min	Washing Brushes:	3 Pairs
Color:	Customers' Request
Highlight:	CE Automatic Glass Washing Machine , 10m/min Vertical Glass Washer , Vertical Glass Washing Machine Insulating

Automatic Vertical Glass Washing Machine Glass Washer for Insulating Glass Processing

Vertical Glass Washing Machine

Vertical Glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional.

- Self-Diagnosis system with touch screen on computer.

- Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input.

- Rotate speed of brush frequency control. (optional)

- Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm.

- High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. (25 second /unit)

- Automatic detection of Low-E glass and alarm for coating in reverse. (optional)

- Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Equipment Advantages of glass washing machine

Advantages & Benefits

☆The glass washing machine could clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table.

Configuration of three pairs of brushes

Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.

Water rust and corrosion resistant

The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.

High efficiency air knives

Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).

Stainless steel structure

The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.

Main Technical Parameter


Jinan LIJIANG Vertical Glass Washing Machine Specifications.


Type: KTLQ-2000 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying

Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems

OEM/ODM:Yes

CKD/SKD Cooperation:Yes

Regional Exclusive Agent: Yes

Type: JLLQ-2500 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying

Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems

OEM/ODM:Yes

CKD/SKD Cooperation:Yes

Regional Exclusive Agent: Yes

Type: KTLQ-2000 Vertical Glass Washing Machine	Type: KTLQ-2500 Vertical Glass Washing Machine
Max glass size: 2000mm*2500mm	Max glass size: 2000mm*2500mm
Min glass size: 2500mm*3000mm	Min glass size: 2500mm*3000mm
Working direction facing the equipment	Working direction facing the equipment
Washing speed: 2-10m/min	Washing speed: 2-10m/min
Glass thickness: 3-15 mm	Glass thickness: 3-15 mm
Insulating glass thickness: ≤40 mm	Insulating glass thickness: ≤40 mm
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS	Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Washing speed: 2-10m/min	Washing speed: 2-10m/min
Working height: 580mm	Working height: 580mm
Power: 3P 380V 50Hz	Power: 3P 380V 50Hz
Ambient temperature: 10°C-30°C, according to DIN 40040	Ambient temperature: 10°C-30°C, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040	Relative air humidity: ≤ 75 %, according to DIN 40040
