Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ
Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ
Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Large Image :  Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJQX2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 12000 USD
Packaging Details: Container
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Description
Product Name: Glass Washing Machine Color: Customers' Request
Glass Thickness: 3-15mm Condition: New
Voltage: 380V 50HZ Max Glass Size: 2400*1600mm
Usage: Washing And Drying Washing Speed: 0-8m/min
High Light:

8m/min Flat Glass Washing Machine

,

380V 50HZ Flat Glass Washer

,

PLC Control Flat Glass Washer

Low-E Glass Washing And Drying Machine CE Flat Glass Washing Machine

Insulated Double Glazed Glass Production Line series

Sizes :

2000*2500mm

2500* 3500mm

3000* 4000mm

Functions :

double glazing glass

triple glazing glass

four sides step glazing glass

Special technology of IG Line :

Making two pieces of IG units in once time

Filling argon gas online

Shaped glazing glass

Low-e film glazing glass

Air floating insulating glass line

Main Features of IG Line:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Applicable to produce stepped IG, triple IG and shaped IG

• Using servo to control system, modular function, superposition function

• Automatically adjust the depth of glue with digital display

• Min & Max glass sizes can be optional

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Automatic Vertical Insulating Glass Processing Line has 7 sections:

01 transfer section;

02 washing section;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ 0

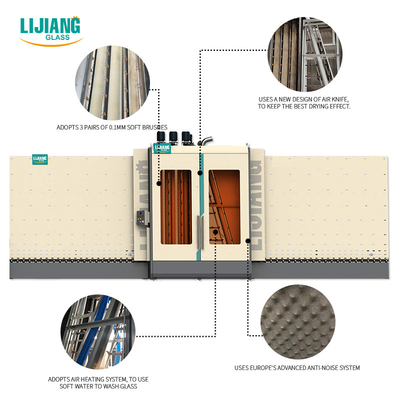

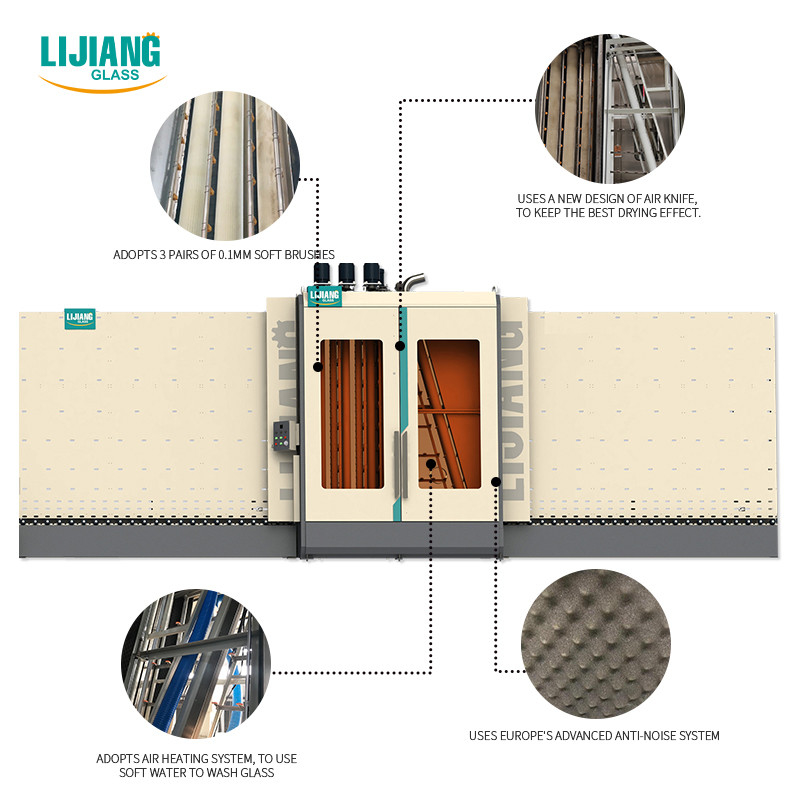

Washing section features:

• Using 3 pairs of soft brushes with 0.1mm soft hair, can wash low-e glass

• The air knife can automatically adjust the width of the air knife according to the thickness

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• Stainless steel material

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• European silencer system

• Water tank automatic temperature control, water replenishing system

• Pre-washing (Optional)

Pressing section features:

• Pressing board with adjustable structure to guarantee long-lasting service life

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• The pressing plate can be opened for easy maintenance

Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen

• No need to drill holes in spacer frame

• Standard gas is Argon gas

Technical data :

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 50mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

LIJIANG Glass Main products :

IG line series;

Sealing robot series;

Spacer bending machine series;

Butyl extruder machine series;

Low-e film edge deletion machine;

Molecular sieve filling machine;

Auxiliary insulating glass machines.
