Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min

Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min

Large Image :  Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass
Certification: CE & ISO9000
Model Number: Vertical Glass washing and drying machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated Price
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min

Description
Max Glass Size:: 2500*4000mm Min.glass Size:: 450*280mm
Glass Thickness:: 3-25mm Glass Washing Speed:: 2-10m/min
Washing Brushes:: 3 Pairs Power Supply:: 380V/220V/Customer Specification
Suitable Glass Type:: Low-E Glass
High Light:

Vertical Glass Washing Machine 10m/min

,

Low-E Glass Washing And Drying Machine

,

10m/min Glass Washing And Drying Machine

Jinan Lijiang Glass Automatic Vertical Glass Washing And Drying Machine
Product Description




Common Problems and Solutions in the Glass Deep-Processing

In the glass deep-processing, the frequently occurring problems are: 1. When butyl rubber is extruded, burrs and not smooth 2. Butyl glue does not stick to aluminum strips and glass and loses its stickiness 3. After the second seal is completed, a cold flow of butyl rubber appears after some time 4. When butyl rubber is extruded, there will be glue breaking and blockage... Frequent problems in finished glass deep-processing products: 1. Fogging inside the insulating glass 2. Condensation of insulating glass 3. Insulating glass self-explodes... Jinan LIJIANG Glass focuses on providing high-quality production and glass processing equipment and services for the global glass processing industry, and actively provides users with professional and intelligent summaries and solutions to common problems of insulating glass.
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 0
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 2
KTLQ-2500 Vertical Glass Washing Machine
KTLQ-2500 glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm. - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. (25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 4
Vertical Glass Washing and Drying Video Play

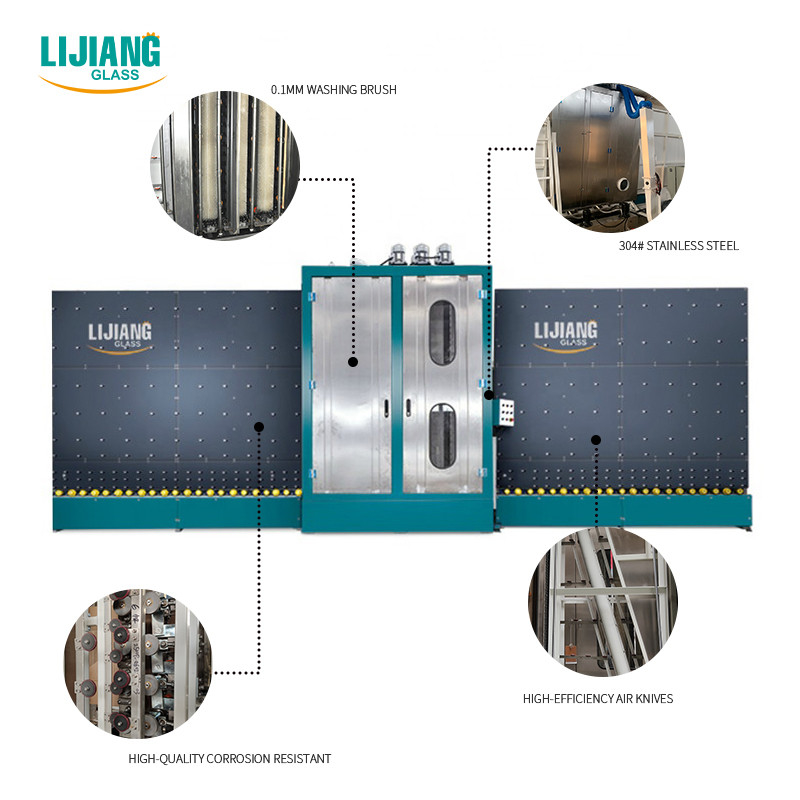

Equipment Advantages
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 5
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 6
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 7
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 8
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 9
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 10
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 11




Advantages & Benefits

☆The glass washing machine could clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table.
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 12



Configuration of three pairs of brushes
Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 13



Water rust and corrosion resistant
The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 14



High efficiency air knives
Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).
Automatic Vertical Low-E Glass Washing And Drying Machine 10m/Min 15



Stainless steel structure
The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.
Main Technical Parameter

Jinan LIJIANG Vertical Glass Washing Machine Specifications.


Type: KTLQ-2000 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes Regional Exclusive Agent: Yes

Type: JLLQ-2500 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes Regional Exclusive Agent: Yes
Type: KTLQ-2000 Vertical Glass Washing Machine
Type: KTLQ-2500 Vertical Glass Washing Machine
Max glass size: 2000mm*2500mm
Max glass size: 2000mm*2500mm
Min glass size: 2500mm*3000mm
Min glass size: 2500mm*3000mm
Working direction facing the equipment
Working direction facing the equipment
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Glass thickness: 3-15 mm
Glass thickness: 3-15 mm
Insulating glass thickness: ≤40 mm
Insulating glass thickness: ≤40 mm
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Working height: 580mm
Working height: 580mm
Power: 3P 380V 50Hz
Power: 3P 380V 50Hz
Ambient temperature: 10°C-30°C, according to DIN 40040
Ambient temperature: 10°C-30°C, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040
