Product Details:
|
Machine Name: | Insulating Glass Sealing Machine | Using: | Coating Glazed Glass |
---|---|---|---|
Max Glass Size: | 2500*4000 | Glass Thickness: | 56 Mm |
IG Type: | Double / Triple / 4-sides Step Glazing Glass | Control: | PLC And Servo Motor |
Using Glue: | Silicone / Polysulfide / Polyurethane | Warranty: | 1 Year |
High Light: | 56mm Insulating Glass Sealing Machine,PLC Insulating Glass Sealing Machine,Insulating Glass Sealing Robot Automatic |

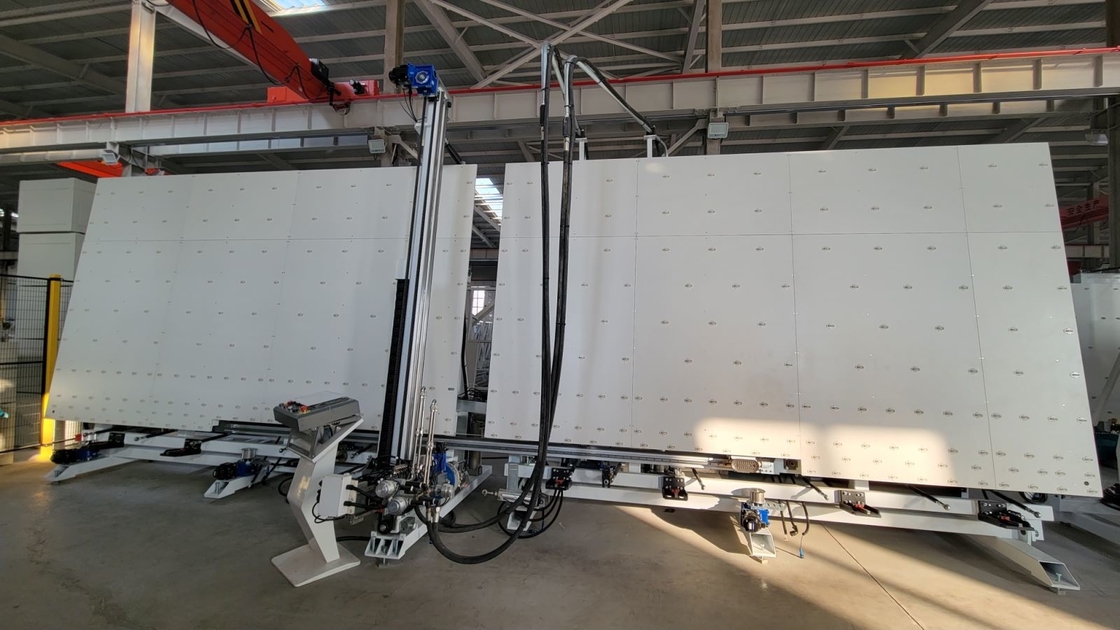

Insulating Glass Sealing Machine for Insulating Glass Machine Processing
Introduction of Insulating glass Sealing Robot :
Automatic insulatingglass sealing robot machine is used to seal the second glues during making insulating glass units. The sealing robot has the same method with coating glass, however, Insulating Glass sealing robot used servo mortor and PLC to control the whole working, it improves working efficiency. The sealing robot can out put 500 - 800 pieces per day in 8 hours.
Specification ofInsulating Glass Sealing line
Model | LJTJ2540 |
Voltage Power | 415V 13KW |
Air Pressure | 0.5~0.7Mpa |
Extruding pressure | 32Mpa |
Max.Glass size | 2500*4000 |
Min.Glass size | 400*300mm |
Glass thickness | 12~56mm |
Working speed | 5~40m/min |
Overall dimension | 11000*3600*3500mm |
Machine Noise :
A-weighted sound pressure level | |
Stand-by state | Working state |
50 db | 85 db |
Function and feature of Insulating glass machie:
1.Insulating glass processing machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
Operating notes:
When start working ,it need to wait the hydraulic pressure is stable ,then start extruding sealant on the first glass so as to avoid sealant output not stable.
