Place of Origin:
CHINA
Brand Name:
LIJIANG
Certification:
CE
Model Number:
LJBZ2535

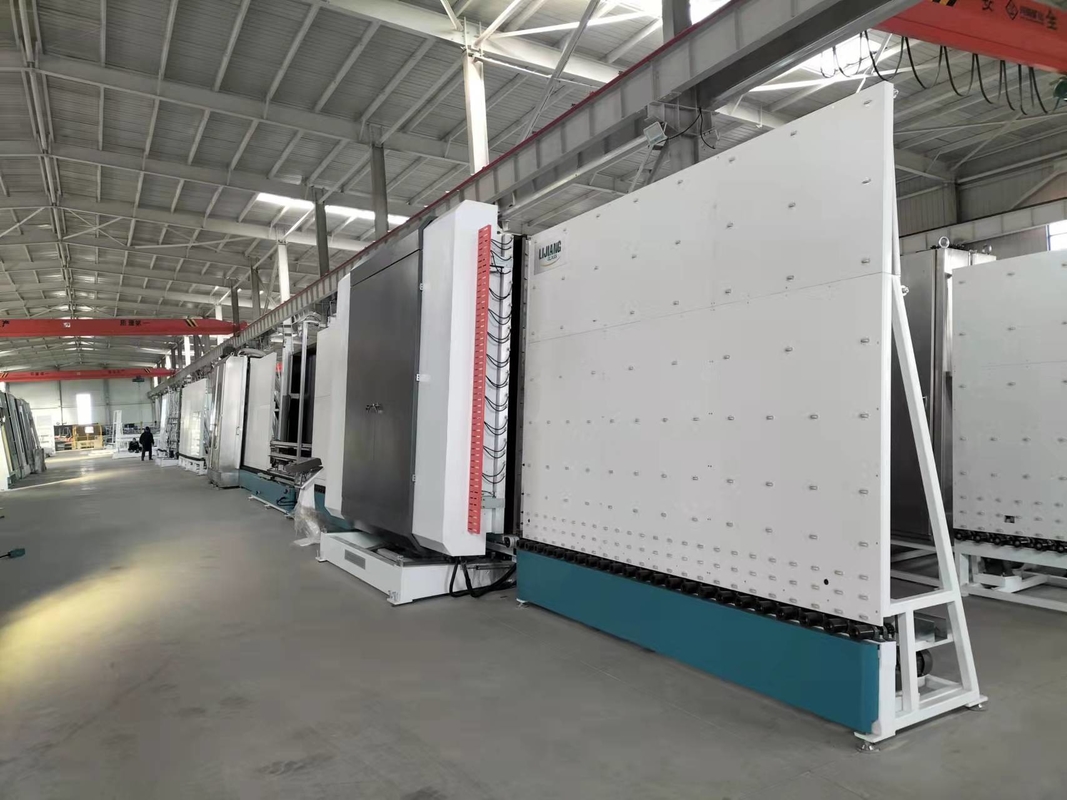

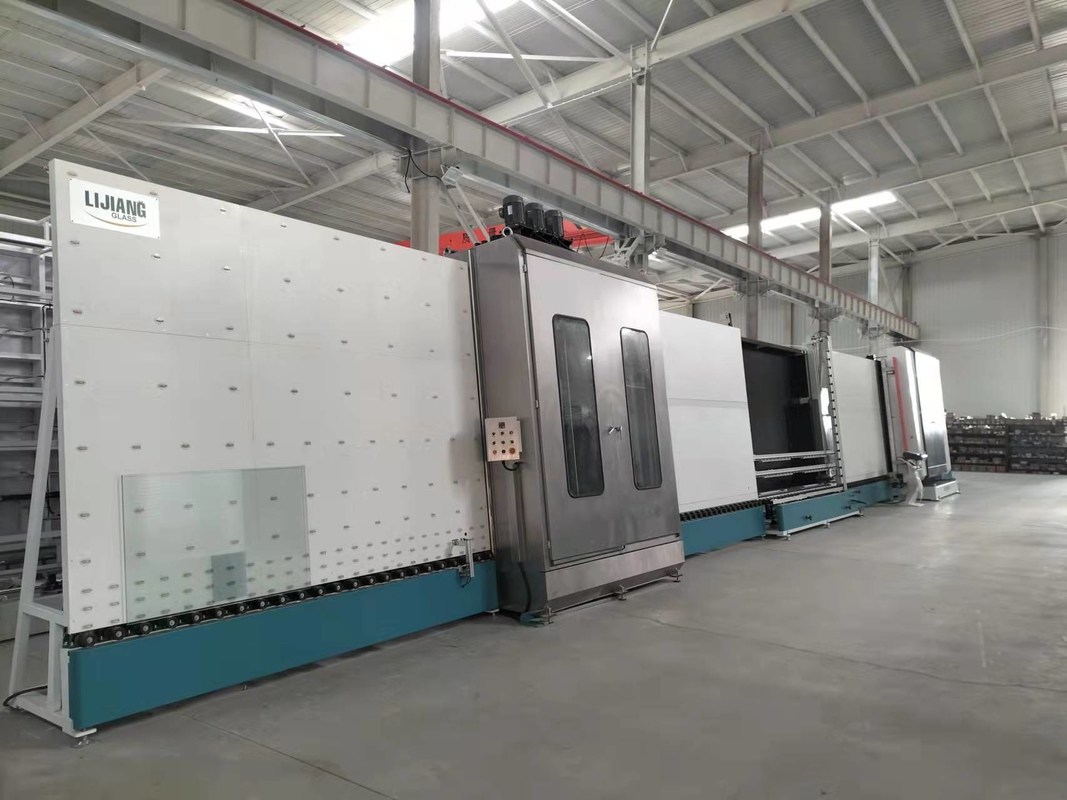

Vertical Insulating Glass Production Line Insulating Glass Processing Line
Lijiang insulating glass production line adopts the latest technology, its main purpose is to create high-end quality, provide customers with the latest production technology, improve output, high efficiency, save production cost, produce the maximum benefit.
Now the hollow glass production line of Lijiang Glass uses the air glass transport technology. The new technology is to prevent the glass from falling off and being contaminated by the wheels, leaving marks, so the new technology is used to improve the high quality of IG products.
The loading section of the insulating glass production line is of inclined vertical structure. The driving roller is wear-resistant, acid-alkali polyamine grease roller, adopting stepless frequency conversion speed regulation, the glass can run smoothly at an appropriate speed. The section is used as storage area for small glass and storage area for extra long glass to improve the production efficiency of small glass. Equipped with glass and aluminum frame automatic detection mechanism, provide sheet pressing parameters.
Glass washing machine uses 304 stainless steel materials
The whole washing and drying section adopt 304 stainless steel materials, including the plate
and interior spare parts.
Using Europe's advanced anti-noise system to create a good working environment for employees
The noise can be controlled below 90 decibels by using nylon gear and sponges.
Parameters of the glass washer
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
