Vertical Glass Washing And Drying Machine Easy Operation

Vertical Glass Washing And Drying Machine Easy Operation
Vertical Glass Washing And Drying Machine Easy Operation Vertical Glass Washing And Drying Machine Easy Operation

Large Image :  Vertical Glass Washing And Drying Machine Easy Operation

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJLBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 10set/month
Contact Now

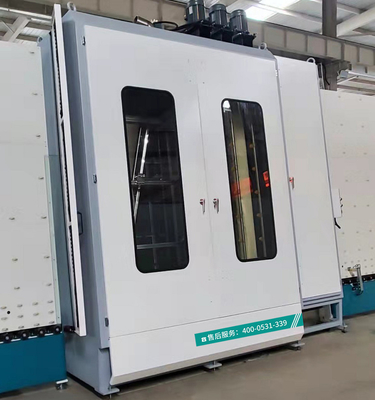

Vertical Glass Washing And Drying Machine Easy Operation

Description
Name: Vertical Washing And Drying Machine Material: Stailess Stell Touching Water Part
Advantage: Brush For Low-e Feature: Easy Opration
Washing Speed: 2-10m/min Washing Brushes: 6pieces
Highlight:

Vertical Glass Washing And Drying Machine

,

10m/min Drying Washing Glass Machine

Automatic Vertical Glass Washing And Drying Machine Glass Washing



The automatic vertical glass washing and drying machine is used for cleaning and drying the upper and lower surfaces of ordinary flat glass and high-quality LOW-E glass. It is dry-cleaned by the feeding section and the cleaning air.

Vertical Glass Washing And Drying Machine Easy Operation 0

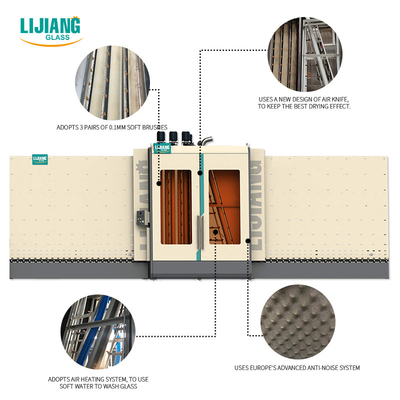

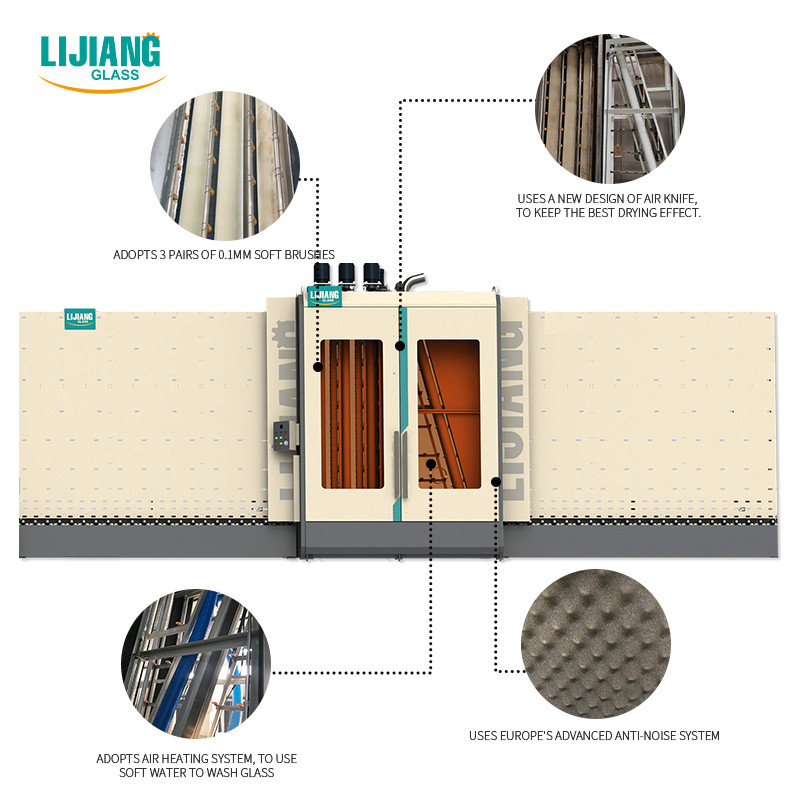

Feature of Automatic Glass Washing Machine
  • All 3 sets of soft brushes can be cleaned with low-e glass and 4 sets of water spray in the glass washer.
  • The washing/drying area of the automatic glass washing machine is all made of steel.
  • The main power consumption is mainly in the hollow line cleaning and drying section.
  • The blades of the glass washing machine adopt a floating design, which always maintains the correct and precise distance between the glass and the blades in the embossing and design part.
  • The driving wheel of the cleaning dry section of the glass washing machine: the front and rear driving wheels move evenly, both of which are active. Regardless of the size of the glass, make sure the glass passes through smoothly.
  • The brush shaft and bearing of the glass washing machine are made of steel, which has good cleaning effect and long service life.
  • The dryer is designed with sound insulation to reduce noise....

Vertical Glass Washing And Drying Machine Easy Operation 1Vertical Glass Washing And Drying Machine Easy Operation 2
►The drying roon system



Vertical Glass Washing And Drying Machine Easy Operation 3Vertical Glass Washing And Drying Machine Easy Operation 4

►The water tank system and water heating fuction

Vertical Glass Washing And Drying Machine Easy Operation 5Vertical Glass Washing And Drying Machine Easy Operation 6

►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.





Other product of Insulating glass processing



Vertical Insulating Glass Production Line LJBZ2535G

Vertical Glass Washing And Drying Machine Easy Operation 7



Main Features of Insulating Glass Production Line

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

Technical data of Insulating Glass Line

Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
IG line without filling gas online



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online

Vertical Glass Washing And Drying Machine Easy Operation 8



Vertical Glass Washing And Drying Machine Easy Operation 9Vertical Glass Washing And Drying Machine Easy Operation 10Vertical Glass Washing And Drying Machine Easy Operation 11Vertical Glass Washing And Drying Machine Easy Operation 12
