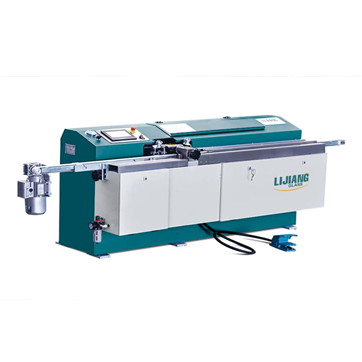

Product Details:
|
| Product Name: | Automatic Butyl Extruder Machine | Dimension(L*W*H): | 2600*680*1100mm |
|---|---|---|---|
| Aluminum Spacer Width: | 6A - 27A | Total Power: | 220V 50Hz 1.5Kw |
| Air Source: | ≥0.65MPa | PLC: | Germany SIEMENS |
| High Light: | Auto Butyl Extruder Machine,Butyl Rubber Extruder,CE Automatic Butyl Extruder Machine |
||
PARAMETER
| Voltage | 3P380V50Hz |
| Power | 5.7kw |
| Squeeze pressure | 10-25MPa |
| Temperature | 110-140T |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | Flow 0.4m3/min |
| Air pressure | > 0.6MPa |
| Dimension | 2800X700X900mm |
| Weight | 750 kg |

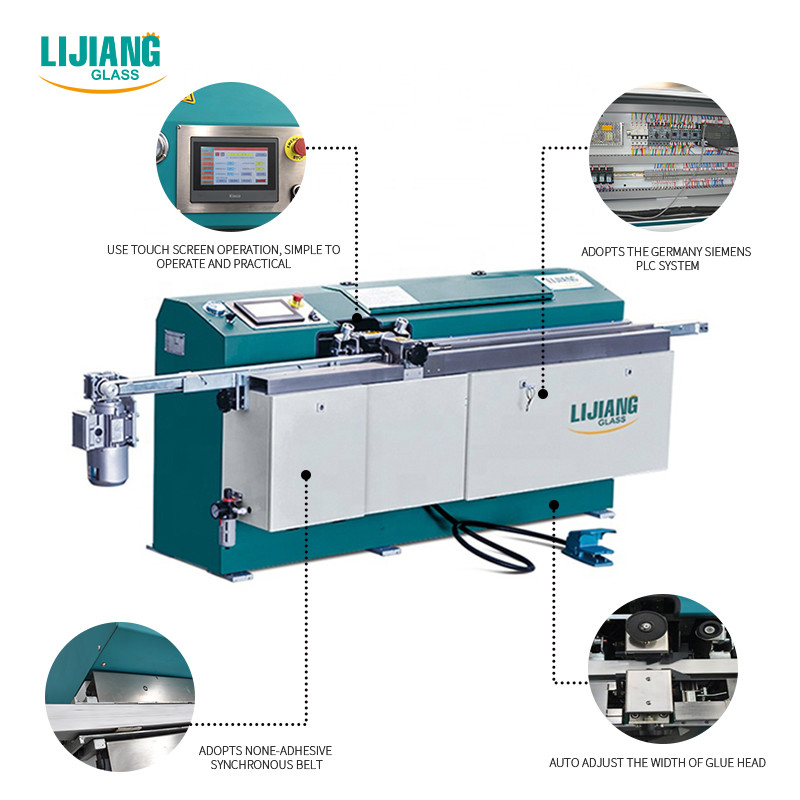

PERFORMANCE of Butyl extruder machine
• The coating glue speed can reach 47 m/ min
• Saving glue by compared with ordinary machine. The glue can reach 7g/m
• Manual exhaust, simple operation
• Adopt non adhesive synchronous belt, talc powder is not required to clean it
• Main accessories are made of German brand, PLC program control, stable performance
• Using movable vertical glue release and horizontal coating, convenient and practical
• Adjust the width of glue head automatically, ensure the double side gluing is consistent with the quick opening valve integrated control
• The height adjustment of beam is convenient, effective to solve the problem of white line
• Use touch screen operation, simple trial
• Adjust the glue output automatically according to the speed change
• Adopt brand hydraulic system to ensure uniform and full rubber output
• The rubber cylinder adopts the pull-up structure, which is convenient for changing the rubber
