Double Glazing Production Line For Glass Processing Insulating

Double Glazing Glass Production Line For Glass Processing Insulating Glass Processing

Double Glazing Glass Production Line For Glass Processing

Characteristics of insulating glass production line

1. Adopt unique aeration structure, fast aeration speed, high aeration content, save air source

2. It can be connected with ERP and MES of the factory to realize the upgrade from independent functional equipment to automation and then to intelligence.
3. There are two kinds of pressure plate, can be used alone or at the same time. Making small glass is two glass processing at the same time, improve the efficiency of the whole line.

Details of IGU series products

Cleaning area

The body of the cleaning machine is made of high thickness 304 stainless steel plate, strong and durable.
Equipped with automatic glass thickness measuring device, there is no need to set the glass thickness separately and automatic cleaning, thus scientifically avoiding the tedious manual adjustment when more than 8mm, the thickness can be cleaned up to 30mm.
Brush bearing and bearing seat are important parts of cleaning machine, high speed, easy to damage. Our company adopts thrust self-aligning ball bearings, which are more durable and stable than other rubber and plastic materials.

Air drying chamber

The air knife can automatically adjust the opening and distance according to different glass thickness.
Adjust the structure using mechanical structure, high stability.
Continuous cleaning of glass of different thickness without manual adjustment of the air knife. It has better effect to make sandwich insulating glass

Frame part
Advanced screw adjusting structure design, aluminum frame positioning accuracy is high.
Aluminum alloy guide rail is light and smooth, and can be adjusted automatically according to the height of glass.
The overall hollowed out design, additional maintenance door, convenient cleaning glass back stains.

Stamping mode: servo motor synchronous belt
The servo motor synchronous belt is adopted to ensure the ultra-high precision and fast pressing speed of the glass. You can make really, really thick glass.

Technical parameters:

Charging time :3-5 seconds (1000㎜×1000㎜)

Insulating glass Thickness :12-60mm 80mm(customized)

Maximum size that can be processed by double plate machine :(custom)

Aerated insulating glass (height 3300mm* Length 7000mm)

Inflatable belt - the inflatable way of Lijiang Glass

Inflate from the bottom of the belt,
The porosity is always located between the first glass and the aluminum frame, so that the gas concentration is high, uniform, fast, and the air source is saved.

Parameter of Jumbo Size Automatic Insulating Glass Production Line

Electrical parameters

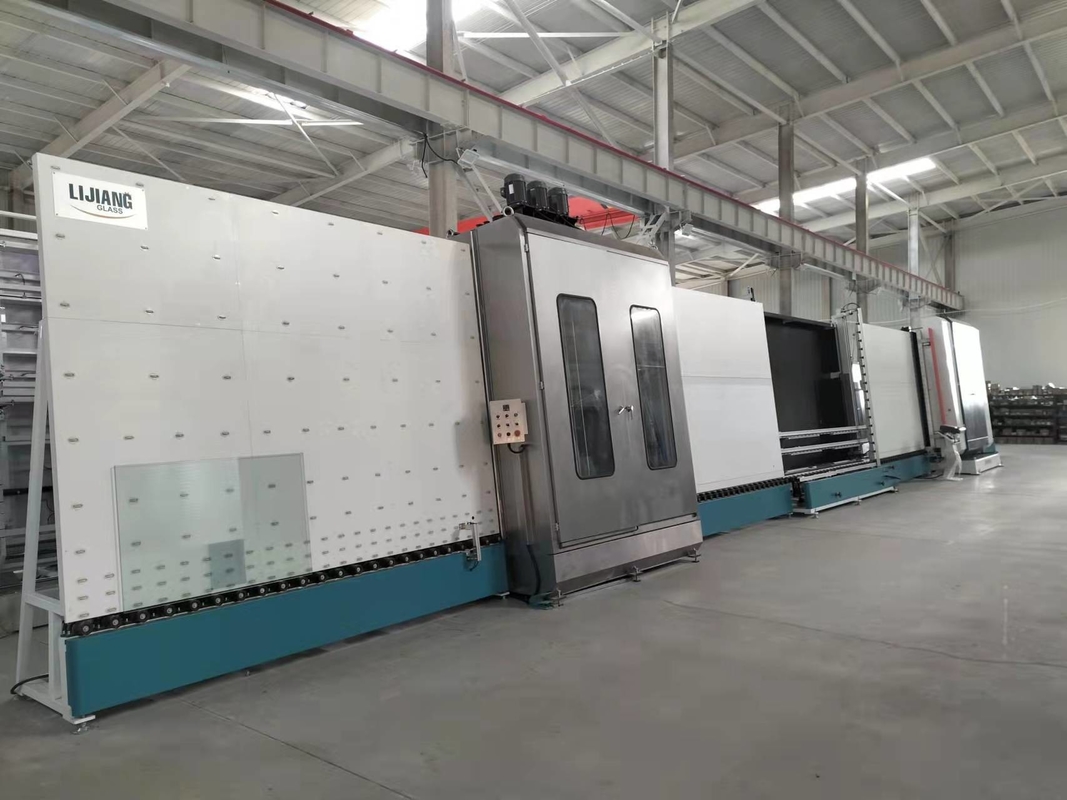

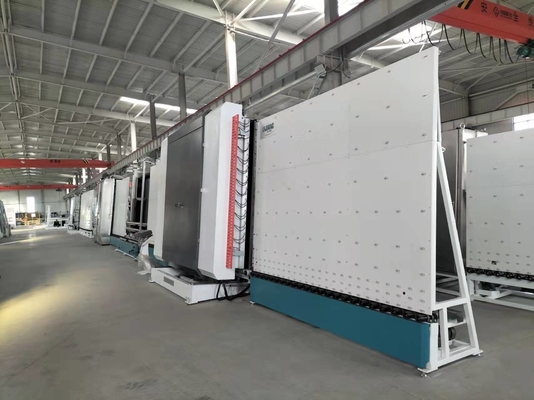

Pictures of Jumbo size automatic insulating glass production line

Related Production of LIJIANG GLASS

Vertical Automatic Glass Washing and Drying Machine

• Automatic vertical cleaning machine adopts Siemens control system, which can freely adjust the cleaning speed of cleaning machine.

•

• Vertical Automatic washing machine can Wash online and offline low-e glass, automatically recognizes Low-e film
•
• Vertical Automatic washing machine Using 6 pieces of soft brushes

•

• The pre-cleaning section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the right speed.
• Water tank automatic temperature control, water replenishing system Cleaning and water tanks are made of stainless steel and corrosion resistant materials, and the transfer rollers are acid and alkali resistant rubber rollers, which are automatically adjusted according to the glass thickness.

• 304 stainless steel materials
•
• Automatic vertical washing machine Using intelligent intermittent energy-saving working methods
• Automatic vertical washing machine adopt European silencer system
• The air knife can automatically adjust the width of the air knife according to the thickness
• Automatic vertical washing machine Adopt variable frequency fan, energy efficient, good cleaning effect
• Hierarchical type washing system

Tech Parameters of Vertical Glass cleaning and Drying Machine

Advantage of glass washiing machine
•Using 3Pair of soft brushes with 0.1mm soft hair, can wash low-e glass
•Pre-washing (Optional)
•The air knife can automatically adjust the width of the air knife according to the thickness
•New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
•European silencer system
•The operation box with washing speed display, can accurately display washing speed (8-10m) •Water tank automatic temperature control, water replenishing system
•Stainless steel material

Detail of AutomaticGlass Washing Machine
