3300*7000 Mm Jumbo Size Insulating Glass Line With Argon Filling

Large Image : 3300*7000 Mm Jumbo Size Insulating Glass Line With Argon Filling

Product Details:

Place of Origin:	Jinan
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJBZ3370

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	250000 USD/SET
Packaging Details:	Container
Delivery Time:	50 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	2 SETS/MONTH

Contact Now

3300*7000 Mm Jumbo Size Insulating Glass Line With Argon Filling

Description

Name:	Insulating Glass Machine	Voltage:	Requirements
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Power(w):	30.8 KW
Min. Glass Size:	300x400mm	Usage:	For Process Insulating Glass
Glass Thickness:	3-15mm	Power Supply:	220V/380V/400V/415V
Max. Glass Size:	3300*7000mm	Single Glass Thickness:	3~15mm
Work Speed:	15-45 M/min
Highlight:	Insulating Glass Line Jumbo Size , Jumbo Size Insulating Glass Machine , Argon Filling Insulating Glass Machine

3300*7000 Mm Jumbo Size IG Line With Argon Filling Can Be Customized For Special Requirements

LJBZ3370 Automatic Insulating Glass Production Line

LJBZ3370 Insulating Glass Production Line has 07 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

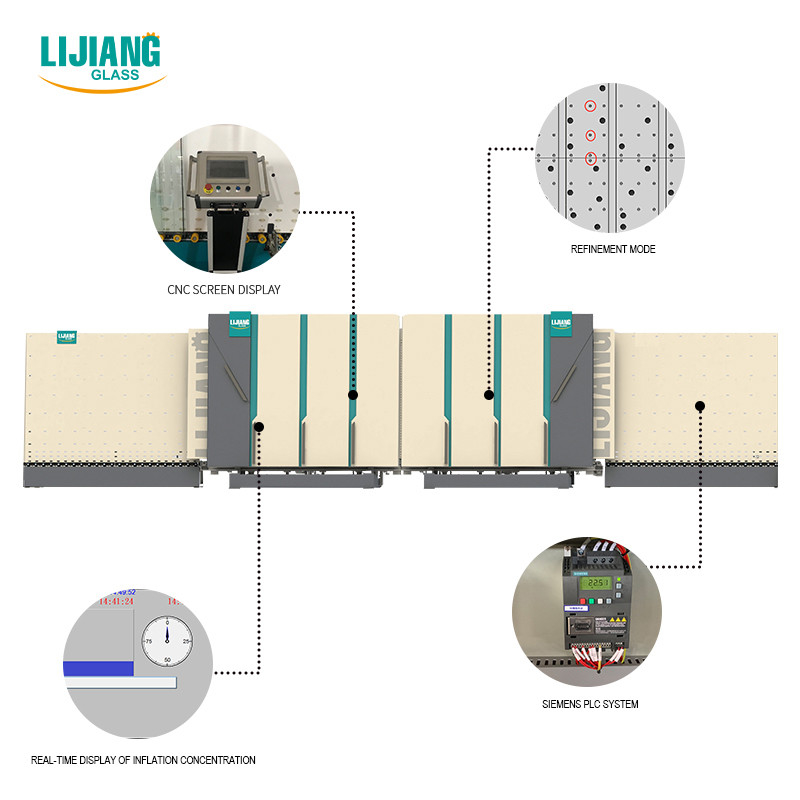

Optional functions: •Step glass with optional edges •Shaped glass •Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

The second part: the washing and drying section.

In this glass washing and drying section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.

The 6th parts: the pressing and gas filling section.

In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC) Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.

Benefits & Advantages

Adopt SIEMENS control system, keep stable performance PLC control system, touch screen interface Automatically adjust the depth of glue with digital display Using servo to control system, modular function, superposition function Applicable to produce stepped IG, triple IG and shaped IG Two pieces of IGU can be made and filled with argon gas in one time (Optional) Min & Max glass sizes can be optional European design concept, simple and smart operation; the world-famous brand of core components, ensure stable operation and long service life; It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass; Large glass processing size, various models and customization available; Large production capacity, output 1,000pcs in working days; It can be used for two-layer, three-layer, pad and glass with irregular shape; Automatic air gas filling during the glass paper assembly process.
