Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment

Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment

Large Image :  Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass
Certification: CE & ISO9000
Model Number: LJBZ2535G Automatic Vertical Insulating Glass Production Line
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Glass Deep-processing
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Contact Now

Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment

Description
Dimension(L*W*H): 23500mm*3500mm*3700mm Glass Thickness: 1-40mm
Max. Glass Size: 2500mm*3500mm Insulating Glass Thickness: 50mm / 60mm
Glass Thickness: 3-15mm / 19mm Glass Conveyor Speed: 45m/min
Glass Washing Speed: 2-10m/min Washing Brushes: 3 Pairs
High Light:

Inflatable Insulating Glass Processing Machine

,

Insulating Glass Double Glazing Equipment

,

Automatic Double Glazing Equipment

Inflatable Insulating Glass Processing Machine Glass Washing Machine
LJBZ2535G Automatic Vertical Insulating Glass Inflatable Inside and Outside Plate Production Line Adopt SIEMENS Control System

Product Description

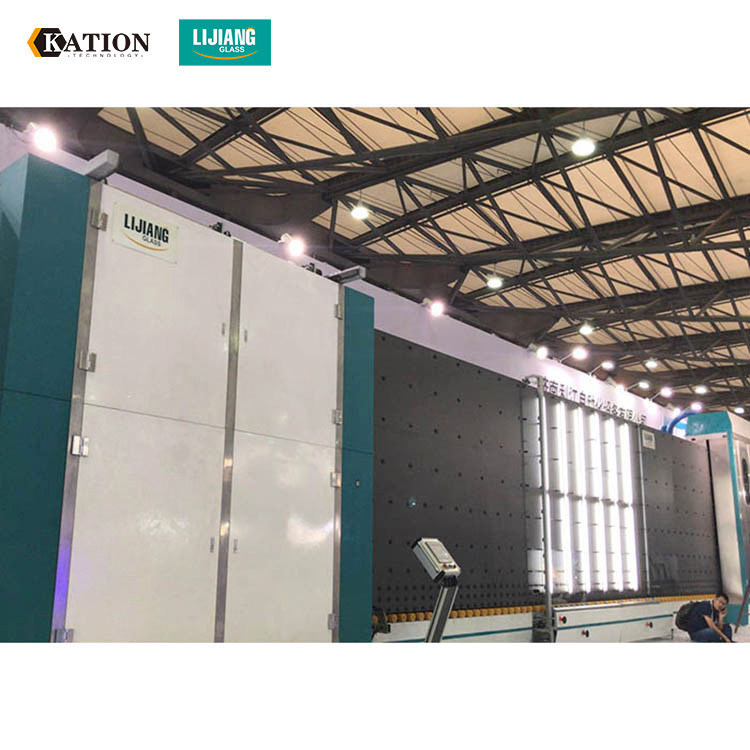

LJBZ2535 Automatic Insulating Glass Production Line

The whole LJBZ2535 Insulating Glass Production Line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section. Optional functions: •Step glass with optional edges •Shaped glass •Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 0
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 1
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 2

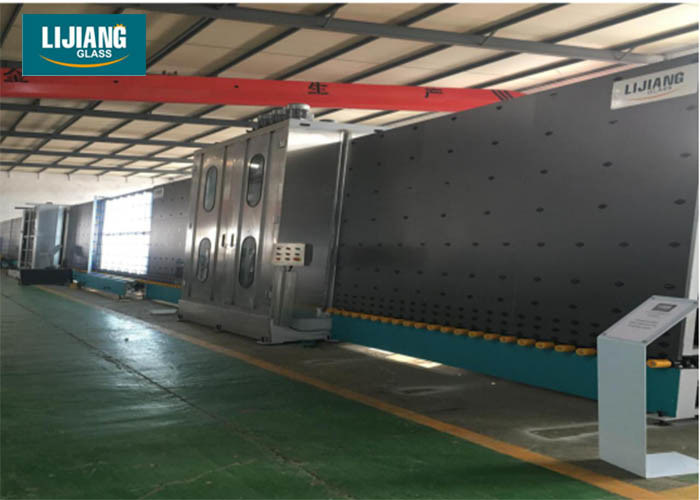

The second part: the washing and drying section.
In this glass washing and drying section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 3
The 6th parts: the pressing and gas filling section.
In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen.
During the gas filling processing, the touch screen can show off the whole gas filing process visually.
How to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing.
Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time.
By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC) Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.
Advantages & Features
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 4
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 5
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 6
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 7
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 8
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 9
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 10




Benefits & Advantages

Adopt SIEMENS control system, keep stable performance PLC control system, touch screen interface Automatically adjust the depth of glue with digital display Using servo to control system, modular function, superposition function Applicable to produce stepped IG, triple IG and shaped IG Two pieces of IGU can be made and filled with argon gas in one time (Optional) Min & Max glass sizes can be optional European design concept, simple and smart operation; the world-famous brand of core components, ensure stable operation and long service life; It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass; Large glass processing size, various models and customization available; Large production capacity, output 1,000pcs in working days; It can be used for two-layer, three-layer, pad and glass with irregular shape; Automatic air gas filling during the glass paper assembly process.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 11



The coating inspection

To avoid the Low-E glass or Coated glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 12



The pressing box uses the high precision servo motor.
The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 13



It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.
It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass washing.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 14



The whole washing machine all uses #304 stainless steel materials
The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 15



Air floating technology - Optional
The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass passes through smoothly. The equipment adopts the new air–floating technology that uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 16



The first one is to use adjustable points to ensure that the platen will never deform.
The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no other suppliers could guarantee that the pressing board will remain vertical and straight all the time after being used for over 10 or 20 years.
Main Technical Parameter
Item.
Spec.
Max. glass size
2500mm*3500mm
Min. glass size
280mm*400mm
Glass thickness
3-15mm / 19mm
Insulating glass thickness
50mm / 60mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
3P 380V 50HZ 40KW
Dimension
23500*3500*3700mm
Weight
6500kg
Name
Brand
Servo motor
Germany Simens
Servo driver
Germany Simens
Servo motor
Germany Simens
Servo motor
Germany Simens
PLC
Germany Simens
Low voltage component
Germany Simens
Frequency converter
Germany Simens
Switching power supply
Taiwan MW
Optoelectronic switch
Korea Autonics
Pneumatic component
Taiwan Airtac
Pneumatic component
Taiwan Airtac
Touch screen
Taiwan Wenview
Travel switch
Taiwan (TEND)
Relay
Japan Omron
Button and indicator light
French Schneider





LJZT02 Gold partners for sealant spreading—Rotated table





Rotated sealant spreading table LJZT02





Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 17







Main feature





1.Easy operating, simple and flexible



2.It is used for fixing and rotating glass when manual coating the outside of IG glass



3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass



Main technical parameter





Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm











LJSGF01 Freezer LJSGF01



Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 18





APPLICATION





LJSGF01 Freezer is used for short time refrigerating and heating the spreading gun of Sealant spreading machine, while you don’t need to wash and clear the spreading gun. The use of machine can reduce the waste of sealant for clean the gun, reduce the production cost, and greatly increase the work efficiency.



LJSGF01 Freezer is one of the necessary machines for Sealant spreading machine to produce insulating glass. It has the following features: cover small floor area, easy to move, reliability, easy service and so on.









Main feature





1.It is used for storing the gun when manual sealant gun stop working during the process of gluing insulating glass



2.Storing at low temperature, to prevent sealant solidify



3.Can be effectively reduced waste when cleaning the glue









1,Machine's body

Heating and freezing switch, easy to operate.



The freezer have two parts:one for heating,another one for freezing.





Main technical parameter





Max refrigerating temperature 70ºC
Min heating temperature -40ºC
Total power 3.8kw
Refrigerating <150min
Overall dimension 1550*60*1300mm



LJSKJ02 Semi-auto aluminum frame transfer machine



Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 19

APPLICATION

LJSKJ02 semi-automatic aluminum frame transfer machine is the equipment necessary for producing aluminum spacer type insulating glass. After an aluminum frame is coated with butyl, hang on the hook of this machine that may convey it to another side automatically.

Model LJSKJ02 semi-automatic aluminum frame transfer machine consists of frame, driving system and electrical control part.

Main technical parameter

Power supply 380V 50Hz
Total power 0.18kw
Dimension 2520*3012*3000mm





LJGJ03 Molecular sieve filling machine



1.Can effectively fill desiccant and keep dry

2.Manually filling desiccant into spacer frame

3.The desiccant can be recyclable

4.Easy operating, simple and flexible

Main technical parameter

Power supply 220V 50Hz
Total power 1kw
Dimension 2490*400*2200mm



LJQJ02 Aluminum spacing trip cutting machine

Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 20

1.It is used for cutting aluminum strip

Main technical parameter

Power supply 380V 50Hz
Total power 0.55kw
Dimension 5000*1050*415mm



LJZWB2020 Semi-automatic spacer bending machine



Inflatable Insulating Glass Processing Machine Automatic Double Glazing Equipment 21



1. Can bend aluminum spacer with hand help.



Max.bending size 2500mm*2500mm
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-24mm
Dimensional error ≤±0.5mm
Angle error ≤±1º
Processing speed ≤45s/frame
Air supply ≥0.65MPa
