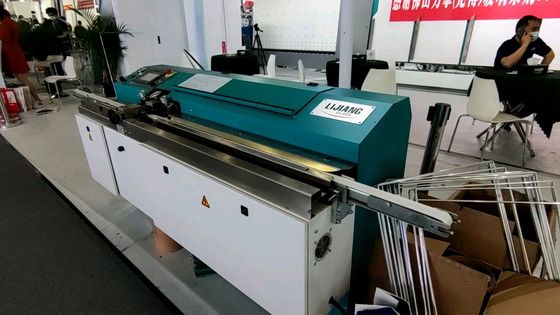

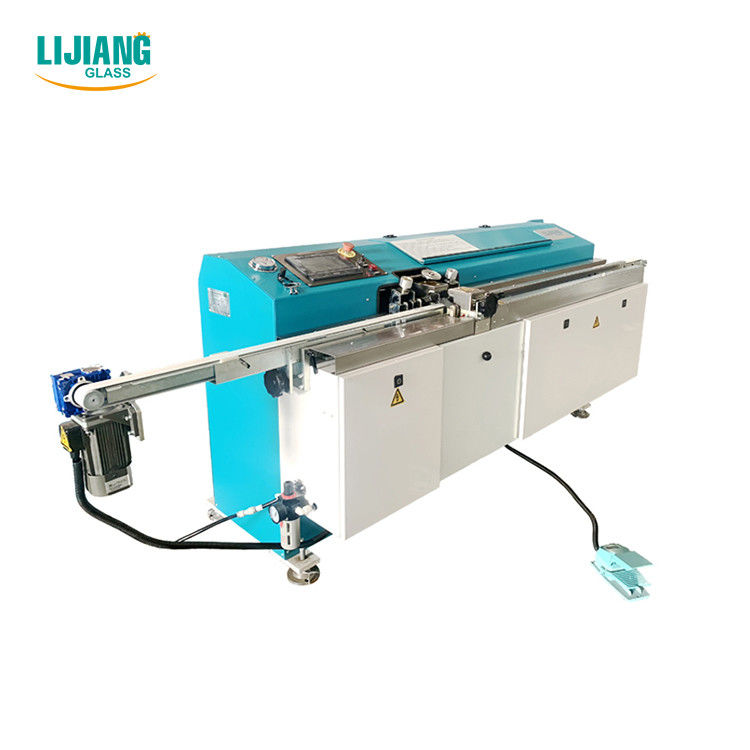

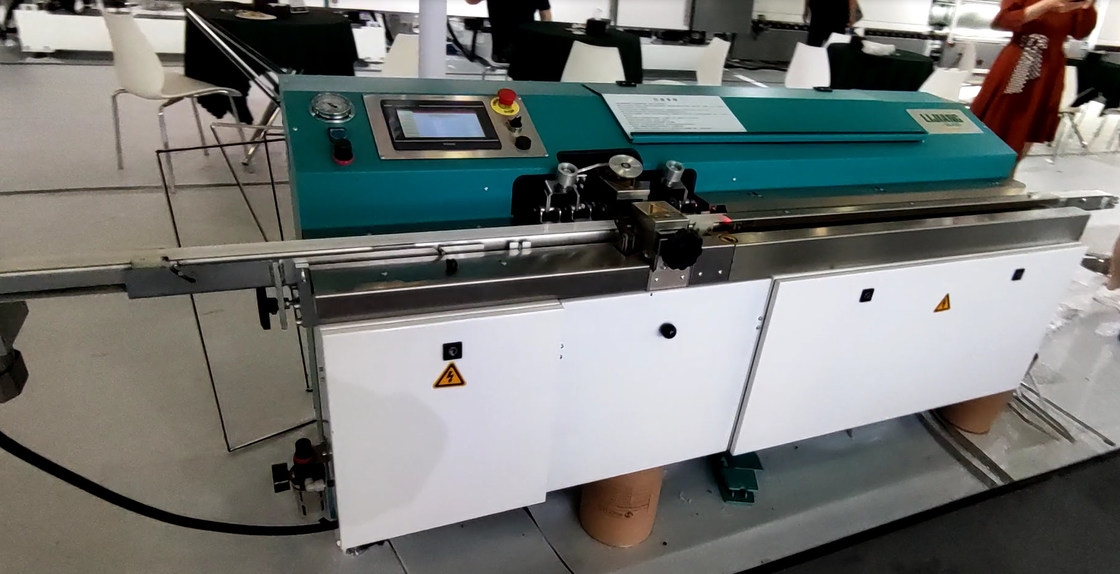

PLC Automatic Butyl Extruder Machine For Insulating Glass

Large Image : PLC Automatic Butyl Extruder Machine For Insulating Glass

Product Details:

Place of Origin:	China
Brand Name:	LIijiang Glass
Certification:	CE
Model Number:	LJTB01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 12000.00 - 11000.00
Packaging Details:	Container/wooden box
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	50sets/month

Contact Now

PLC Automatic Butyl Extruder Machine For Insulating Glass

Description

Dimension(LWH):	26006801100mm	Aluminum Spacer Width:	6A - 27A
Total Power:	220V 50Hz 1.5Kw	Air Source:	≥0.65MPa
PLC:	Germany SIEMENS
Highlight:	Automatic Butyl Extruder Machine , Insulating Glass Automatic Butyl Extruder , IG Butyl Extruder Machine

Automatic Butyl Extruder Machine Butyl Adhesive Coater for Insulating Glass
Hollow Glazing Processing Hot Sale on March Expo

Product Description

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

LJTB01 Butyl Extruder Machine

Main Technical Parameter

Item.		Spec.
filling aluminum frame max size		2000mm*2000mm
filling aluminum frame min size		300mm*250mm
molecular sieve diameter needed		0.5-0.9mm
Dimension		1300mm1100mm3650mm
Air source		≥0.65MPa
Total power		220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND

Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to know more details of Spec., please let us know.

Advantages & Features

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
