Product Details:
|
| Machine Name: | Sealant Gun Freezer | Using: | Storage Sealing Gun |
|---|---|---|---|
| Machine Type: | New | Warranty: | 1 Year |
| Temperature: | ﹣40-70℃ | Brand: | LIJIANG GLASS |
| High Light: | Glass Insulating Silicone Extruder Machine,Glass Sealant Dispensing Machine,Silicone Sealant Extruder |
||
Silicone Extruder Machine Sealant Dispensing Machine Insulating Glass Sealant
Insulating Glass Silicone Sealants Gun Freezer for store glue gun
1. Application of sealant gun
LJSGF01 Freezer LJSGF01
APPLICATION
LJSGF01 Freezer is used for short time refrigerating and heating the spreading gun of Sealant spreading machine, while you don’t need to wash and clear the spreading gun. The use of machine can reduce the waste of sealant for clean the gun, reduce the production cost, and greatly increase the work efficiency.
LJSGF01 Freezer is one of the necessary machines for Sealant spreading machine to produce insulating glass. It has the following features: cover small floor area, easy to move, reliability, easy service and so on.
Main feature
1. It is used for storing the gun when manual sealant gun stop working during the process of gluing insulating glass
2. Storing at low temperature, to prevent sealant solidify
3. Can be effectively reduced waste when cleaning the glue

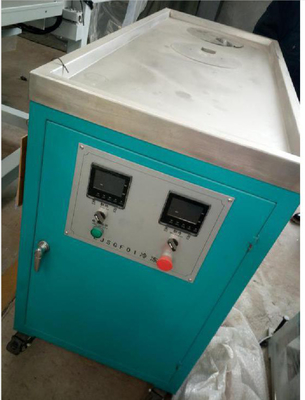

1,Machine's body
Heating and freezing switch, easy to operate.
2, Freezing & Heating
The freezer have two parts:one for heating,another one for freezing.
Main technical parameter
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |
3．Parameter of Silicone Sealants Gun
| Power | Voltage(V) | 380 |
| Frequency(Hz) | 50 | |
| Total Power | kW | 3.8 |
| Max. Heating Temperature | ℃ | 70 |
| Max. Refrigerating Temperature | ℃ | -40 |
| Weight | kg | ≈100 |
| Dimension | L×W×H(mm) | 1400×600×1000 |
| Capacity | L | 40 |
4．Electric System
Please refer to the Electric System and Connection Diagram.
5．Installation Environment
5.1 Power supply:AC380V±10V 3P+N+PE 50Hz
5.2 Environment Temperature:15～35℃
5.3 Site Requirement:Clean, no dust, land levelling.
Related products of LIJIANG GLASS
LJSKJ02 Semi-auto aluminum frame transfer machine
APPLICATION
LJSKJ02 semi-automatic aluminum frame transfer machine is the equipment necessary for producing aluminum spacer type insulating glass. After an aluminum frame is coated with butyl, hang on the hook of this machine that may convey it to another side automatically.
Model LJSKJ02 semi-automatic aluminum frame transfer machine consists of frame, driving system and electrical control part.
Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
LJGJ03 Molecular sieve filling machine
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
Main technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
LJQJ02 Aluminum spacing trip cutting machine
1.It is used for cutting aluminum strip
Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
LJZWB2020 Semi-automatic spacer bending machine
1. Can bend aluminum spacer with hand help.
| Max.bending size | 2500mm*2500mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤45s/frame |
| Air supply | ≥0.65MPa |
Insulating Glass Silicone Sealants Gun Freezer is used for short time refrigerating and heating the spreading gun of Sealant spreading machine, while you don’t need to wash and clear the spreading gun. The use of machine can reduce the waste of sealant for clean the gun, reduce the production cost, and greatly increase the work efficiency.
LJLX01 Freezer is one of the accessory machines for Sealant spreading machine to produce Insulating Glass. It has the following features: cover small floor area, easy to move, reliability, easy service, and so on.
Two pump sealant spreading machine
Sealant spreading machine was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or
two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Main feature of Two pump Sealant spreading machine:
1.Imported motor system to improve equipment efficiency
2.Imported sealant gun, stainless steel mixer
3.High pressure protect device
4.Mixed rate detector
5.Anti-back flow control structure 6.Important control parts adopt Korea Brand
6.Mixed rate detector can control the rare of two kinds of glue
7.Adopted Korea HASCO to improve equipment efficiency.
8.Sealant gun
We adopted the Sealant gun from Korea HASCO.
Stainless steel mix pipe and hybrid mandrel,easy to clean glue.
Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.
9.Glue bucket
Gluing evenly without bubbles.
Main technical parameter of sealant-spreading machine
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
