Vertical Automatic Insulating Glass Production Line 45m/Min

Vertical Automatic Insulating Glass Production Line 45m/Min

Insulating Glass Production Line Manufacturer

Insulating Glass Production Line Suppliers

Insulating Glass Production Line Price

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJBZ2025

Contact Us
Request A Quote
Vertical Automatic Insulating Glass Production Line 45m/Min
Vertical Automatic Insulating Glass Production Line 45m/Min Vertical Automatic Insulating Glass Production Line 45m/Min Vertical Automatic Insulating Glass Production Line 45m/Min Vertical Automatic Insulating Glass Production Line 45m/Min
Product Details
Voltage:
380V 50Hz
Power:
25KW
Dimension(L*W*H):
8500mm*3500mm*3940mm
Weight:
4000 Kg
Warranty:
1 Year
Highlight:

Insulating Glass Production Line Manufacturer

,

Insulating Glass Production Line Suppliers

,

Insulating Glass Production Line Price

Payment & Shipping Terms
Minimum Order Quantity
ONE SET
Price
$12,000 a set
Packaging Details
Wooden boxes and containers
Delivery Time
28 works day
Payment Terms
L/C, T/T
Supply Ability
two per month
RELATED PRODUCTS
Good price Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line online

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price
Good price Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm online

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price
Good price Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm online Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price
Good price Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing online

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price
CONTACT US
Contact Now
Product Description
Jinan LIJIANG Glass Automatic Insulating Glass Production Line Processing Machine

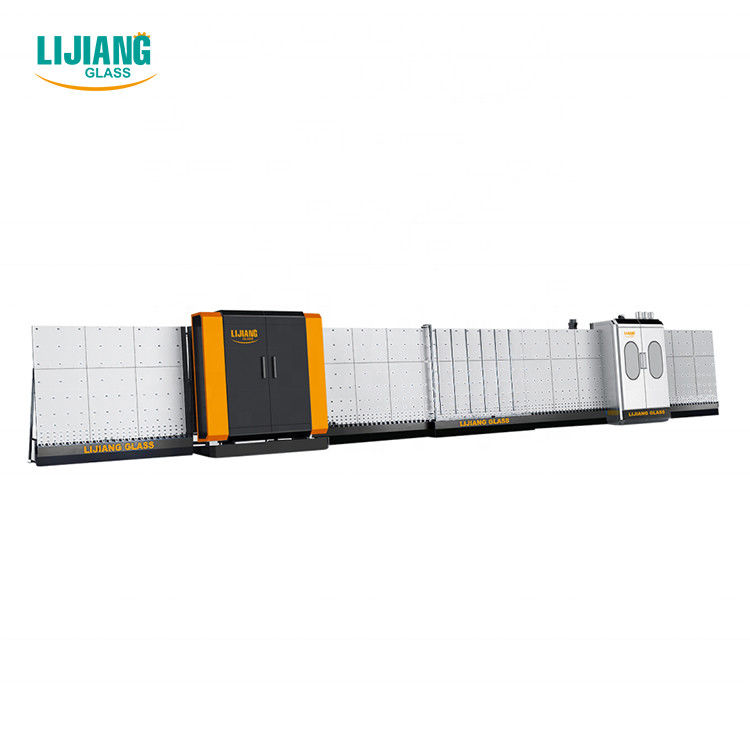

Product Name: Vertical Insualting Glass Production Line
Type: LJBZ2025 / LJBZ2535 Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm Flat glass thickness: 3~15mm (Customerized 3~30mm) Washing brushes: 6 pieces Max. thickness of insulating glass: 60 mm Total gas consumption: 1200 L/min Washing speed: 2~10 m/min Max. working speed: 45 m/min Min. glass size: 450*280 mm Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm Voltage: 380V 50Hz 3P
Vertical Automatic Insulating Glass Production Line 45m/Min 0
Check the Product Details or Inquiry Now
Vertical Automatic Insulating Glass Production Line 45m/Min 1
Product Name: Vertical Insualting Air-floating Glass Production Line
Type: LJBZ2025GF / LJBZ2535GF Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm Flat glass thickness: 3~15mm (Customerized 3~30mm) Washing brushes: 6 pieces Max. thickness of insulating glass: 60 mm Total gas consumption: 1200 L/min Washing speed: 2~10 m/min Max. working speed: 45 m/min Min. glass size: 450*280 mm Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm Voltage: 380V 50Hz 3P
