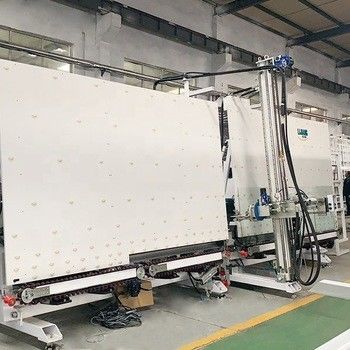

Automatic Silicon Sealant Sealing Robot For DGU Glass Sealing Machine

Large Image : Automatic Silicon Sealant Sealing Robot For DGU Glass Sealing Machine

Product Details:

Place of Origin:	China
Brand Name:	LIijiang Glass
Certification:	CE
Model Number:	LJTJ2030

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 50000.00 - 55000.00
Packaging Details:	Container/wooden box
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	50sets/month

Contact Now

Automatic Silicon Sealant Sealing Robot For DGU Glass Sealing Machine

Description

Max.glass Size:	2000*3000mm	Min.glass Size:	300*300mm
Glass Thickness:	Glass Thickness	Working Speed:	5-40m/min
Air Pressure:	0.5-0.7MPa	Squeeze Pressure:	32MPa
High Light:	Silicon Sealant Sealing Robot , Automatic Sealant Sealing Robot , Glass Production Line Sealer Robot

Good Quality Automatic Silicon Sealant Sealing Robot For DGU Glas Sealing Machine Hot Sale In 2022

Main feature

The whole machine adopts man-machine interface, the operation is more convenient and intuition with the simplified thinking design interface.

The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.

High automation, high efficiency, suitable for glass deep processing enterprise to use.

Can use two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.(optional)

Servo control system adopts world famous brand (Japan Anchuan), the performance is stable

Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning

The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.

Support three layer glass sealant

Automatic identification of glass size, glue, glue speed linear adjustment

Automatic angle correction function, appearance is beautiful

Alue supply system adopts Japan SMC cylinder, supply stability, the stability is good

Beautiful appearance generous, glass transfer smoothly no scratch, no pollution

Separate all equipped with manual functions, convenient adjustment

All size glass gluing fully at a time

It can glue the shapped glass , step glass .

Main parameters

			Max.glass size

			2500*4000mm

			Min.glass size

			300*300mm

			Glass thickness

			12-56mm

			Working speed

			5-40m/min

			Air pressure

			0.5-0.7MPa

			Squeeze pressure

			32MPa

			Voltage power

			380V 12kw

			Overall dimension

			8000*1500*2700mm

			Dimension

			10500mm*2200mm*2600mm

			Servo motor

			Japan Yaskawa

			Servo driver

			Japan Yaskawa

			I/O MODEL

			Japan Msystem

			CPU

			Japan Yaskawa

			Low voltage component

			France Schneider

			Frequency converter

			Japan Omron

			Guideway

			Taiwan Hiwin

			Switching power supply

			Taiwan MW

			Optoelectronic switch

			Korea Autonics

			Pneumatic component

			Taiwan Airtac

			Pneumatic component

			Japan SMC

			Sensor

			KOREA AUTONICS
