Jumbo Scale Double Glazing Production Line With Sealing Robot

Jumbo Scale Automatic Double Glazing Glass Processing Line With Sealing Robot With Online Gas Filling


Jumboo Size Automatic Double Glazing Glasss Processing Line With Sealing Robot ​

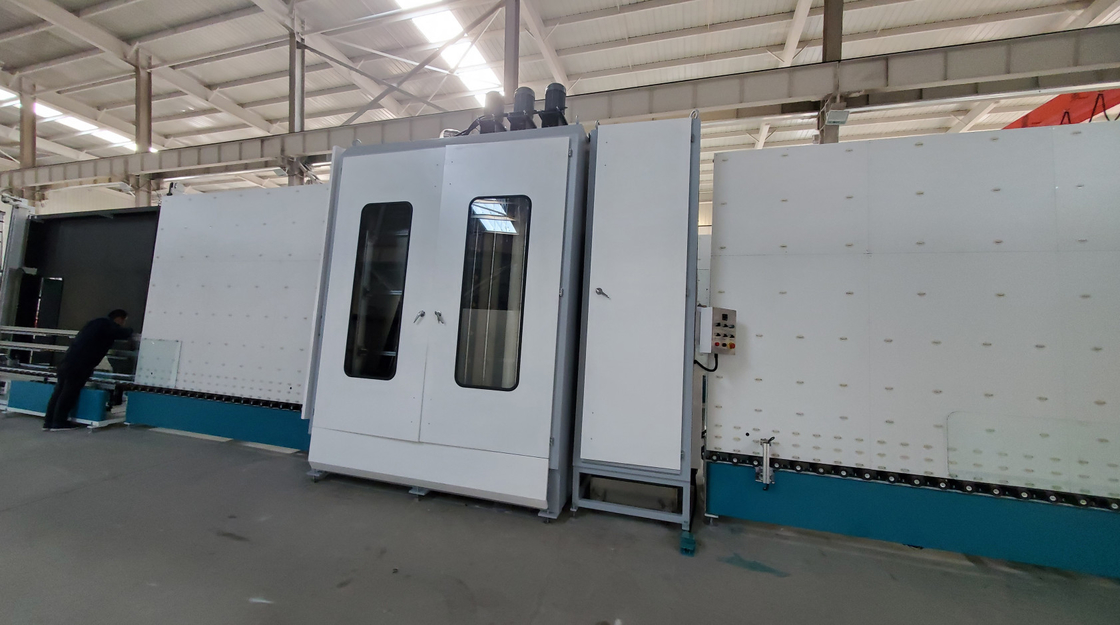

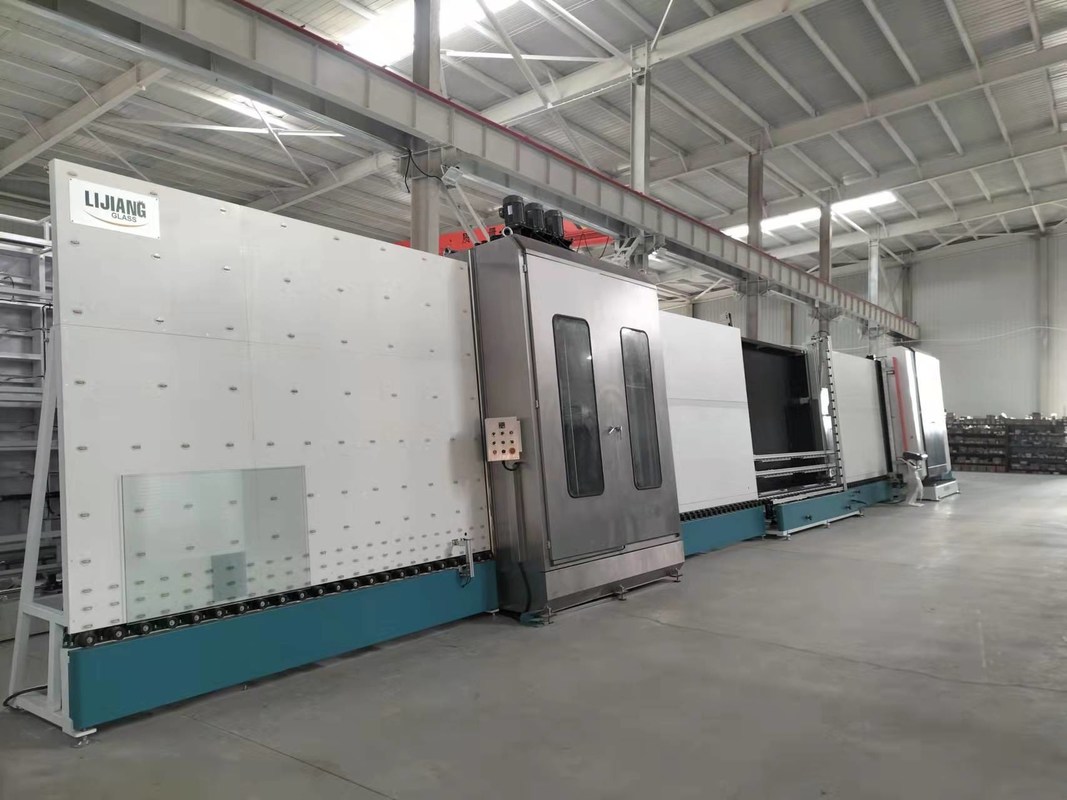

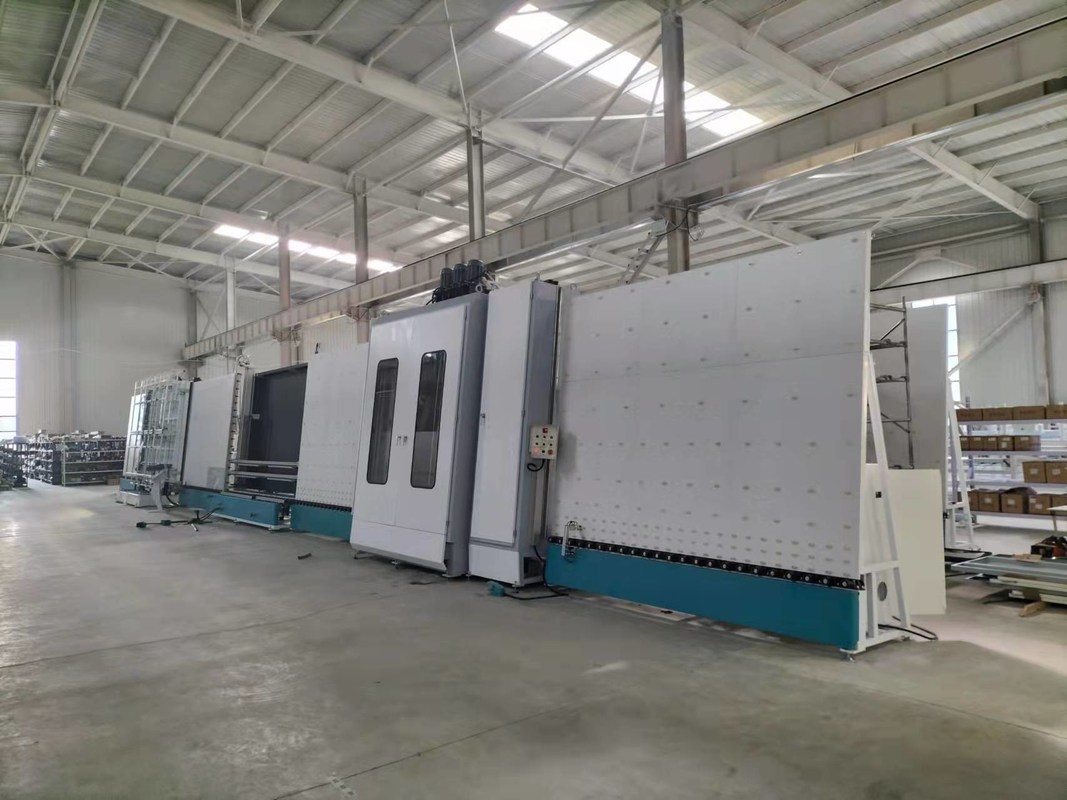

1. Vertical Insulating Glass Production Line

Details introduce of the LJBZ3370G
Main Features:

A sort of. German Siemens PLC control system, touch screen interface

b. Automatic recognition of coated glass and Low-E glass

C. 3 pairs of soft brushes for online and offline cleaning of Low-E glass

d. The washing machine adopts SS material and waterproof device

e. Water tank with automatic temperature control and water washing system

F. air heating system

G. Fan automatic start and stop settings

H. Noise reduction system

A generation. Washing speed online display

j. Intelligent intermittent work to save energy

k. Adjustable platen to keep the platen surface straight

l. Aviation plug connection

Meter. Suitable for producing triple insulating glass and special-shaped insulating glass


Transfer section

Coating detection mechanism, automatic detection of offline Low-e film
Washing machine

• Use 6 soft bristle brushes with 0.1mm bristles for cleaning low-e glass

• The new air knife adopts aluminum profile (Duckbill Air Knife), and the size of the air outlet is adjusted by the aluminum profile duckbill. This can reduce the number of adjustment screws, ensure that each screw is not loose, and avoid air knife resonance.

• Air knife can automatically adjust air knife width according to thickness

• Operation box with washing speed display for accurate display of washing speed

• Water tank automatic temperature control and water replenishment system

• European silencer system

• Stainless steel

Discharge section

• Storage glass
Inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass
Transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.
Pressing and filling section


Main feature:

• The glass is conveyed by conveyor belt, and the glass is pressed by servo motor

• Platen can be opened for easy maintenance

• The pressure plate structure is adjustable to ensure long service life

• Auto-filling with argon gas, the sealing effect is remarkable, and the argon gas content is higher

• Set up areas to fill different sizes of glass with subsequent sealing to reduce argon loss

• Gas values can be set and the process of filling gas is displayed on the touch screen

• Fast-response sensor for permanent control of the inflation process

• Gas concentration can reach more than 90%

• No need to drill holes in the bulkhead

• Standard gas is argon

07 discharge section

• Storage glass

• Can be connected to sealing machine


2. Vertical Insulating Glass Sealing Robot

Details introduce of the LJTJ3370


n. Japan Yaskawa servo control system, fully automatic and efficient

○. Automatic memory function, no need to repeatedly input parameters

Page. Automatic repair of glass corners with scrapers and rollers

ask. The machine has four sections and can store glass

River. Automatically measure glass size and glue depth, adjust sealing speed

s. Adopt synchronous belt, stable transmission and accurate positioning

Ton. Every automatic function is manually operated

you. Can be coated with double-layer glass, special-shaped glass, step glass, triple-layer glass

v. One set of booster pump controls two sets of sealants

w. Automatic timing glue removal function

X. Sealant mixing system with anti-clogging construction for easy cleanup
