Automatic Glass Washing Machine For Processing Insulated Glass

Automatic Glass Washing Machine For Processing Insulated Glass
Automatic Glass Washing Machine For Processing Insulated Glass Automatic Glass Washing Machine For Processing Insulated Glass

Large Image :  Automatic Glass Washing Machine For Processing Insulated Glass

Product Details:
Place of Origin: Jinan China
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBQX2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wrapping film
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month

Automatic Glass Washing Machine For Processing Insulated Glass

Description
Name: Glass Washing Machine Materials: Stainless Steel
Brushes: 3Pairsof Soft Brushes Glass Size: 2000*2500mm
Air Knife: Can Be Adjusted Brand: Lijiang Glass (Jinan, China)
High Light:

Soft Brushes Automatic Glass Washing Machine

,

Stainless Steel Automatic Glass Washing Machine

,

Soft Brushes Vertical Glass Washing Machine

Automatic Vertical Glass Washing and Drying Machine For Processing Insulated Glass

Automatic glass washing machine is vertical washing machine, used for washing many kinds of glasses, and low-e glass. The washing machine has three sections, 01 transfer section, 02 washing and drying section and 03 checking and transfer section. The washing machine has low-e film dection function, can detect the low-e film by coating detection mechanism. The brushes are all used soft brushes. The air knife can be adjusted according to different glass' sizes. Washing clearly with high speed. The washing speed can be displayed on the touch screen directly.

Details introduce of the glass washing machine

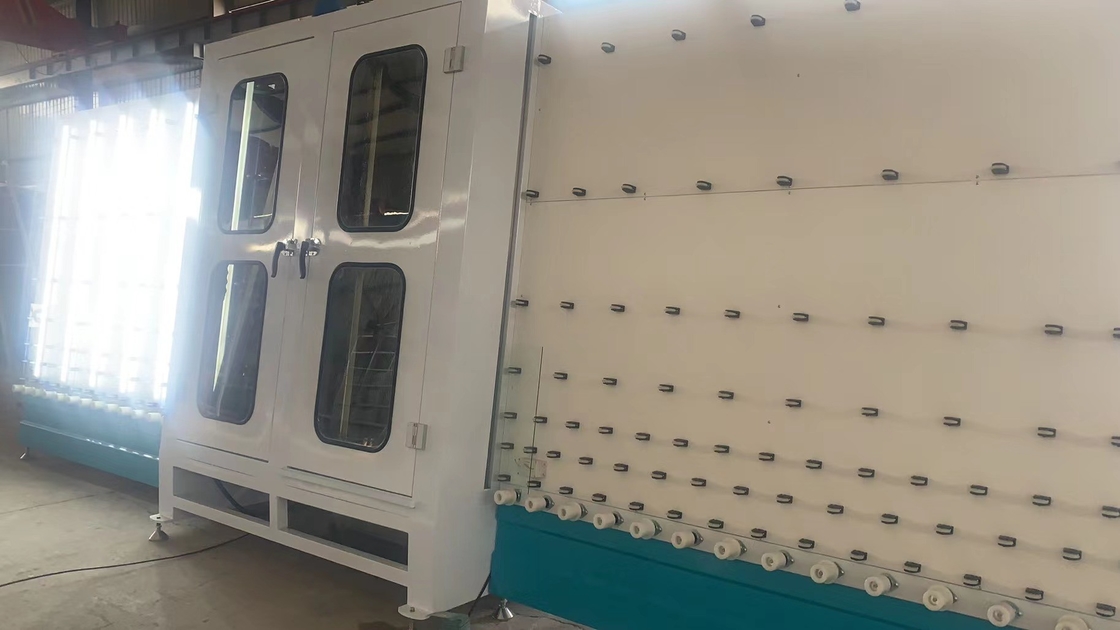

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

                                   Automatic Glass Washing Machine For Processing Insulated Glass 0

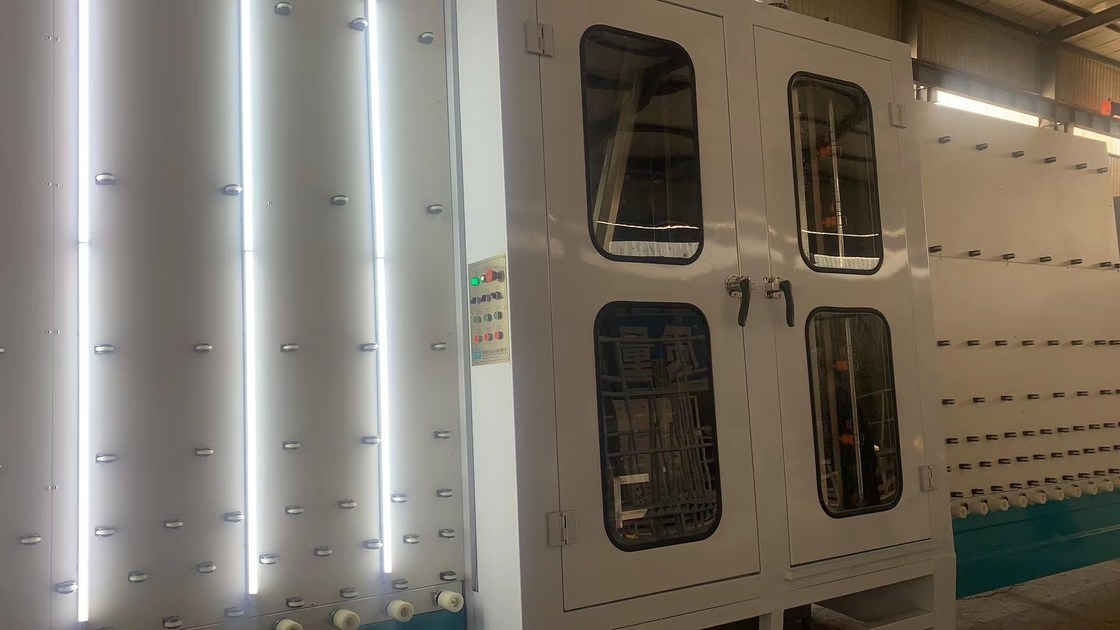

02 washing and drying machine

                        Automatic Glass Washing Machine For Processing Insulated Glass 1

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

03 checking and discharge section

• Using LED lights to check if the glass is washed clean or not, if the glass is not clean, it will alarm.

Main specification:

Max glass size : 1800*2000mm / 2000*2500mm/  2500*3500mm (can be optional)

Min glass size : 400*280mm

Glass thickness: 3 - 18mm

Glass with low-e film : Yes

Numbers of brushes : 6 pieces

Brushes' quality: soft brushes ( can wash low-e glass) with 0.1mm diameter

Brushes' motors: 3 motors

Air knife: adjustable

Washing speed : winter 6 - 7m,  sumer 8 - 10m

Front and rear Pushing wheels: with power

Washing speed : can be displayed on the screen

Warranty: one year

Machine brand: LIJIANG GLASS

Country of original: Made in Jinan, China



Max. glass size 2000mm*2500mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Total power 18kw



Related Product of LIJIANG GLASS

Horizontal Glass Washing Machine With 2500Mm Width Or 2600Mm Width



CP-2500A (12 m/min) glass washing machine technical parameters

1, USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

2, Structural characteristics:

  • Aluminum alloy assembled structure, no scrap concept, permanent use,

high efficiency, energy saving 70% efficiency;

2. The rest of the sheet metal parts are sprayed with advanced mechanical

paint or powder;

3. The rubber roller is made of vulcanized rubber with stainless steel shaft;

4. The washing part in contact with water is made of stainless steel;

5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);

8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;

9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass;

10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain;

11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.

12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

3, Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min

5. Main drive, brush speed regulation method: frequency control

6. Table height :900±25mm





7. Total power: 42KW(water-bearing wind heating: 15KW)

8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)

9. Power source: 380V 50Hz

10. Dimensions (length × width × height) : approximately 6260×4800×3100

11. Weight: about 3940kg



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg

4, Origin of motor and main accessories:

Main drive motor Zhejiang province
Brush motor Zhejiang province
High pressure air blower Guangdong province
The water pump Shanqing
brush Anhui province
Rubber roller Guangdong province
Frequency converter VEICHI/Rexroth
Electric parts Schneider

Automatic Glass Washing Machine For Processing Insulated Glass 2
