Jumbo Size Auto Double Glazing Glass Processing Line With Sealing Robot

Jumbo Size Automatic Double Glazing Glasss Processing Line With Sealing Robot
Jumboo Size Automatic Double Glazing Glasss Processing Line With Sealing Robot ​

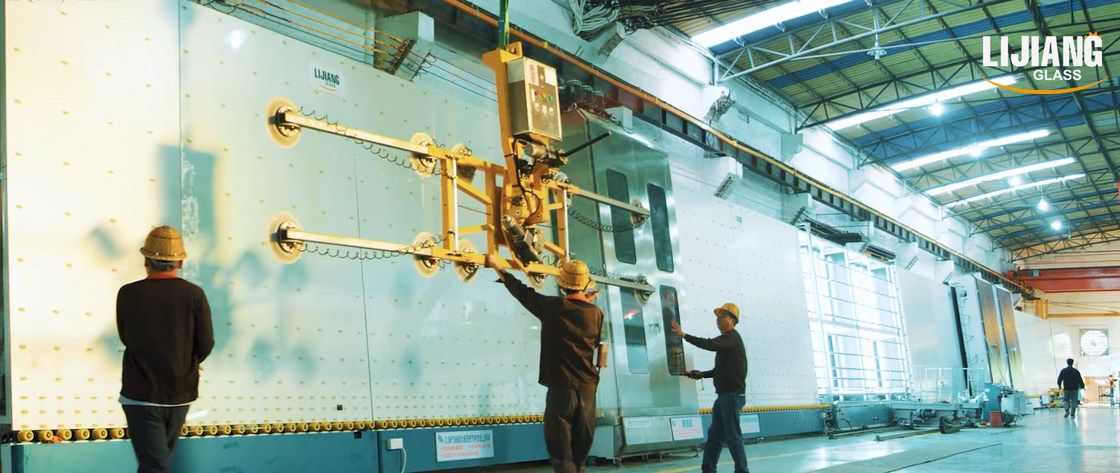

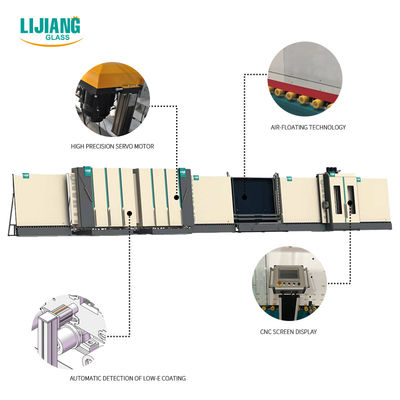

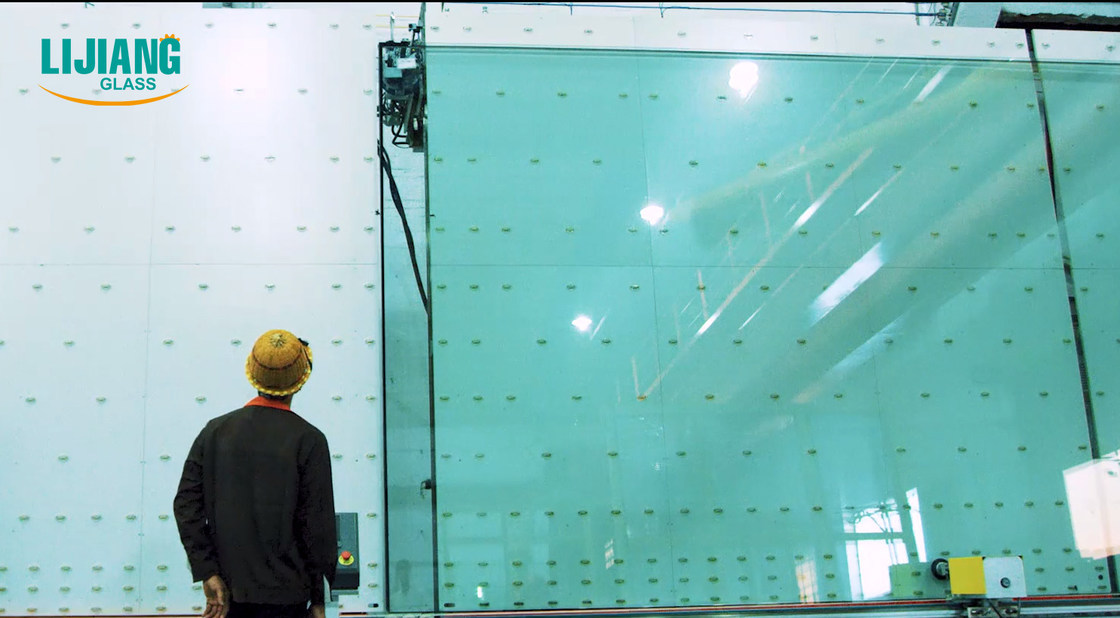

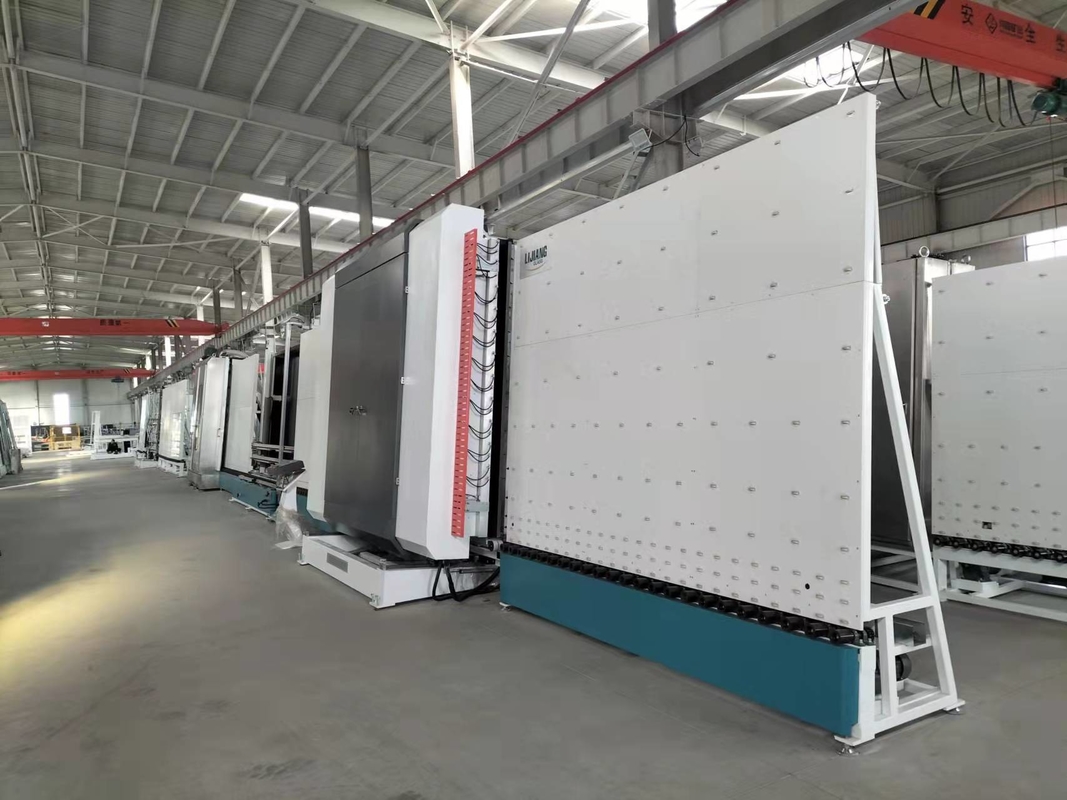

1. Vertical Insulating Glass Production Line

Details introduce of the LJBZ3370G
Main Features:

a. Germany Siemens PLC control system, touch screen interface

b. Automatic identification of coated and Low-E glass

c. 3 pairs of soft brushes can wash online and offline Low-E glass

d. The washing machine adopts SS material and waterproof device

e. Water tank with automatic temperature control and water washing system

f. Air heating system

g. Air Fan automatic start and stop setting

h. Noise reduction system

i. Online display of washing speed

j. Intelligent intermittent work, saving energy

k. Adjustable pressing board to keep the plate pressing surface straight

l. Connection mode of aviation plug

m. Applicable to produce triple IG and shaped IG

Transfer section

Coating detection mechanism, automatic detection of offline Low-e film
Washing machine

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material
Discharge section

• Storage glass
Inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass
Transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.
Pressing and filling section


Main feature:

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas
07 discharge section

• Storage glass

• Can be connected to sealing machine


2. Vertical Insulating Glass Sealing Robot

Details introduce of the LJTJ3370


n. Japan Yaskawa servo control system, full automatic and high-efficiency

o. Automatic memory function, no need to input parameters repeatedly

p. Automatically repair glass corners with scraper and roller

q. Machine has four sections, can store glass

r. Automatically measure glass size and glue depth, adjust sealing speed

s. Adopt timing belt, smooth transfer and accurate position

t. Every auto-function is with manual operation

u. Can coat double glass, shaped glass, step glass, triple glass

v. One set of booster pump controls two groups of sealants

w. Automatic timing sealant discharging function

x. The sealant mixing system adopts anti-blocked structure and is easy to clear
