Name: Automatic Insulating Glass Processing Machine IG IGU Glass
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJTJ2025
Price: 315.00 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Automatic Insulating Glass Processing Machine IG IGU Glass

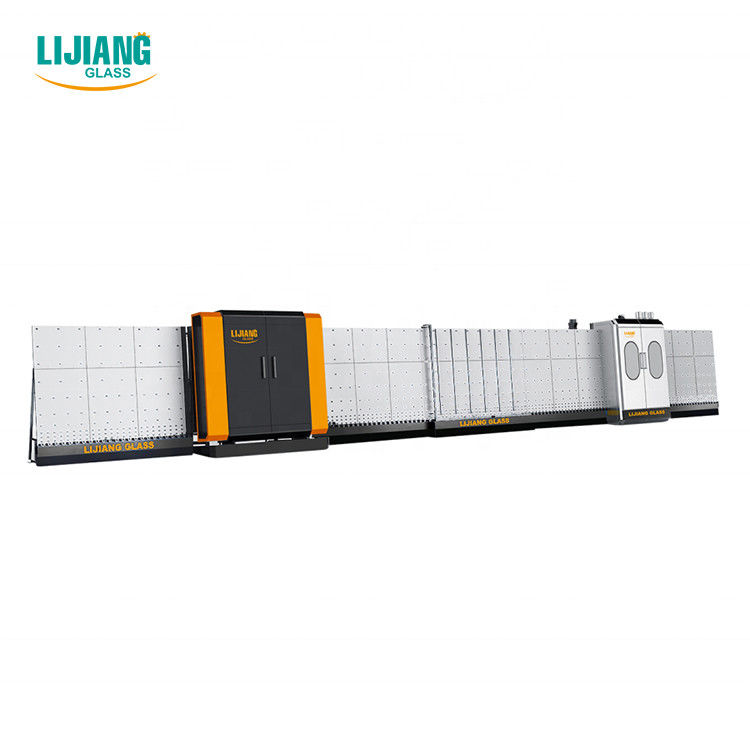

Automatic Insulating Glass Processing Machine

IG Insulating Glass Processing Machine

IGU Insulating Glass Processing Machine

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

Model Number:

LJTJ2025

Request A Quote

Product Details

Power:

15Kw

Dimension(L*W*H):

8000mm*1500mm*2700mm

Weight:

3700 Kg

Warranty Of Core:

1 Year

Highlight:

Automatic Insulating Glass Processing Machine

IG Insulating Glass Processing Machine

IGU Insulating Glass Processing Machine

Payment & Shipping Terms

Minimum Order Quantity

ONE SET

Price

CN¥188,442.00

Packaging Details

container

Delivery Time

12 work days

Payment Terms

L/C, T/T

Supply Ability

ten per month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

Automatic Insulating Glass Production Line Processing Machine
Common problems and solutions in the production of insulating glass

In the production process of insulating glass, the frequently occurring problems are: 1. When butyl rubber is extruded, burrs and not smooth 2. Butyl glue does not stick to aluminum strips and glass and loses its stickiness 3. After the second seal is completed, a cold flow of butyl rubber appears after some time 4. When butyl rubber is extruded, there will be glue breaking and blockage... Frequent problems in finished hollow glass products: 1. Fogging inside the hollow glass 2. Condensation of hollow glass 3. Insulating glass self-explodes... Jinan LIJIANG Glass focuses on providing high-quality production and processing equipment and services for the global insulating glass processing industry, and actively provides users with professional and intelligent summaries and solutions to common problems of insulating glass.
Product Name: Vertical Insualting Glass Production Line
Type: LJBZ2025 / LJBZ2535 Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm Flat glass thickness: 3~15mm (Customerized 3~30mm) Washing brushes: 6 pieces Max. thickness of insulating glass: 60 mm Total gas consumption: 1200 L/min Washing speed: 2~10 m/min Max. working speed: 45 m/min Min. glass size: 450*280 mm Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm Voltage: 380V 50Hz 3P
Check the Product Details or Inquiry Now
Product Name: Vertical Insualting Air-floating Glass Production Line
Type: LJBZ2025GF / LJBZ2535GF Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm Flat glass thickness: 3~15mm (Customerized 3~30mm) Washing brushes: 6 pieces Max. thickness of insulating glass: 60 mm Total gas consumption: 1200 L/min Washing speed: 2~10 m/min Max. working speed: 45 m/min Min. glass size: 450*280 mm Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm Voltage: 380V 50Hz 3P
Check the Product Details or Inquiry Now
