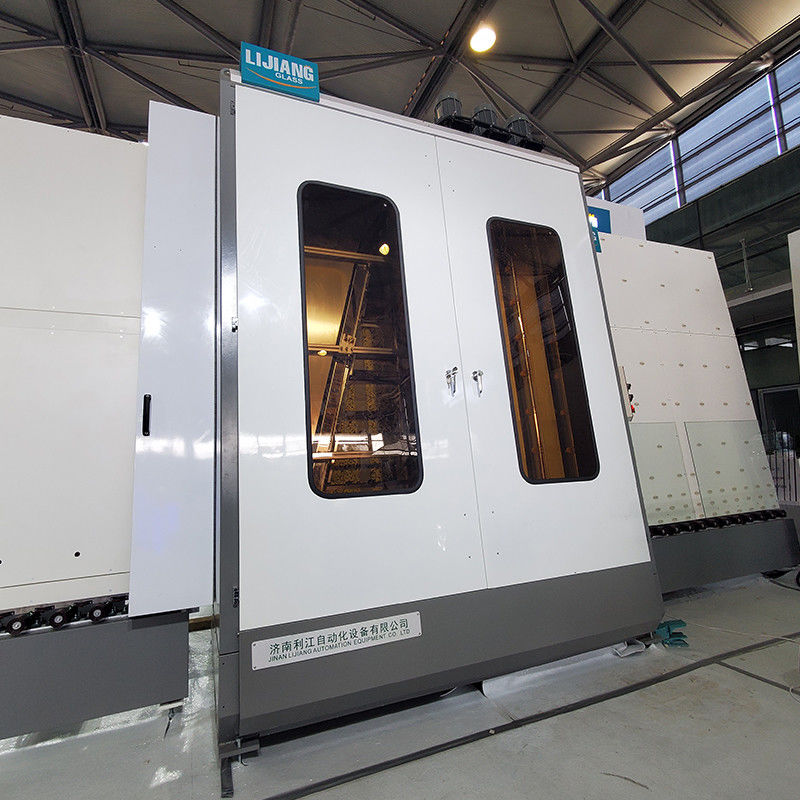

PLC Control Vertical Flat Glass Washing Machine 10m/Min

PLC Control Vertical Flat Glass Washing Machine 10m/Min
PLC Control Vertical Flat Glass Washing Machine 10m/Min
PLC Control Vertical Flat Glass Washing Machine 10m/Min PLC Control Vertical Flat Glass Washing Machine 10m/Min PLC Control Vertical Flat Glass Washing Machine 10m/Min

Large Image :  PLC Control Vertical Flat Glass Washing Machine 10m/Min

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJQX2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SETS
Price: 12000 USD
Packaging Details: Container
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 20 SETS/MONTH

PLC Control Vertical Flat Glass Washing Machine 10m/Min

Description
Product Name: Glass Washing Max Glass Size: 2000mm*2500mm
Washing Speed:: 2-10m/min Insulating Glass Thickness: ≤40 Mm
Power: 3P 380V 50Hz
High Light:

10m/min Vertical Insulating Glass Production Line

,

PLC Vertical Flat Glass Washing Machine

,

10m/min Vertical Flat Glass Washing Machine

Vertical Flat Glass Washing Cleaning Machine Low-E Glass

Vertical Insulating Glass Production Line LJBZ2535G



Main Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.

• High-speed IG processing line

• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.

• Installing two spacer frames for two IGU by one workman.

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.

• From transfer part to pressing part, each part is divided.

• Suitable for mass production in a factory, Ultra-fast speed.



PLC Control Vertical Flat Glass Washing Machine 10m/Min 0



Main Features:

• Adopt SIEMENS control system to maintain stable performance

• PLC control system, touch screen interface

• Automatically adjust the adhesive depth on the digital display

• Use servos to control system, modular and overlay capabilities

• Applicable to the manufacture of stepped IG, triple IG, and molded IG

• Two IGUs can be created at once and filled with argon gas (optional)

• Minimum and maximum glass sizes are optional

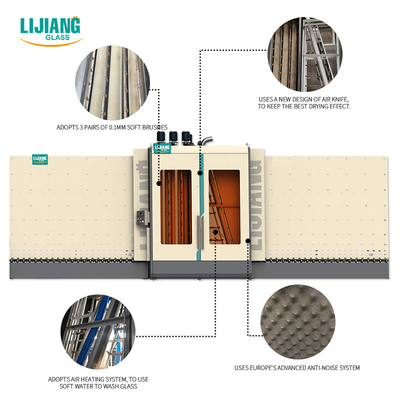

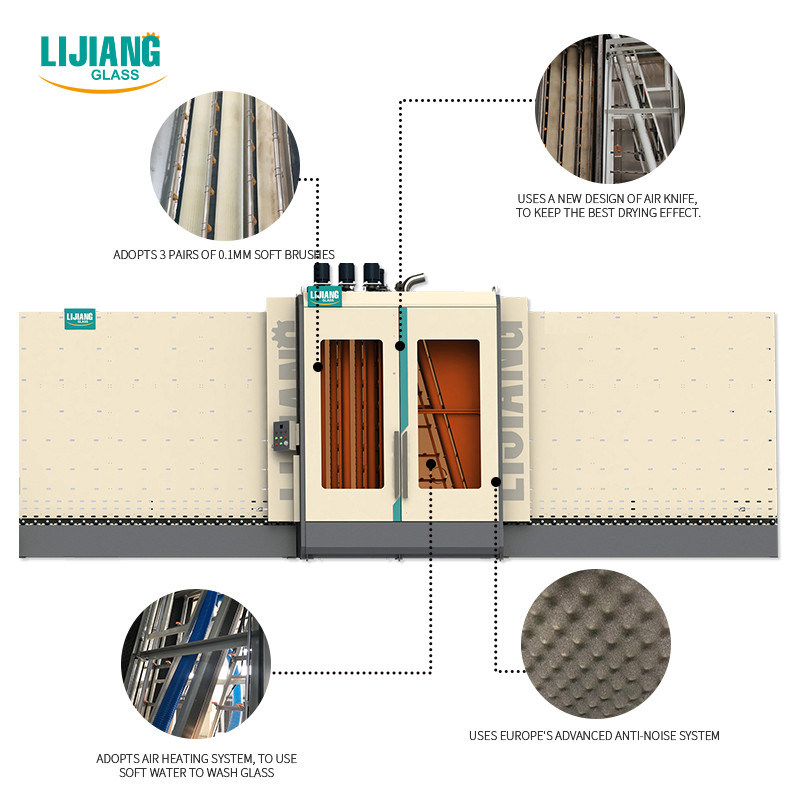

Main feature:

• Use 6 soft brushes

• Cleans online and offline low-e glass and automatically recognizes Low-e film

・ The cleaning part adopts a design with an upper and lower layer structure

• Adopts variable frequency fan, energy efficient and excellent cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Use intelligent intermittent energy-saving work methods

• Hierarchical cleaning system

• Automatic temperature control of water tank, water supply system

• European silencer system

• 304 stainless steel material



PLC Control Vertical Flat Glass Washing Machine 10m/Min 1



Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG

  • Filling argon gas automatically

• Automatically fills the argon gas in the press plate with the correct gas concentration

• When filling molded IG, the rectangular size inflatable front must be 450mm (length) and 280mm (height).

• No need to drill holes in the spacer frame

• Standard gas is argon gas

• Fast reaction sensor for permanent control of gas filling process

• Automatically set gas data and display the data on the screen

PLC Control Vertical Flat Glass Washing Machine 10m/Min 2

Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg
