Name: Automatic Hot Melt Insulating Glass Production Line Sealing Coating
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJTB01
Price: 12,000.00 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Automatic Hot Melt Insulating Glass Production Line Sealing Coating

Coating Insulating Glass Production Line

Sealing Insulating Glass Production Line

Hot Melt Insulating Glass Production Line

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

Model Number:

LJTB01

Request A Quote

Automatic Hot Melt Insulating Glass Production Line Sealing Coating

Product Details

Dimension(L*W*H)::

2600*680*1100mm

Aluminum Spacer Width::

6A - 27A

Speed:

5-47m/min

Highlight:

Coating Insulating Glass Production Line

Sealing Insulating Glass Production Line

Hot Melt Insulating Glass Production Line

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 13000.00 - 11000.00

Packaging Details

Container/wooden box

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

50sets/month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

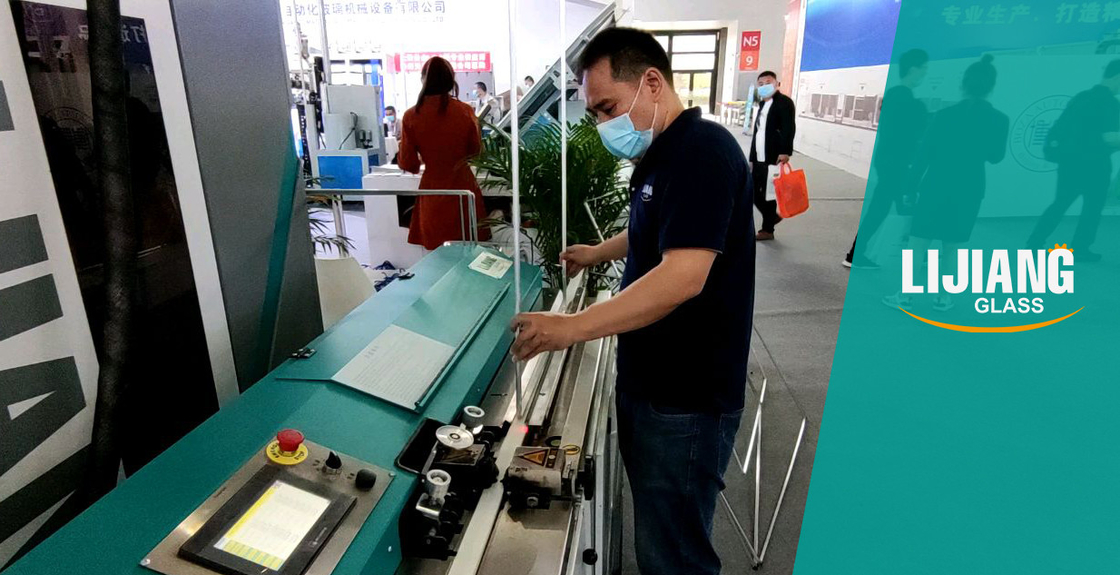

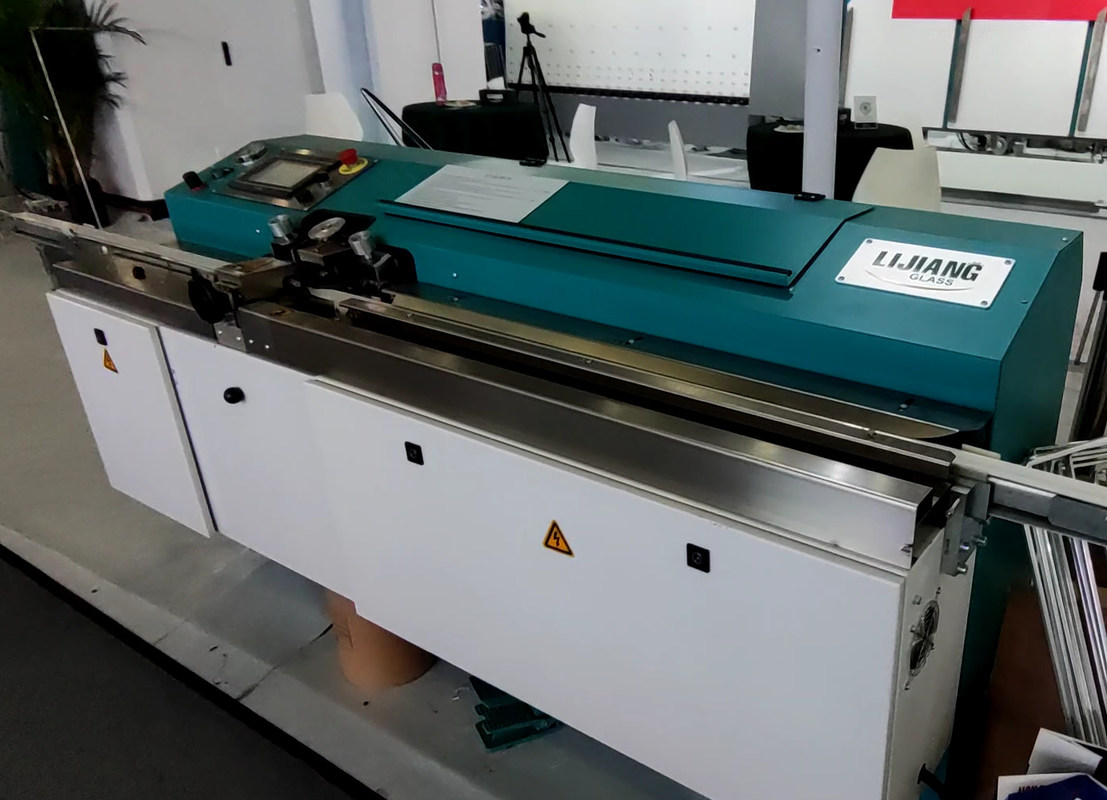

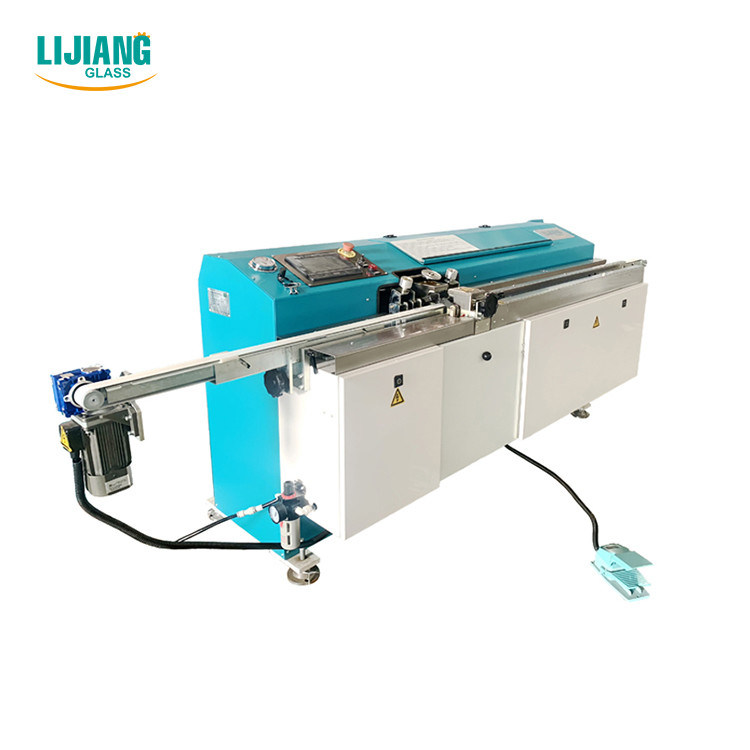

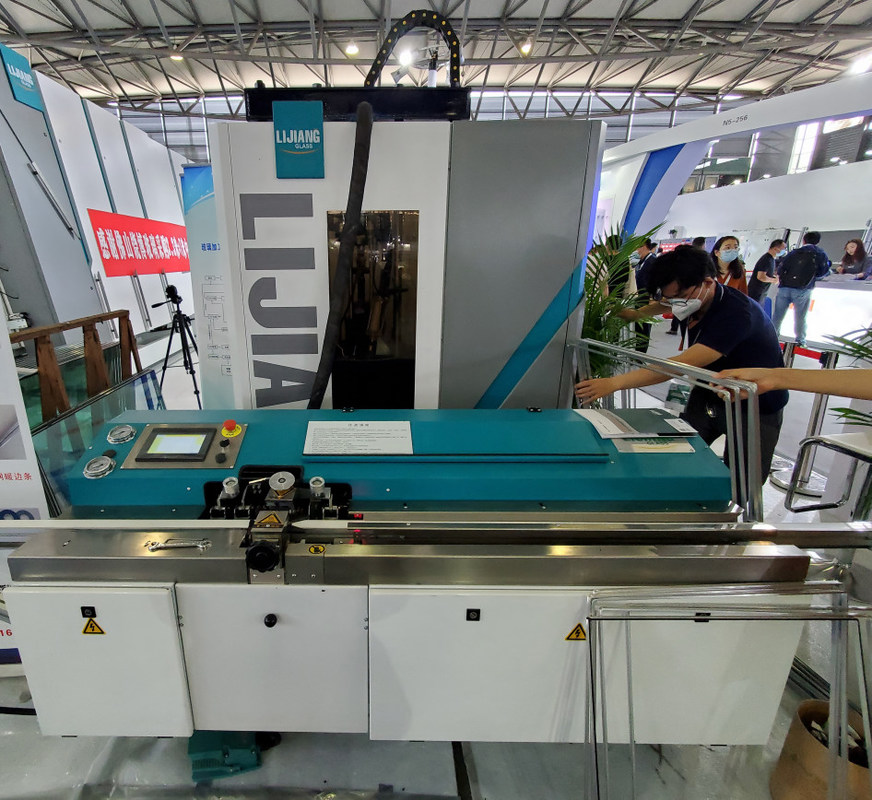

Automatic Hot Melt Extruder Butyl Rubber Sealing Coating Machine for Insulating Glass Hollow Glass Double Glazing Proces

Double glass precessing machine Automatic butyl extruder coating machine

Automatic butyl extruder coating machine is used for coating Aluminum spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.Butyl rubber coater is used for coating non flexible spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	415v 50 hz 3 phrase
Dimension	2950×890×1004mm(L×W×H)
Weight	750kg

* PLC control system, touch screen interface

* Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

* The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

* Fast preheat, improve work efficiency

* with preheating function

* With exhaust inflatable function, improve the quality of sealing and save time for plastic

* Quickly coating speed,can up to 47m/min

* Saving the amount of glue

Clear interface, Simple operation, Smart touch screen,Updated programming.

Adopt Germany’s Harvey valve, more stable performance.

Butyl rubber coater can automatically detect the width of spacer strip

The time of glue spraying and breaking is precisely controlled by PLC.

Automatically alarm system, reminding adding butyl.

Glue cylinder Adopt the upright structure, easy to change butyl.

With exhaust and inflatable function,improve coating quality and save

With preheating function,Fast preheat,improve work efficiency
