Name: Two Component Seal Machine Sealant Spreading Machine For Insulating Glass
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJST02A
Price: 10,750.00 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Two Component Seal Machine Sealant Spreading Machine For Insulating Glass

Two Component Seal Machine

Two Component Sealant Spreading Machine

Insulating Glass Sealant Spreading Machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

Model Number:

LJST02A

Request A Quote

Two Component Seal Machine Sealant Spreading Machine For Insulating Glass

Product Details

Dimension(L*W*H):

1100*950*1630mm

Weight:

3700KG

Power:

0.1KW

Highlight:

Two Component Seal Machine

Two Component Sealant Spreading Machine

Insulating Glass Sealant Spreading Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 9500.00 - 12000.00

Packaging Details

Container/wooden box

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

50sets/month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

Two Component Seal Machine Sealant Spreading Machine For Insulating Glass 0

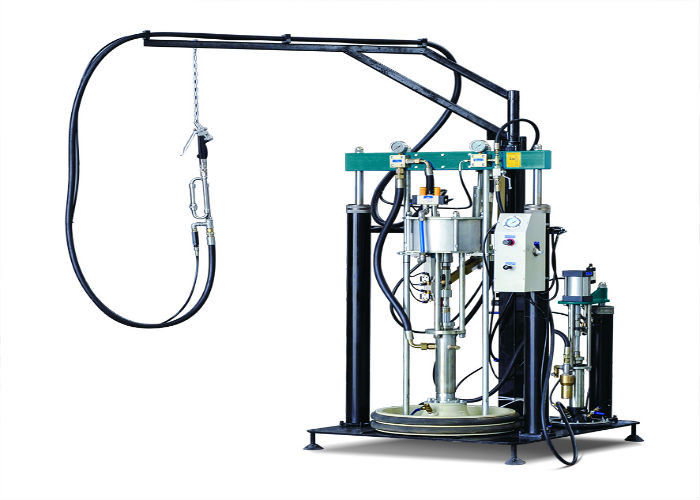

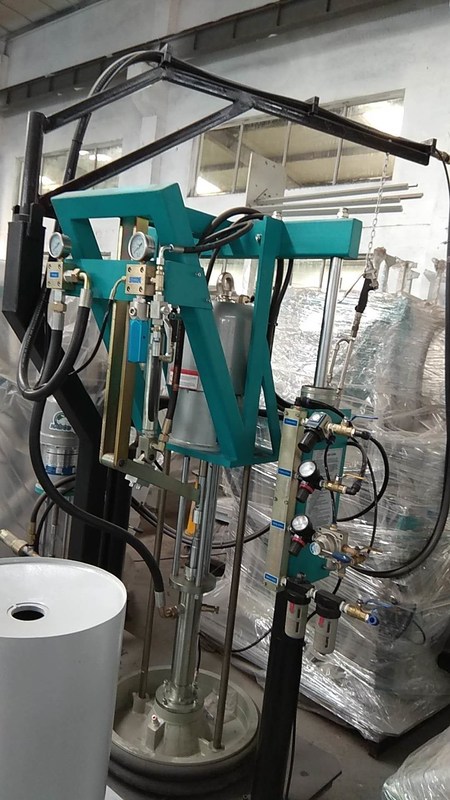

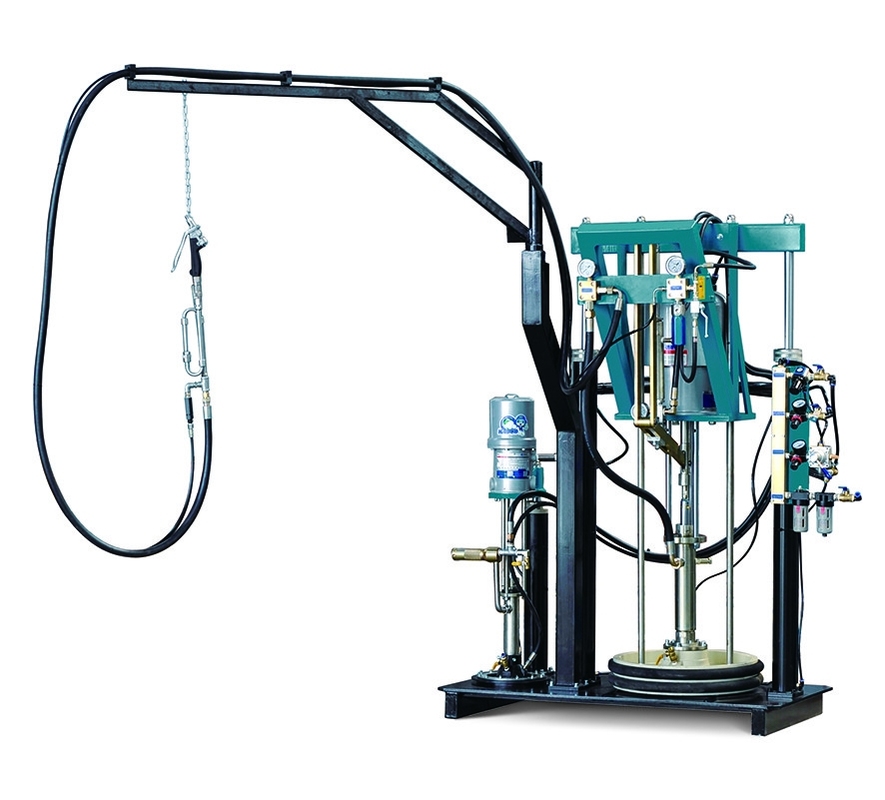

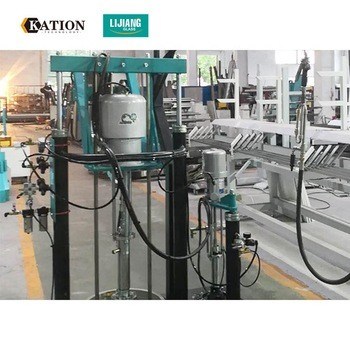

Two-component Sealant-Spreading Machine LJST02A

The equipment is designed with foreign and domestic advanced technology. This is used to disperse two-component polysulfide glue or Two-component silicone structural adhesive suitable for aluminum insulating glass or curtain wall glass. A and B pumps use the Korean brand HASCO, so you can ensure reliable work results. Special and convenient mixing device can ensure high-quality mixing of two-component polyvulcanized rubber and / or two-component silicone structural adhesive. The equipment has the characteristics of uniform mixing, continuous and stable extrusion rubber, good dispersion effect and high production efficiency.

1.Imported motor system to improve equipment efficiency .2.Imported sealant gun, stainless steel mixer.

3.High pressure protect device .
4.Mixed rate detector.

5.Anti-back flow control structure .
6.Important control parts adopt Korea Brand.

7.Mixed rate detector can control the rare of two kinds of glue.

			Working air pressure

			0.3-0.6MPa

			Sealant spreading pressure

			15-20MPa

			Sealant volume

			4L/min

			Diameter of A/B sealant

			570mm/280mm

			Sealant spreading air pressure ratio

			50:1

			Mixed rate

			6:1-14:1

			Air supply

			Flow 0.8m3/min

			Air pressure

			≥0.8MPa

			Overall dimension

			1100*950*1630mm

			Weight

			490kg

			Capacity of the glue drum

			200-300 ml/200 kg

Company Overview

Kation-Tech founded in 2009, specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well.So far, we have independently produced Insulating Glass Production Line,Insulating Glass Sealing Robot, Spacer Bending Machine , Desiccant Filling Machine, Butyl Extruder Machine,Glass Cutting Machine, its technology and quality have reached the highest leading level in China. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD is our factory. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.

Tags：

double glazing production

glass processing machines

insulating glass line

Jumbo Size Double Glazing Production Line With Sealing Robot Argon Gas Filling Online

Get Best Price

Jumbo Size Double Plate Pressing Insulating Glass Energy Saving Inflatable Sealing

Get Best Price

Video

Automatic Double Glass Insulated Glass Production Machines 3 - 15mm

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Automatic Butyl Extruder Machine For Insulating Glass Processing

Get Best Price

Send your inquiry directly to us

Working air pressure	0.3-0.6MPa
Sealant spreading pressure	15-20MPa
Sealant volume	4L/min
Diameter of A/B sealant	570mm/280mm
Sealant spreading air pressure ratio	50:1
Mixed rate	6:1-14:1
Air supply	Flow 0.8m3/min
Air pressure	≥0.8MPa
Overall dimension	11009501630mm
Weight	490kg
Capacity of the glue drum	200-300 ml/200 kg
