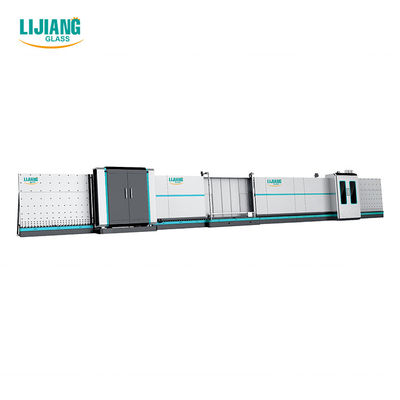

Vertical Automatic Insulating Glass Production Line For 1800 2500 Combination Glaze Plate

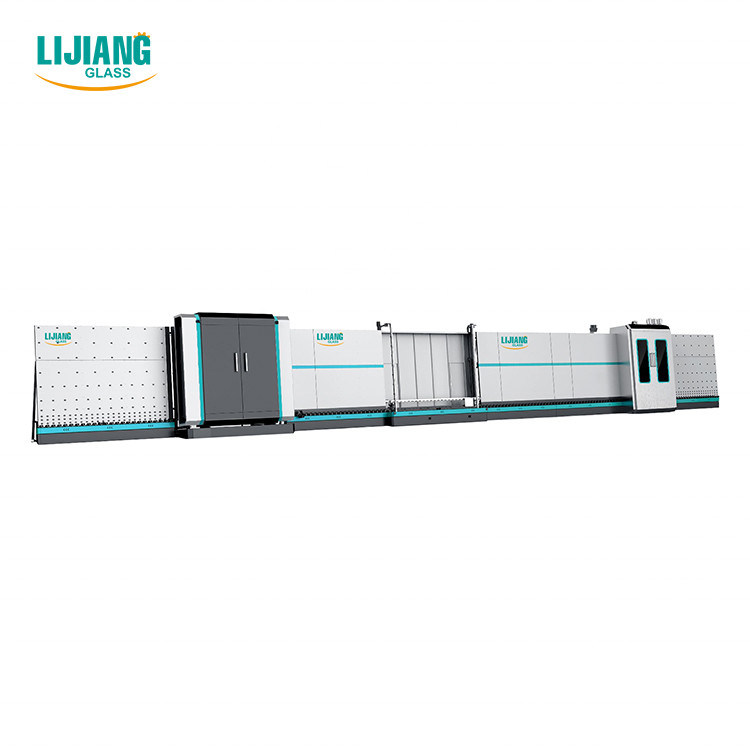

Large Image : Vertical Automatic Insulating Glass Production Line For 1800 2500 Combination Glaze Plate

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan LIJIANG Glass
Certification:	CE & ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable Price
Packaging Details:	Wooden Cases Package and Container Transfer
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Vertical Automatic Insulating Glass Production Line For 1800 2500 Combination Glaze Plate

Description

Name:	Automatic Vertical Insulating Glass Production Line	Application:	Double Glazing Producing
Max Glass Size:	2000mm*2500mm	Min Glass Size:	450*280mm
Washing Speed:	2-10m/min	Insulating Glass Thickness:	50mm
Glass Thickness:	12-50mm	Color:	Customers' Requirement
Highlight:	Automatic Insulating Glass Production Line , Insulating Glass Production Line Vertical , 2500 Insulating Glass Production Line

Vertical Automatic Insulating Glass Production Line Machinery for 1800 2500 Automatic Combination Glaze Plate Pressure on Sale

Product Description

LJBZ2535 Automatic Insulating Glass Production Line

The whole LJBZ2535 Insulating Glass Production Line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Optional functions:

•Step glass with optional edges

•Shaped glass

•Filling argon gas automatically

•Air-floating technology to transfer glass

•PLC control system, touch screen interface

•Using Siemens servo motors

•Applicable to produce double glass, triple glass

To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

The second part: the washing and drying section.

In this glass cleaning area, there are three sets of delicate brushes and four sets of water splash for washing and drying glass. The air blade is float planned, what part consistently keeps the right and appropriate distance between the glass and air blade in the press and configuration area. ( Entirely as same as the LISEC ) The exchange wheel from this segment: The front and back move wheel is all-bearing moved, all effectively moved. Whatever the glass size is large or little, it generally ensures the glass go through without a hitch. ( Entirely as same as the LISEC ) The hub and heading of brushes take on all tempered steel, which could keep the machine can washing balanced out and utilizing for quite a while. The entire drying machine utilizes a sound protection plan, which could diminish commotion contamination viably.

The 6th parts: the pressing and gas filling section.

In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC)  Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.

Advantages & Features

Benefits & Advantages

Take on SIEMENS control framework, keep stable execution PLC control framework, contact screen interface Automatically change the profundity of paste with advanced showcase Using servo to control framework, particular capacity, superposition work Applicable to deliver ventured IG, triple IG and molded IG Two bits of IGU can be made and loaded up with argon gas in a single time (Optional) Min and Max glass sizes can be discretionary European plan idea, basic and shrewd activity; the world-well known brand of center parts, guarantee stable activity and long assistance life; It is intended for handling top notch glass, for example, intelligent glass, Low-E glass, intelligent glass and safety glass; Large glass handling size, different models and customization accessible; Large creation limit, yield 1,000pcs in working days; It can be utilized for two-layer, three-layer, cushion and glass with sporadic shape; Automatic air gas filling during the glass paper gathering process.

The coating inspection

To stay away from the Low-E glass or Coated glass put converse side and Leave wheel checks or scratch low-e Coating, Jinan LIJIANG Glass utilizes covering assessment - metal film conductive. (others providers from China, generally utilize the photoelectric recognition, and it's in reality minimal difficult to perceive for higher straightforward)

The pressing box uses the high precision servo motor.

The servo engine could be precisely determined the thickness of the Insulated glass and aluminum spacer. Contrasted and conventional water powered station. And furthermore, it could ensure the exact working tension and shield the glass from harm, simultaneously speeding up.

It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.

It has 6 brushes which are on the whole delicate brush, could wash and dry more distinction types and sizes ofr low-e glass, level glass, treated glass, etc. It has a breadth of under 0.1mm fibers, never harm glass, particularly for low-e glass cleaning.

The whole washing machine all uses #304 stainless steel materials

The entire washing and drying segment take on #304 tempered steel materials, including the plate and inside spare parts. The thickness plate can up to 4mm and the inside plate can be 8mm.The gear execution is better and administration life is significantly longer than other suplliers.

Air floating technology - Optional

The front and back move wheel are completely moved, all effectively moved. It can ensure the huge and thick glass go through without a hitch. The gear takes on the new air – drifting innovation utilizes air to help glass and move glass. At the point when glass is washed plainly from the clothes washer, utilizing air to ship the glass, it will not be debased. Guarantee that the delivered protecting glass is of the greatest quality.

The first one to use adjustable points to ensure that the platen will never deform.

The entire gear takes on CNC innovation into the squeezing board. It was planned the customizable focuses inside the squeezing load up to keep the backplate straight constantly. In China, with the exception of L IJIANG, no more others providers could ensure that the squeezing load up will stay vertical and straight all the time later utilized north of 10 or 20 years.

Main Technical Parameter

Item.	Spec.
Max.glass size	2500mm*4500mm
Min.glass size	280mm*400mm
Glass thickness	3-15mm / 19mm
Insulating glass thickness	50mm / 60mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	3P 380V 50HZ 40KW
Dimension	2350035003700mm
Weight	6500kgs

Name	Brand
Servo motor	Germany Simens
Servo driver	Germany Simens
Servo motor	Germany Simens
Servo motor	Germany Simens
PLC	Germany Simens
Low voltage component	Germany Simens
Frequency converter	Germany Simens
Switching power supply	Taiwan MW
Optoelectronic switch	Korea Autonics
Pneumatic component	Taiwan Airtac
Pneumatic component	Taiwan Airtac
Touch screen	Taiwan Wenview
Travel switch	Taiwan (TEND)
Relay	Japan Omron
Button and indicator light	French Schneider
