Vertical Insulated Glass Glue Sealing Machine Two Sealants Pumps Coating

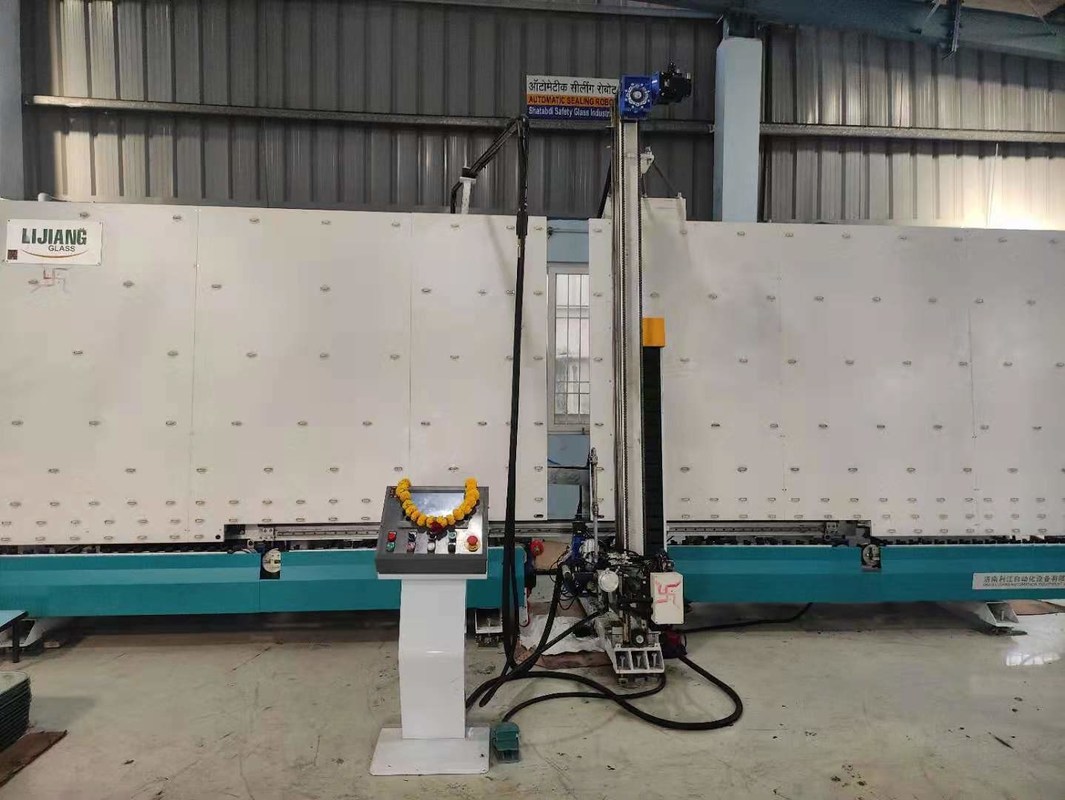

Insulating Glass Sealing robot

Application

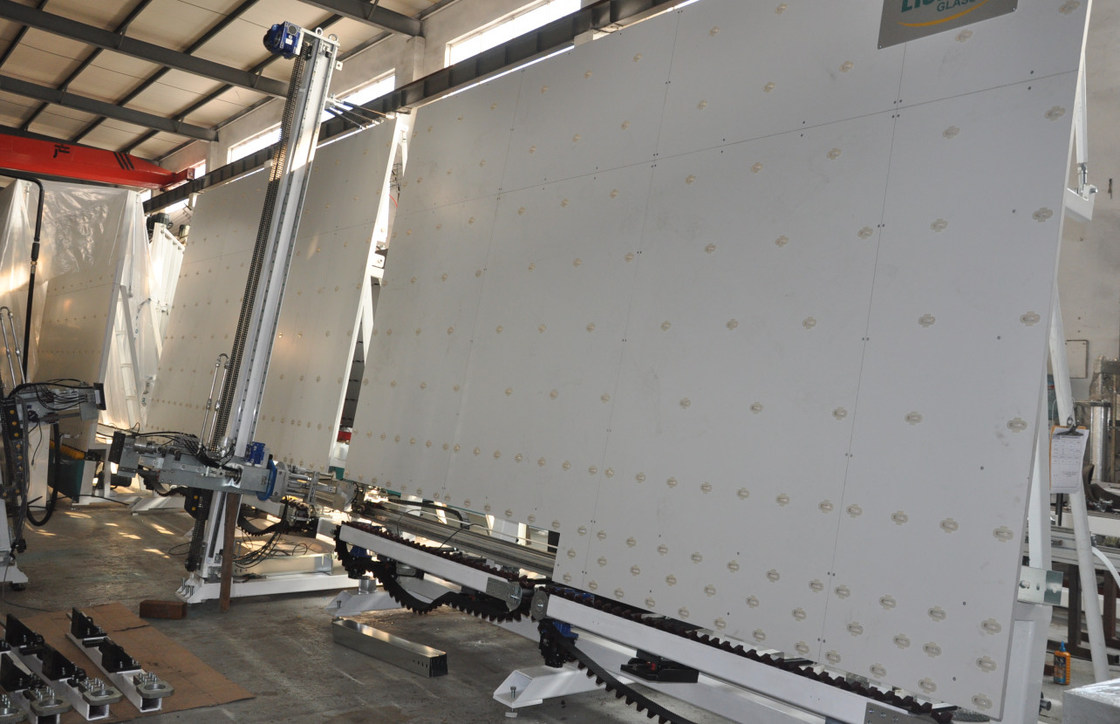

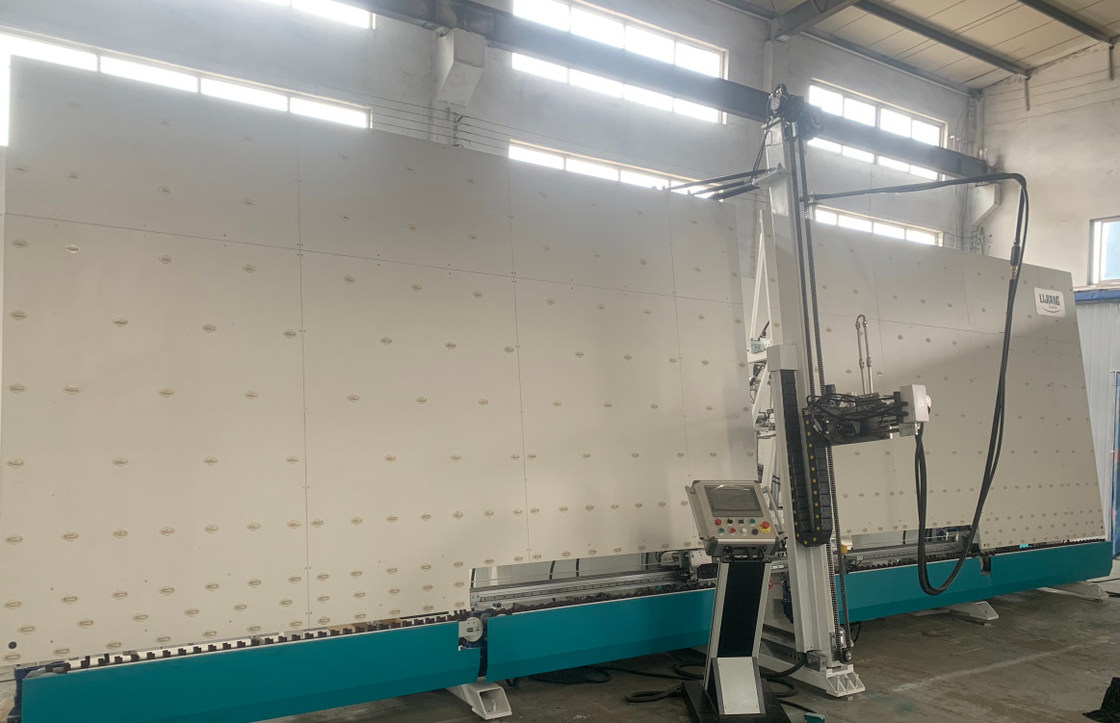

LJTJ2535 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.

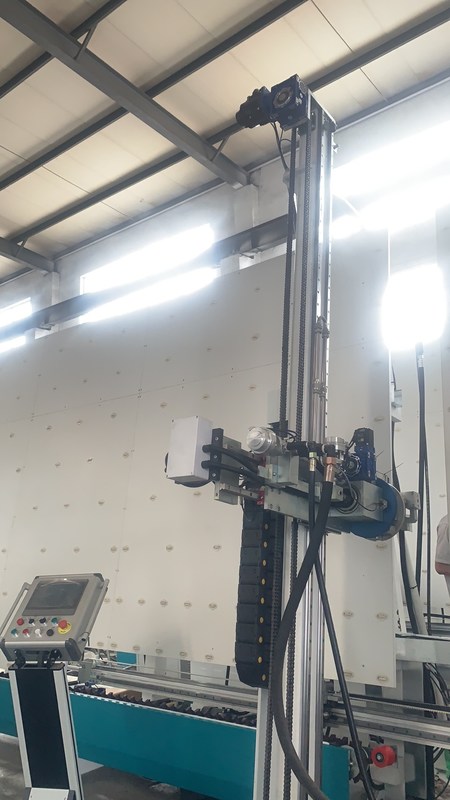

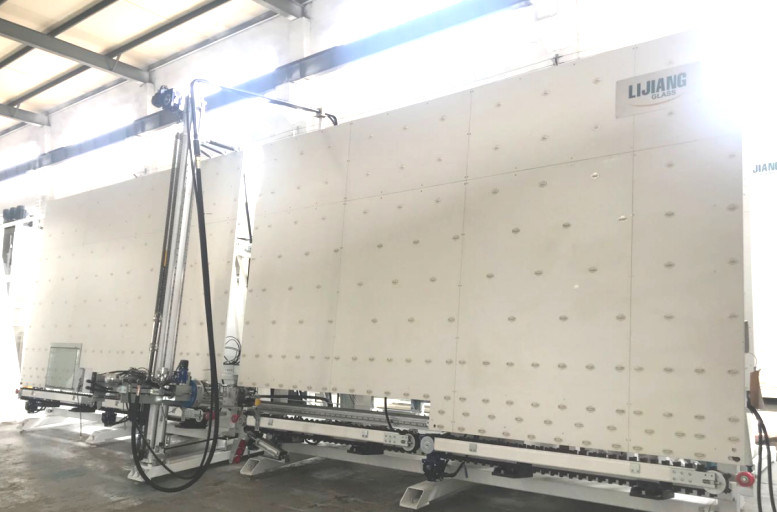

Mechanical head is placed in front

Achieve the real connection with IG line when doing stepped glass.

Storage Function

It can store three pieces of insulating glasses on the three belts ( less than 1.8m.), it need 2 more sets servo motors, control systems.

Eight Servos

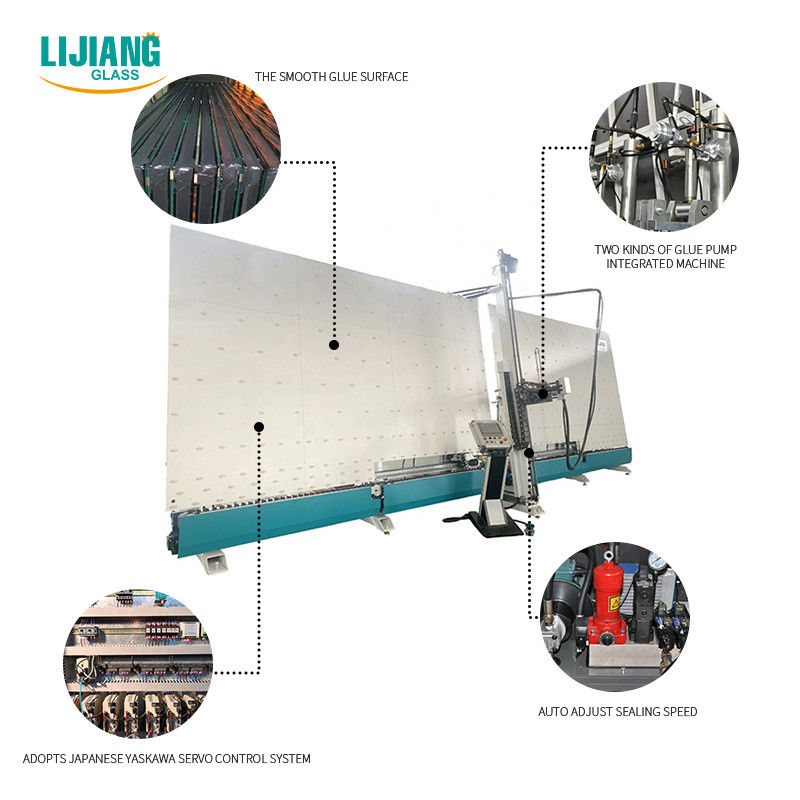

The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.

Single Glue System

Equipped with single A component and single B component.

Double Glue Systems(option )

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.

Double /triple Shaped / stepped glass Function (Optional)

With the development of updating technology, the sealing robot can coat eight shaped glasses according to the glass market.(but it’s optional function , before order this function should confirm manufacturer)

Electric proportional valve: the rubber nozzle fit the glass gap is more perfect and stable.

Pump A &Pump B

Use Taiwan-Airtac

The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner

Synchronous belt transmission

to make the glass being transferred smoothly with accurate positioning

Electric and compressed air switch valve: Ensure electrical automatic switch, stable performance and uniform coating.

n Technical data

• Main components list

Operating notes:

• Max. glass size (mm):2500(H)*4000(L)
• Min. glass size (mm):300(H)*400(L)
• Extruding speed :100mm~500mm/s
• Extruding depth:5mm~18mm
• Sealant supply pressure :<35 Mpa (hydraulic pressure<10Mpa ,sealant pressure <35Mpa)
• Board angle :6°~9°
• Air pressure :0.6~0.8 Mpa
• Max glass weight :300kg
• Glass specification :(4+6+4)mm~(12+25+12)mm
• Extruding sealant must under the condition that the glass edge is smooth and without dislocation of the insulating glass ,there are many sensors on the machine ,it require unrelated persons do not near the machine so as to avoid malfunction and cause damage of the machine or threaten the personal safety .
• It need to open the timing sealant discharge function if it need long time (more than 5 minutes )to extrude sealant to the second glass so as to avoid blocking the mixer
• Check the parameters carefully before extruding sealant ,change the parameter of glass size ,glass thickness etc timely when change the glass batch.
• It need to change the sealant amount if use different sealant as the viscosity maybe different

• Specification of Insulating glass sealing robot



  Model	LJTJ2540
  Voltage Power	415V 13KW
  Air Pressure	0.5~0.7Mpa
  Extruding pressure	32Mpa
  Max.Glass size	2500*4000
  Min.Glass size	400*300mm
  Glass thickness	12~56mm
  Working speed	5~40m/min
  Overall dimension	11000*3600*3500mm



  Machine Noise :



  A-weighted sound pressure level
  Stand-by state	Working state
  50 db	85 db

Related product of LIJIANG GLASS

Pneumatic And Hydraulic Silicone Sealants Filling Machine For Insulating Glass

Main feature of the LJST02A silicone sealants spreading machine

• Imported motor system to improve equipment efficiency

• Sealant gun, stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

The silicone sealant-spreading machine LJST02A uses motor to control the sealing.

Main feature of the sealant-spreading machine LJST03

• Use cylinder to provide power

• China sealant gun, stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue
