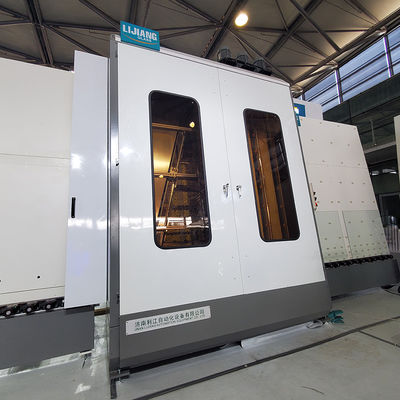

Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes

Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes
Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes
Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes

Large Image :  Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJQX2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 20000 USD/PC
Packaging Details: Container
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 20SETS/MONTH
Contact Now

Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes

Description
Name: Glass Washing And Drying Machine Voltage: 380V/50HZ
Glass Thickness: 3-15mm Warranty: 1 Year
Min Glass Size: 300*450mm Color: Red/Blue/Customer Needs
Application: Cleaning And Drying Glass Max Glass Size: 2400*1600mm
Power: 15kw Power Supply: 220V/380V/400V/415V
Usage: Washing And Drying Washing Speed: 0-8m/min
Min.glass Size: 300*500mm
High Light:

Large Size Vertical Glass Washing Machine

,

Automatic Vertical Glass Washing Machine

,

8m/min Vertical Glass Washing Machine

Glass washing machine technical parameters



glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes 0



Main feature:



• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted

by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure

that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

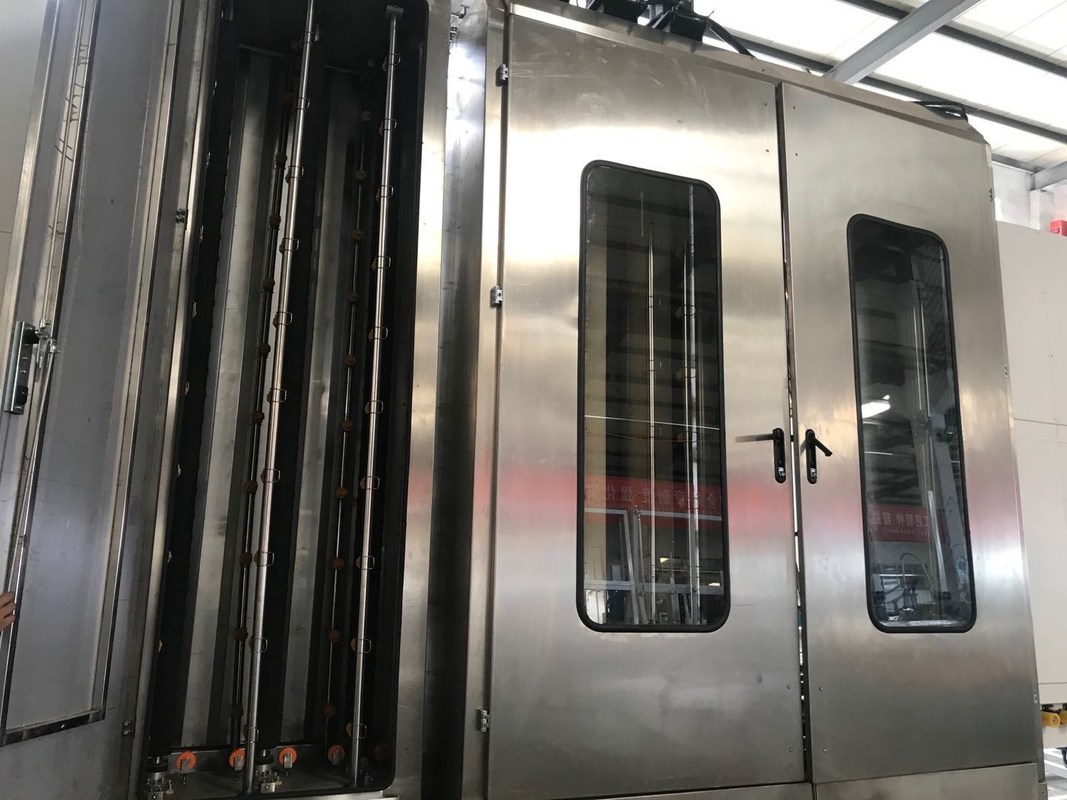

1. Materials

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.



Automatic large size Glass Vertical Glass Washing Machine



The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.

Automatic Large Size Vertical Glass Washing Machine With 6 Pcs Soft Brushes 2



Technical data:



Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW



1. There is the Low-e glass sensor in the washing machine
This sensoris installed before washing machine. It could automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.

2. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only. It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

3. Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.
Automatic large size Glass Vertical Glass Washing Machine
4. Water heating system and water filter system.
As different countries have differentwater quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

5. The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.


Electrical parameters :

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Photoelectric switch Korea AUTONICS
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Transfer motor Taiwan LINHAI
Brush motor China QINGHUA
Water pump China LINGXIAO
Pneumatic Components Taiwan AIRTAC
