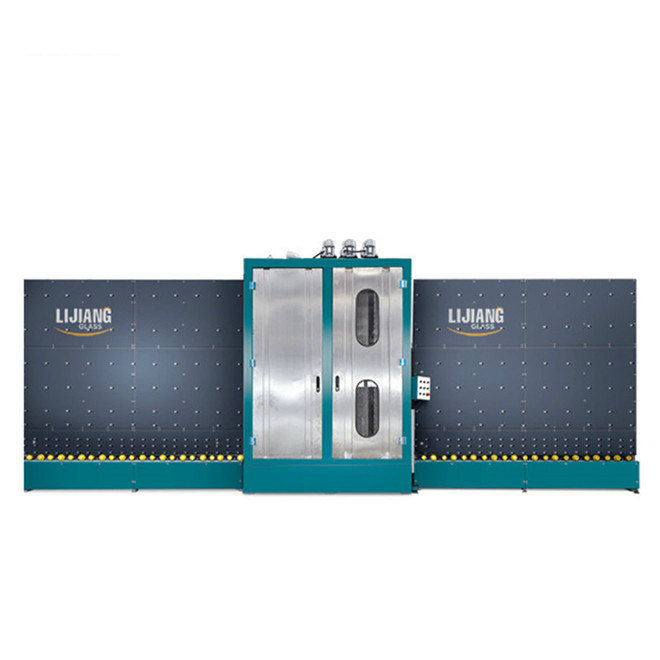

Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes

Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes

Large Image :  Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Model Number: LJQX2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 20000 usd/set
Packaging Details: Container
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 20SETS/MONTH
Contact Now

Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes

Description
Certification: CE Voltage: Requirements
Condition: New Power(w): 3KW
Warranty: 1Year Color: Blue Or Customize
Name: Vertical-glass Glazed Washing And Drying Machine Min. Glass Size: 300x400mm
Usage: Making Insulating Glass Glass Thickness: 3~18mm
Power Supply: 220V/380V/400V/415V Max. Glass Size: 3000*2500mm
Single Glass Thickness: 3-25mm Work Speed: 15-45 M/min
High Light:

Low E Glass Washing And Drying Machine

,

IG Glass Washing And Drying Machine

,

45 m/min Glass Washing And Drying Machine

Glass washing machine technical parameters
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 0
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 1

Glass washing machine technical parameters

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 2
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 3



1.Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving 70% efficiency； 2.The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 4



4.The washing part in contact with water is made of stainless steel； 5.Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 5



6.Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 6
Item.
Spec.
Maximum glass width
2500mm (effective maximum: 2650mm)
Minimum glass specification
400mm×400mm (limited to single row on left and right sides)
Glass thickness
3mm-25mm (digital display)
Speed range
glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation
method
frequency control
Table height
900±25mm
Total power
42KW(water-bearing wind heating: 15KW)
Water source
self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment
shall be provided by the buyer)
Power source
380V 50Hz
Dimensions (length × width × height)
approximately 6260*4800*3100
Weight
3940kg
Above Information is the Specification of Jinan LIJIANG Glass Technology Standard.
If customers want to change the Specification, Please let us know.
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 7
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 8
Vertical Glass Washing And Drying Machine For Low E Glass Processing 6 Pcs Soft Brushes 9
