2000*2500mm Vertical Glass Washing Machine For Insulating Glass Processing

Large Image : 2000*2500mm Vertical Glass Washing Machine For Insulating Glass Processing

Product Details:

Place of Origin:	Jinan China
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJBQX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wrapping film
Delivery Time:	30days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Contact Now

2000*2500mm Vertical Glass Washing Machine For Insulating Glass Processing

Description

Name:	Vertical Glass Washing Machine	Materials:	Stainless Steel
Brushes:	3Pairsof Soft Brushes	Glass Size:	2000*2500mm
Air Knife:	Can Be Adjusted	Brand:	Lijiang Glass (Jinan, China)
Highlight:	2000*2500mm Vertical Glass Washing Machine , Insulating Vertical Glass Washing Machine , IG Vertical Glass Washing Machine

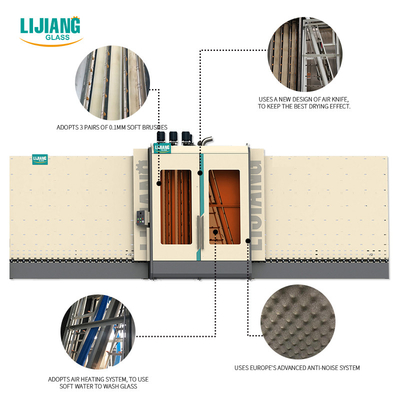

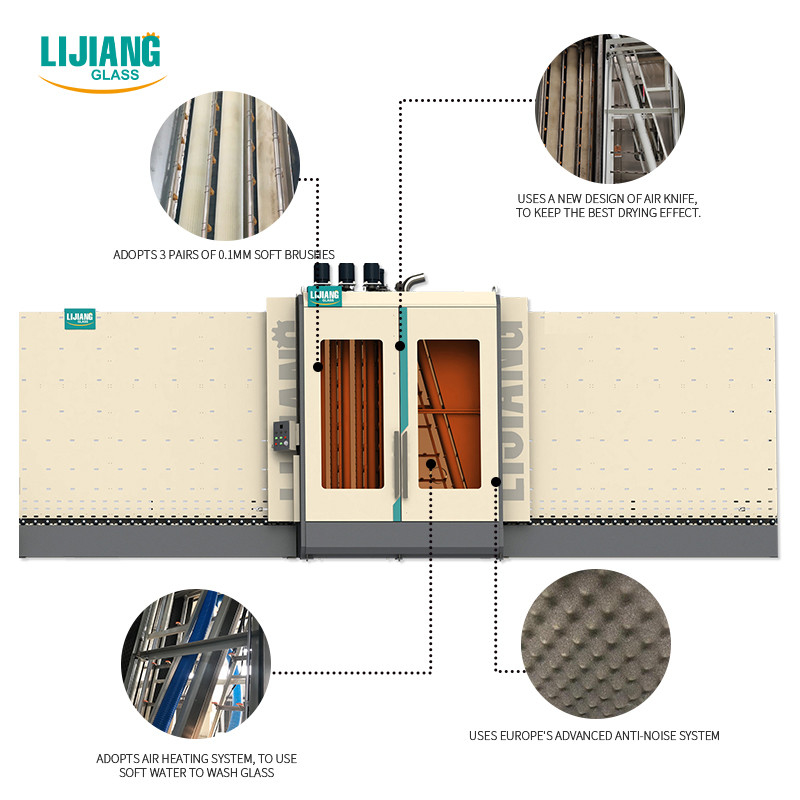

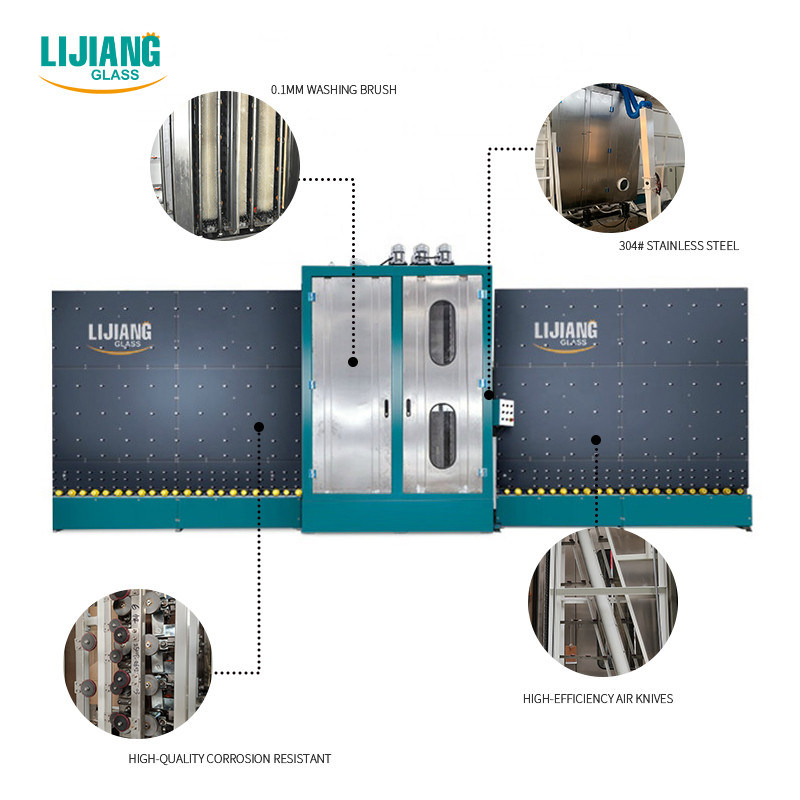

Vertical Glass Washing Machine for Insulating Glass Processing

LJBQX glass washing machine is vertical washing machine, used for washing many kinds of glasses, and low-e glass. The washing machine has three sections, 01 transfer section, 02 washing and drying section and 03 checking and transfer section. The washing machine has low-e film dection function, can detect the low-e film by coating detection mechanism. The brushes are all used soft brushes. The air knife can be adjusted according to different glass' sizes. Washing clearly with high speed. The washing speed can be displayed on the touch screen directly.

Details introduce of the glass washing machine

• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing and drying machine

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray. * The material in the washing and drying section all made by stainless steel. * The main power consumption is mostly appear in the washing and drying section of the IG line. * The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section * The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly. * The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time. * The who drying machine use the sound insulation design. can reduce the noise.

3 pairs of 0.1mm soft brushes

It has 3 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for Low-E glass.

New design of air knife

The whole washing machine uses a new design of air knife to washing and drying glass, which make the distance between the glass and the air knife in a stable value, to keep the best drying effect.

The water heating system

As different countries have different water quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

The anti-noise system

Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.

Main Technical Parameter

Item.	Spec.
Max washing size	2000mm*2500mm
Min washing size	450mm*300mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs of soft brushes with 0.1mm hair
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	18kw
Height	3100mm

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 checking and discharge section

• Using LED lights to check if the glass is washed clean or not, if the glass is not clean, it will alarm.

Main specification:

**Max glass size : 18002000mm / 20002500mm/ 2500*3500mm (can be optional)**

**Min glass size : 400*280mm**

Glass thickness: 3 - 18mm

Glass with low-e film : Yes

Numbers of brushes : 6 pieces

Brushes' quality: soft brushes ( can wash low-e glass) with 0.1mm diameter

Brushes' motors: 3 motors

Air knife: adjustable

Washing speed : winter 6 - 7m, sumer 8 - 10m

Front and rear Pushing wheels: with power

Washing speed : can be displayed on the screen

Warranty: one year

Machine brand: LIJIANG GLASS

Country of original: Made in Jinan, China

Max. glass size	2000mm*2500mm
Min. glass size	280mm*450mm
Glass thickness	3-15mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs of soft brushes with 0.1mm hair
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Total power	18kw
