Home > Products > Vertical Glass Washing Machine >
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine

Multifunctional Raw Combined Vertical Hollow Glass Washing Machine

Vertical Hollow Glass Washing Machine

Combined Hollow Glass Washing Machine

Multifunctional Hollow Glass Washing Machine

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJZW2020A

Contact Us
Request A Quote
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine Multifunctional Raw Combined Vertical Hollow Glass Washing Machine Multifunctional Raw Combined Vertical Hollow Glass Washing Machine Multifunctional Raw Combined Vertical Hollow Glass Washing Machine
Product Details
Voltage:
380V 50HZ 3P
Power:
2.5KW
Dimension(L*W*H):
10500mm*2200mm*2500mm
Weight:
1580 Kg
Spacer Specification:
5.5mm - 27mm
Highlight:

Vertical Hollow Glass Washing Machine

,

Combined Hollow Glass Washing Machine

,

Multifunctional Hollow Glass Washing Machine

Payment & Shipping Terms
Minimum Order Quantity
ONE
Price
35,000 USD to 34,000 USD
Packaging Details
Wooden boxes and containers
Delivery Time
10 working days
Payment Terms
L/C, T/T
Supply Ability
10 units per month
RELATED PRODUCTS
Good price Processing Hollow Glass 10m/Min Vertical Glass Washer online

Processing Hollow Glass 10m/Min Vertical Glass Washer

Get Best Price
Good price Automatic Vertical Glass Washing Machine For Insulating Glass Processing online Video

Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Get Best Price
Good price Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ online Video

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Get Best Price
Good price 2500mmx3000mm Glass Washing Machine Use For Window Glass Cleaning online Video

2500mmx3000mm Glass Washing Machine Use For Window Glass Cleaning

Get Best Price
CONTACT US
Contact Now
Product Description
Multifunctional combined vertical hollow glass raw washing machine
Product Description
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 0




Insulating Glass Washing Machine

LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 1Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 2
Detailed Images
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 3
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 4
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 5
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 6
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 7
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 8
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 9

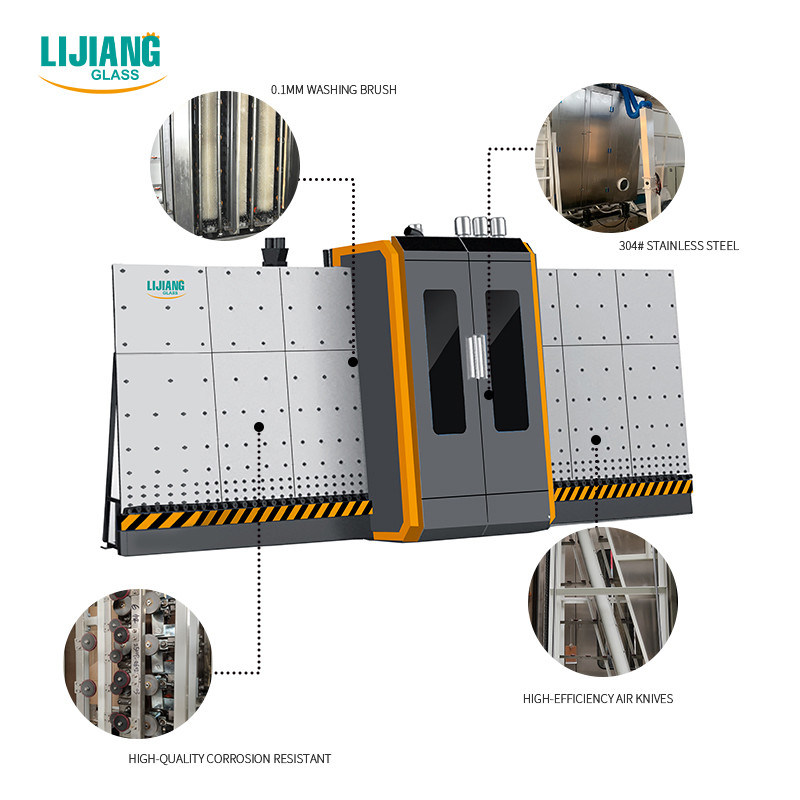

Benefits & Advantages

1. Stainless steel water contact parts;
2. Suitable for cleaning and drying of flat glass ;
3. The top washing section height can be adjusted;
4. Three pairs of high quality brushes and air knives;
5. Processing speed can be adjusted by the step less regulator;
6. This special design makes the glass clean and dry even at the corner position.
7. Top open for 1.5m machine for option.
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 10



Stainless steel
The vertical glass washing machine uses stainless steel material, the screws are used China famous brand, stainless steel material. The water tupes are used water proof design.
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 11



6 pieces of soft brushes
The vertical glass washing machine uses 6 pieces of soft brushes, which can wash low-e glass well, do not damaged the low-e film.
Multifunctional Raw Combined Vertical Hollow Glass Washing Machine 12



Adjustable air knife
The vertical glass washing machine uses new air knife design, which can save a lot of energy, keep good washing result, the powerful wheels can keep different sizes of glasses transfer quickly. Fast washing speed.
Main technical parameter
Item.
Spec.
Dimension(L*W*H)
6300*1500*2400mm
Max glass size
2000*2500mm
Min glass size
280*400mm
Glass thickness
3 - 18mm
Washing speed
summer: 8 - 10m, winter: 6 - 7m
Pane glass thickness
3-18mm
Washing speed
0-18m/min
Work pressure
0.5~0.8MPa
Power
18.5kw
Height
3100mm
