Product Details:
|
| Name: | Full-Automatic Vertical Insulating Glass Sealing Robot | Max Size: | 2000*2500mm |
|---|---|---|---|
| Advantage: | Easy For Different Shap Glass | Min Glass Size: | 400*300mm |
| Glass Thickness: | 12-56mm | Voltage: | 380V 50Hz 3P |
| Highlight: | Vertical Sealant Extruder,Insulating Glass Sealing Robot Vertical,Double Glazing Insulating Glass Sealing Robot |
||

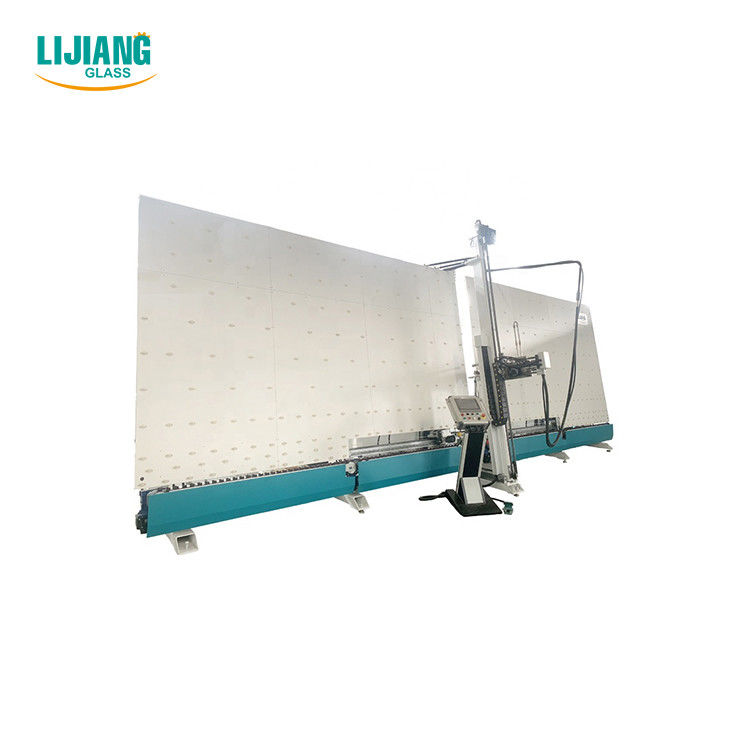

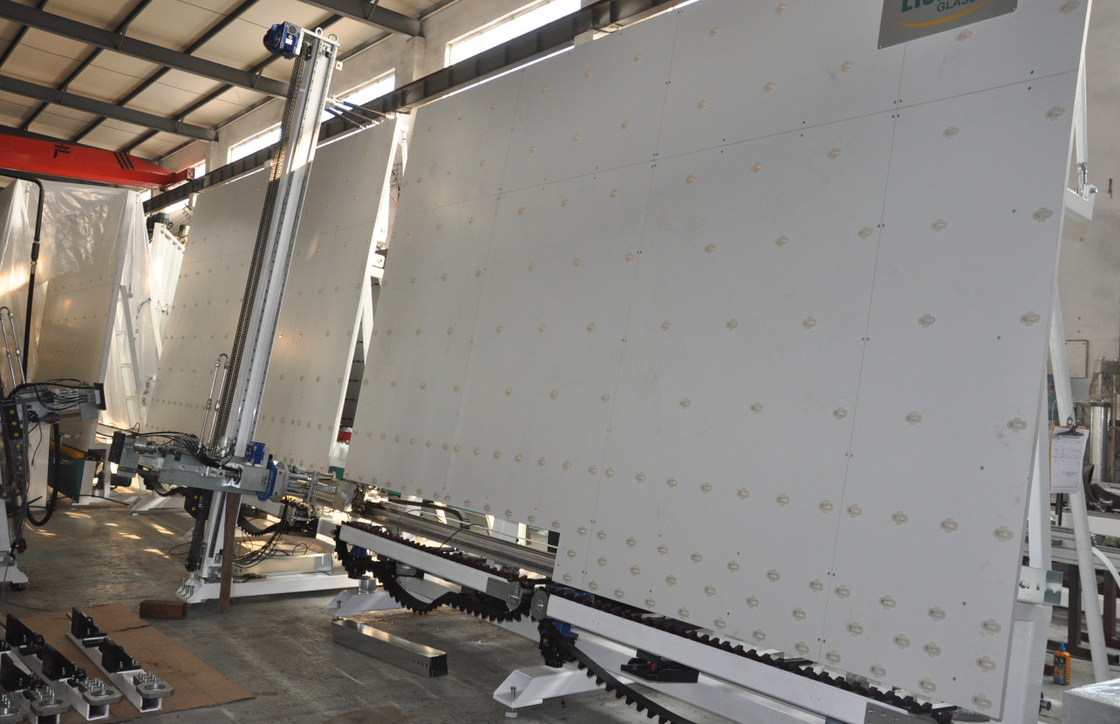

Vertical Insulating Glass Sealing Robot For Double Glazing Glass Unit Silicone Extruder Machine

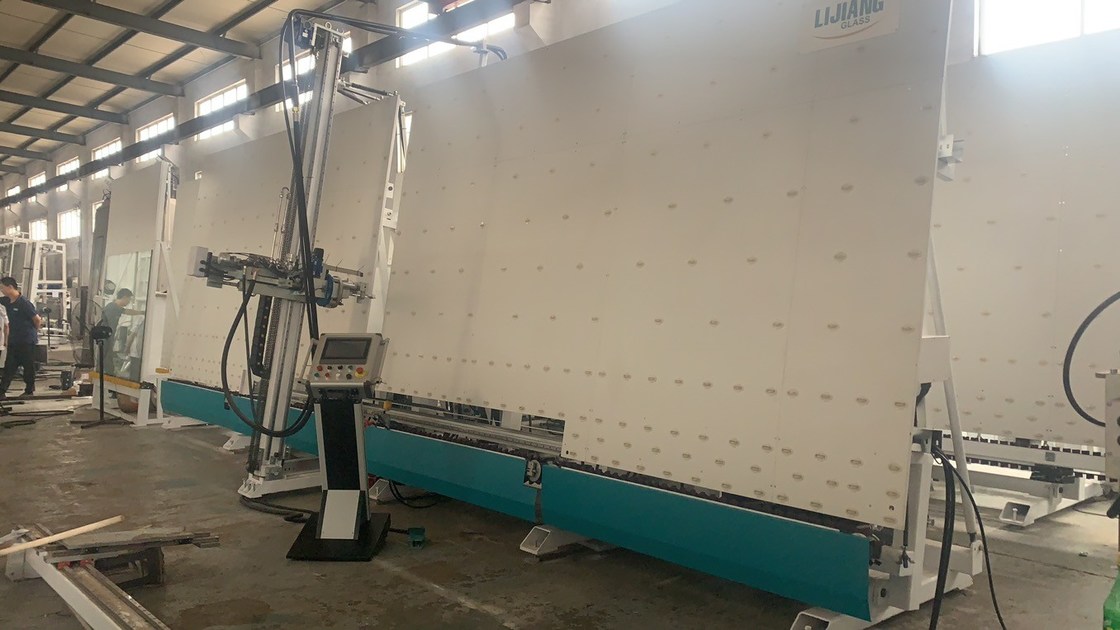

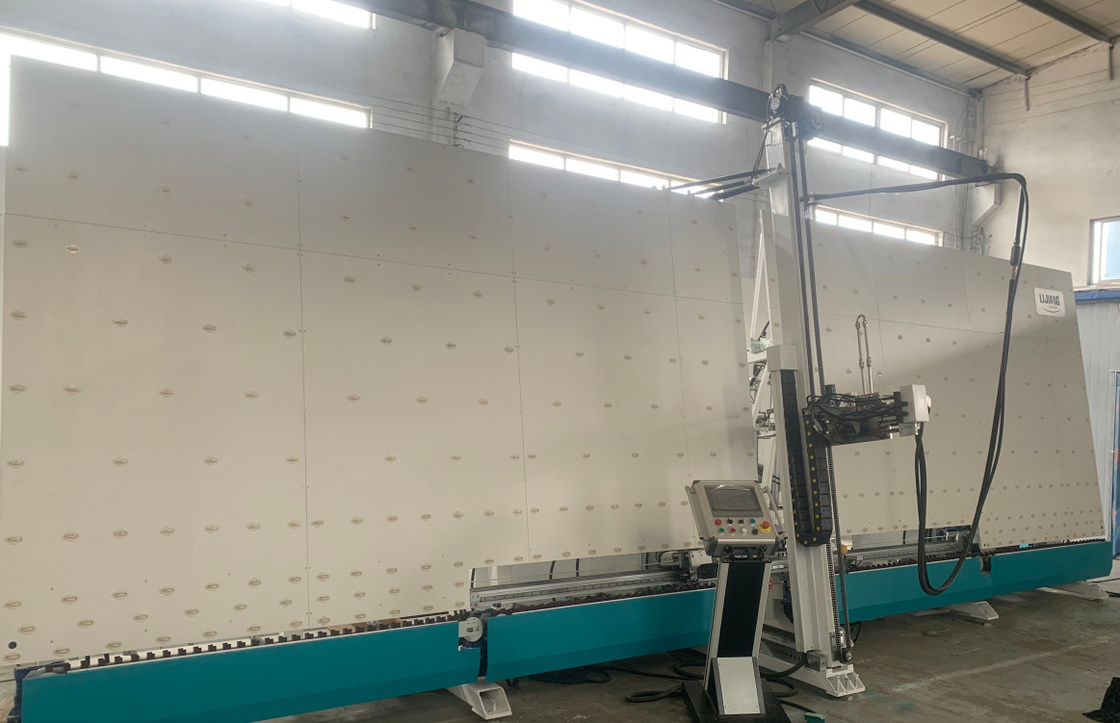

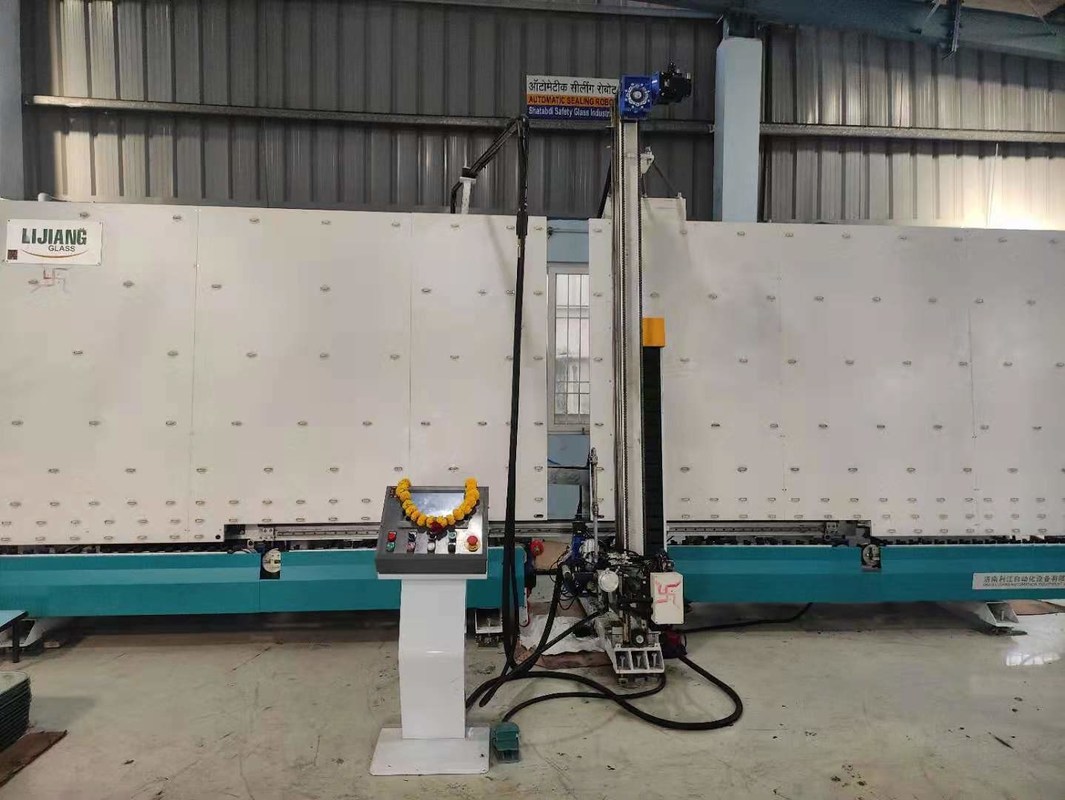

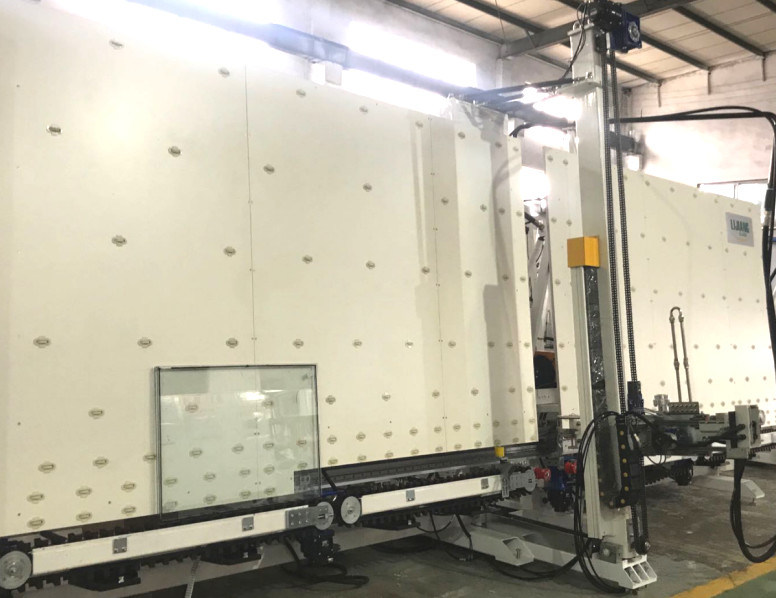

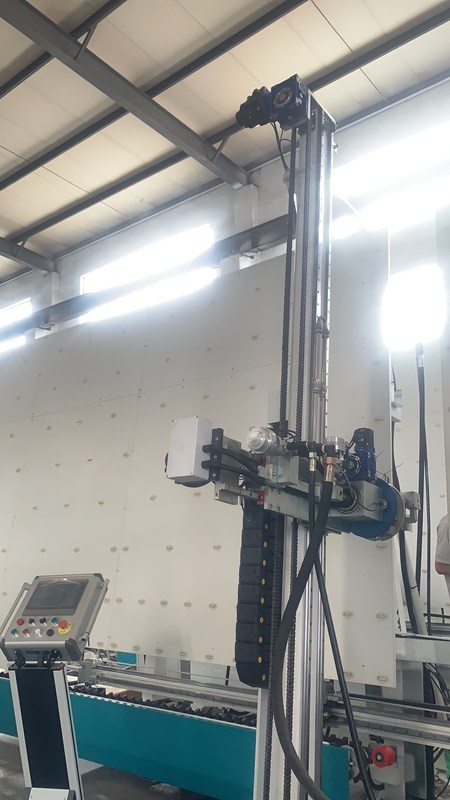

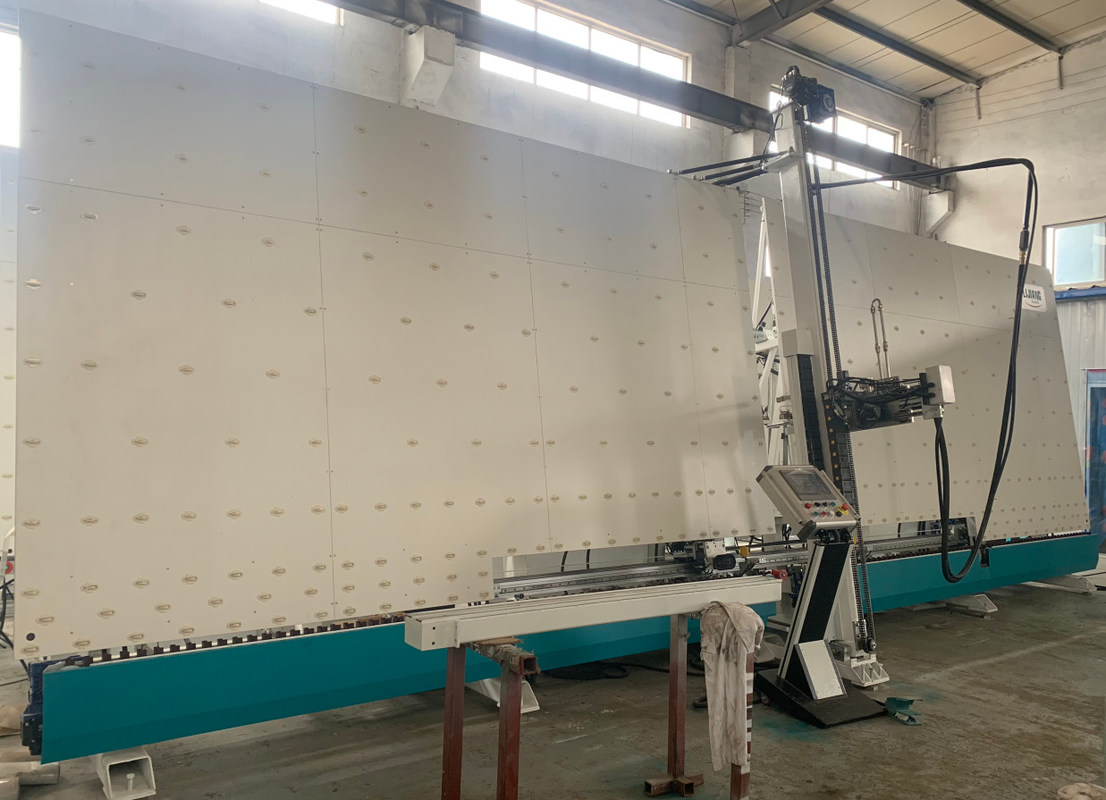

LJTJ2540 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.
►
Ø Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Ø One Set of Pump A & Pump B
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
Ø Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
Ø Dyad Body Device
The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.
² Technical data
| Max.glass size | 2000*2500mm | 2000*2500mm |
| 2500*3500mm | 2500*4500mm | |
| Min.glass size | 2000*2500mm | 170*400mm |
| 2500*3500mm | 300*400mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Max.glass size | 2500*4000mm | |
| Min.glass size | 300*300mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Name | Brand |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Japan SCHEIDER |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| Touch screen | Taiwan WENVIEW |
| Guideway | Taiwan HIWIN |
Main technical parameter
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
