Automatic Vertical Insulating Air-Floating Glass Processing Line With Gas Filling Online
Introduction of vertical insulating air-floating glass processing line with gas filling

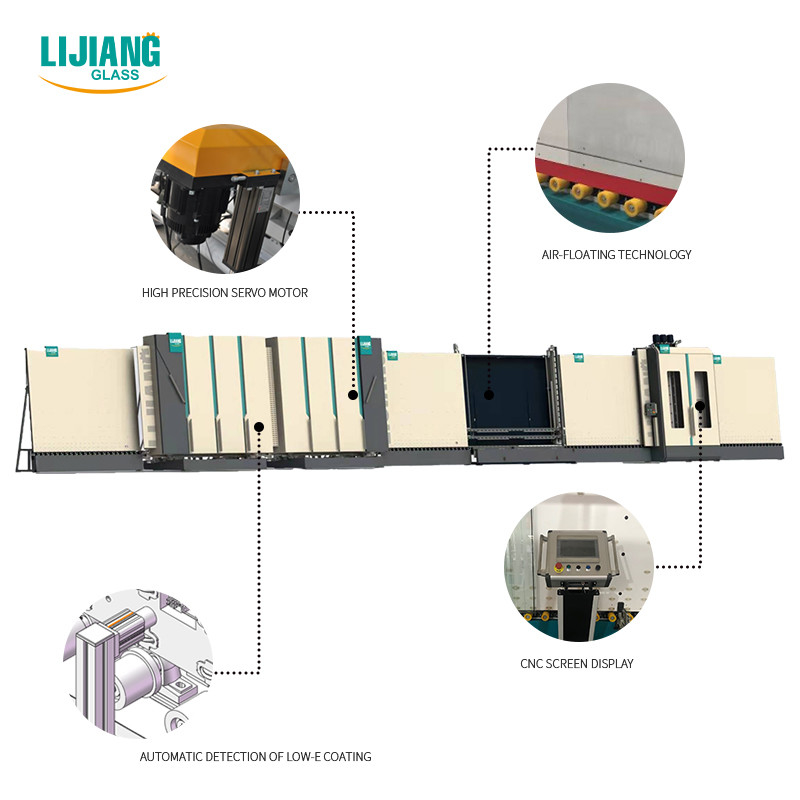

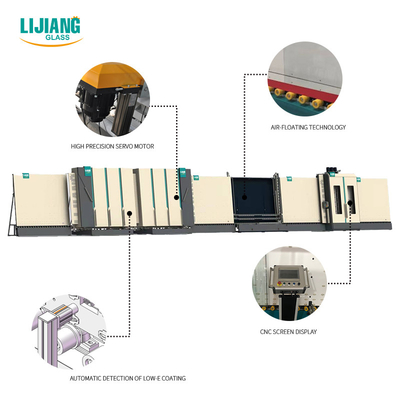

Using Air-floating technology to transfer glass to prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality. The line has seven sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
07 discharge section
• Storage glass
• Can be connected to sealing machine
Technical data
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 1m³/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Other sizes of the vertical insulating air-floating glass processing line with gas filling :
Parameters | Unit | LJBZ2025GF | LJBZ2535GF | LJBZ2535DGF |
Power supply | 380V 50Hz 3P | |||
Total power | KW | 41 | 44.5 | 51.5 |
Washing speed | m/min | 2~10 | ||
Maximum working speed | m/min | 45 | ||
Minimum glass size | mm | 450*280 | ||
Maximum glass size | mm | 2000*2500 2000x3000 (Pressed by twice) |
2500*3200 2500*3500(Pressed by twice) 2500x4500(Pressed by twice, add suckers) |
|
Flat glass thickness | mm | 3~15(3-30) | ||
Washing brushes | Pieces | 6 | ||
Maximum thickness of insulating glass | mm | 60 | ||
Total gas consumption | L/min | 1200 | ||
Conveyer roll height | mm | 520 | ||
Dimension | L*W*H(mm) | 19500*3500*3200 | 23500*3500*3700 | 27000*3500*3700 |
Optional functions of vertical insulating air-floating glass processing line with gas filling :
• Step glass with optional edges (L:100mm W:50mm)
• Shaped glass
• Pre washing machine
Details of Automatic vertical insulating air-floating glass processing line
01 transfer section
Coating detection mechanism, automatic detection of offline Low-e film
02 washing machine
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
03 discharge section
• Storage glass
04 inspection and installation section
The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass
05 transfer section
• Automatic measurement of glass thickness. It can be used according to actual needs when working.
06 pressing and filling section
Other product of LIJIANG GLASS
Vertical edge deleting machine Glass Edge Grinding Machine with servo motor
LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Low-E glass, also known as low radiation glass, is a kind of film product composed of multilayer metal or other compounds on the surface of glass. Compared with common glass and traditional architectural coated glass, the coating has excellent heat insulation effect and good light transmittance.
Low-e glass types:
Single silver Low-E glass
Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.
Double silver Low-E glass
The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.
Main feature of Low-E film deleting machine:
Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. Low-E film deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.
The vertical low-e film edge deletion machine can delete the double or triple low-e film.
Technical parameter:
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Glass thickness | 3 - 15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 15KW |
Dimension | Dimensions :9700×2500×3400mm |
Total weight | 3700KG |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Taiwan | TAIDA |
PLC | Taiwan | TAIDA |
Pneumatic component | Taiwan | AAIRTAC |
Low pressure electricity | Germany | SIEMENS |
Circuit breaker | Germany | SIEMENS |
Sensor switch | Korea | AUTONICS |
Approach switch | Korea | AUTONICS |
Limit switch | Taiwan | TEND |
Connector | Germany | SIEMENS |
Frequency converter | France | SCHNEIDER |
Main Button | France | SCHNEIDER |
Intermediate relay | Japan | OMRON |
