Automatic Insulating Glass Processing Line With Glass Washing Pressing Machine

Automatic Insulating Glass Processing Line With Glass Washing Pressing Machine

LIJIANG's products mainly include:

IG line series;

Sealing robot series;

Low-e film edge deletion machine;

Spacer bending machine series;

Butyl extruder machine series;

Desiccant filling machine;

Auxiliary insulating glass machines.

About 20 products are widely used in customized insulating glass industry, windows and doors, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.

Company profile of LIJIANG GLASS :

Jinan Lijiang Automation Equipment Co., Ltd (LIJIANG GLASS) specializes in the R & D and manufacturing of automatic insulating glass machinery since 2007. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc.

The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. At the same time, we have set up branches in New Delhi, India.

IG line series :

Sizes :

2000*2500

2500* 3500

3000* 4000

3300*7000

Special technology :

Shaped glazing glass

Filling argon gas online

Low-e film glazing glass

Making two pieces of IG units in once time

Air floating insulating glass line

Functions :

double glazing glass

triple glazing glass

four sides step glazing glass

Automatic Vertical Insulating Glass Production Line - 2000*2500

Main Features of Insulating Glass Production Line:

• IG line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

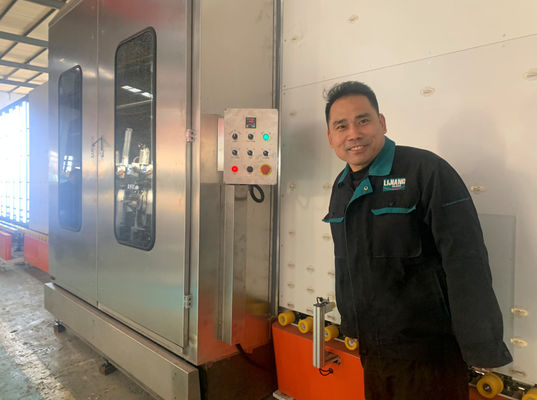

Washing machine:

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• pressing and filling section

Pressing machine :

Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

Technical data of insulated glass production line:

Other products of LIJIANG GLASS

Automatic Insulating Glass Aluminum Spacer Bar Butyl Glue Coating Machine

Automatic butyl extruder machine is the necessary equipment for manufacturing aluminum-frame type insulated glass, even it is necessary for Vertical insulating glass processing line.The butyl that be glued on the both side of aluminum frame automatically, the glue is the first coating sealant for insulating glass. So the quality of the butyl directly decides the quality of insulating glass and using life. The butyl extruder machine have many types in the market, including manual and automatic butyl coating machines.

The Details Of Butyl Extruder Machine LJTB 01

Main feature :

• PLC control system, KINCO touch screen interface

• Hydraulic system using German brands

• Alarm system, reminding adding butyl glue

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Exhaust function

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Stable pressure and even coating

• Saving glue. The amount of glue on both sides can reach 4g / m

• Big glue barrel, 200L. (Optional)

Technical data :

Electrical parameters

Function description

This machine has kinds of functions, please see the below instructions:

1. Alarm device of no butyl When there is no butyl, it can automatic alarm(There is a reminder on touch screen);
2. Device of air quickly inlet to the rubber cylinder When need to change butyl, open the inlet valve before the rubber cylinder going back, immediately blow air into the cylinder can help the cylinder quickly go back.
3. Preheating function When using the machine, it can start to work normally until the temperature of nozzles and gluing base up to set temperature. In order to improve using efficiency, workers can set starting time in advance, so it can automatic start heating system before working, no need to wait;
4. Delay switch off When machine is normally working, gluing needles are in heating condition. When you want to switch off the machine, if do it immediately, it’s easy to destroy the belt. So the function of delaying switch off can improve using life of belt.
5. Device of providing butyl for desiccant filling machine, it can provide butyl to desiccant filling machine at any time in the condition of power-on;
6. Sleeping mode Under sleeping mode, equipment transmission, heating are normal operation, but cut off the gas source. It can effectively reduce the waste of gas.
7. Power failure that gas failture After finishing the work, can be turned off power, no need to cut off the gas source.

(8)Automatic measure the width of aluminum spacers----device of thickness measurement it can automatic adjust the distance of back and front needles by width of aluminum spacers;

(9)Frequency control motor Transfer motor is frequency control motor and max speed can up to 47m/min.

(10) This machine is easy to operate, it’s stable and reliable, the effect of gluing is good, speed is quick and the product is efficient.
