Horizontal Plate Glass Dust Removal Washing And Drying Machine For Insulating Glass

Dust Removal Washing And Drying Machine

Horizontal Washing And Drying Machine

Insulating Glass Washing And Drying Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Request A Quote

Horizontal Plate Glass Dust Removal Washing And Drying Machine For Insulating Glass

Product Details

Name:

Horizontal Glass Washing Machine

Advantage:

Soft Brush For Low-E Glass Washing

Max. Glass Width:

2600 Mm

Min Glass Specification:

350*350 Mm

Glass Thickness:

3--25 Mm

Washing Speed Range:

Glass Thickness Within 3-19 Mm Vmax=1--12 M/min

Function 1:

New Type Of Air Knife Drying

Function 2:

Solid Rubber Roller

Highlight:

Dust Removal Washing And Drying Machine

Horizontal Washing And Drying Machine

Insulating Glass Washing And Drying Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Horizontal Glass Washing And Drying Machine For Insulating Glass Processing

Get Best Price

Horizontal Flat Glass Washing Machine For Insulating Glass Processing

Get Best Price

2500mm 2650mm Horizontal Flat Glass Washing Machine Easy Operate

Get Best Price

Video

Thickness 2mm-25mm Horizontal Glass Washing Machine For Glass Deep Processing

Get Best Price

Contact Now

Product Description

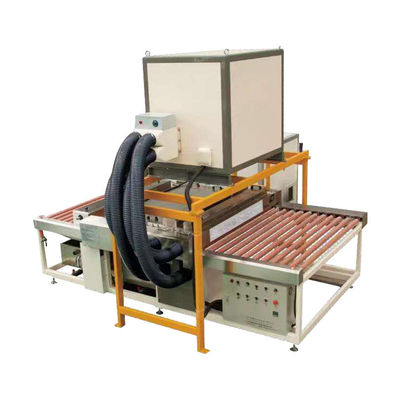

Automatic Horizontal Plate Glass Dust Removal Washing and Drying Machine for Insulating Glass Processing

Product Description

JNLJ-2500C Automatic Horizontal Glass Washing and Drying Machine

JNLJ-2500C Automatic Horizontal Glass Washing Machine consists of in-feed, washing, drying & out-feed section. To make correct washing overall performance and speedy air dry, it adopts three pairs brushes and two pairs air knives with 1pc air blower. It suits for tempered glass, photo voltaic glass, laminated glass, Low-e glass or any different flat glass processing.

Equipment advantages

Characteristics

Horizontal structure, easy operation. The computer body adopts heavy thickness aluminum alloy to keep away from to be out of structure when working for a longtime. With stainless metal water sink and excessive stress pre-spraying (high strain pump) in loading ( in-feed), the rubber curler can pre-wash robotically to easy out the glass powder or scraps. Brush: The top and backside brushes transmit by way of 1 motor respectively. Water tank (with heater): 2 water tanks total, 1 for pre-wash, any other for washing section. Blower: Low noise and vibration. Conveying adopts time-honored converter, digital show and handy operation, which do desirable to join with double edging line, hole glass line, security glass line, etc. Table rollers adapt best rubber and transmitted by using equipment wheel which makes a secure working. Side covers and tanks and any different water touched fabric undertake stainless metal 201. Washing and Drying part can be lifted to Max. 400mm by using adjustment on electrical board with 4 legs(corners) growing via motors and encoder. two pairs air knives undertake superior method device, giant electricity and rapid air dry.

The Aluminum Alloy Structure

The complete cleansing gear adopts aluminum alloy assembled tripod, which is secure and durable, now not handy to change. The floor of the aluminum alloy aluminum profile adopts bad oxidation treatment, which is now not convenient to be corroded via water.

The Water Tank Adopts #201 Stainless Steel

The water tank, the guard and the region in contact with the water are made of #201 stainless steel, which is tougher than #304 stainless metal and carries excessive manganese. Chromium-rich oxides will be shaped on the floor of the metal physique to guard the metal physique from water rust.

The Gear Transmission

The gear adopts tools transmission as a whole, and the transmission effectivity is high, commonly η=0.94～0.99; the transmission ratio has a broad range, mainly when planetary transmission is used, the transmission ratio can attain 100-200 (single-stage), which is appropriate for deceleration or Speed-increasing transmission; dependable operation and lengthy provider life.

The Lifting System

The lifting machine is pushed by using a servo motor, pushed by using a lifting screw, and mixed with a tools drive. It has the traits of low friction loss, excessive transmission efficiency, and excessive axial rigidity. In addition, the beginning torque of ball screw pair is Smaller, there will be no crawling phenomenon like sliding motion, and it can make sure the awareness of specific micro-feed and high-speed feed.

The Rubber Roller Transmission

The feeding port and the discharging port of the tools undertake frequency conversion transmission, and the operation display is displayed for convenient operation. The rubber curler is made of exceptional nitrile rubber, pushed by way of gears, and runs smoothly. It can be related with edging line, hole line and laminated line for information connection and unified control.

The Imported PLC Control System

The PLC manage device can be outfitted with the Taiwan Delta or Germany Siemens manipulate device in accordance to the proper necessities of the customer. The PLC manipulate gadget can be immediately linked to the network, connecting the loading and unloading CNC robots to acquire a clever manufacturing facility with built-in operation.

Main Technical Parameter

Item.	Parameter.
Max. width	2500mm
Min. size	400*400mm
Glass thickness	3~28mm
Working table height	900mm±30mm
Blower power	22kw
Total power	32kw
Weight	3000kg
Dimension	570033002500mm
Low-e require	Yes
Water heater	Yes
Processing speed	0.5~12m/min
Processing-speed suggestion as follow:
4mm~8mm thickness, speed suggested to 8-12m/min
10mm~12mm thickness, speed suggested to 4~6m/min
15mm~19mm thickness, speed suggested to 2-3m/min
20mm and more, speed suggested to 0.5-1.5m/min

Item.	Spec.
Main machine frame	Aluminum alloy + steel, no deformation.
High pressure pump	China famous brand: Shanqing
Frequency converter of conveying	China famous brand: Kailida
Brush motor	China famous brand: Jinxing
Bearing	China famous brand: HRE
Electrical Appliance	Schneider
Rubber roller	NBR Perduran(sour liquid forbiddion), stainless steel 304 shaft
Water tank, sink, side covers, all parts touch water	Stainless steel 201
PLC	Siemens
