Product Details:
|
| Min. Glass Size: | 450*280mm | Max. Glss Size: | 2500*3500 |
|---|---|---|---|
| Washing Brushes: | 6 Pieces | Original Glass Thickness: | 3-15mm |
| High Light: | Double Glazing Glass Production Machine,2500*3000mm Glass Production Machine,2500*3000mm double glazing machine |
||

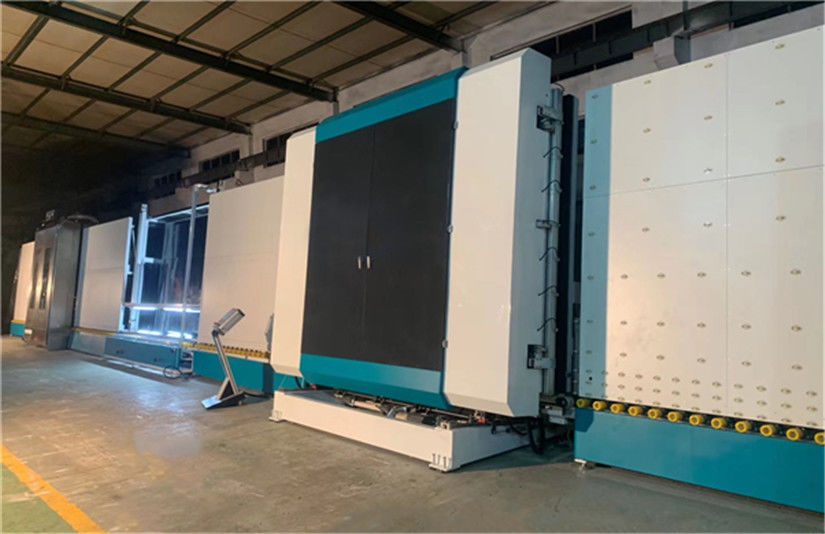

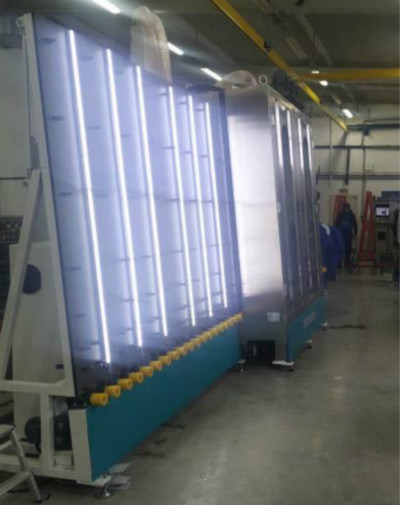

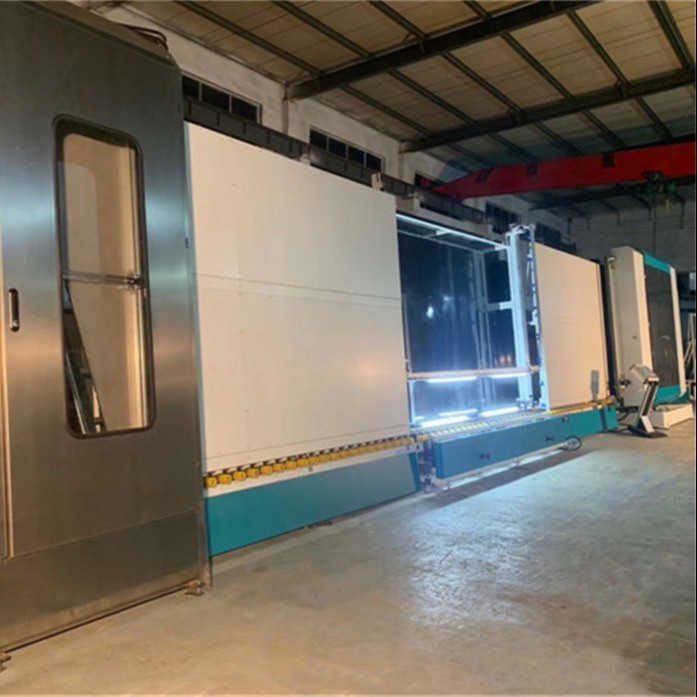

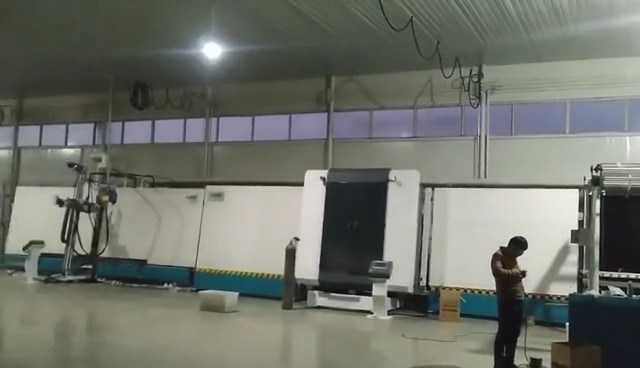

Hot sale high quaulity 2500*3000mm automatic double glazing glass production machine
Full automatic insulating glass production solution
1, The Loading section(with Low-E checking)
2, The washing and drying section(can wash Low-E glass) 3, The conveyor section
4, The checking and assembly section
5, The conveyor measure, and the sensor section
6, The pressing part (with gas filling)
7, The unloading section.
Main Technical Parameter
| Item. | Spec. |
| Dimension | 18500*3500*3600mm |
| Max.glass size | 2500*3500mm |
| Min.glass size | 300*500mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption: 0.5t/h conductivity: ≤50μs/cm |
| Air supply | Flow: 0.8m³/min |
| Air pressure | ≥0.8MPa |
About Us
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
