Insulating Glass Manufacturing Machinery And Equipment vacuum glass lifter 1000KG

GLASS MANUFACTURING MACHINERY AND EQUIPMENT GLASS LIFTER VACUM LITER

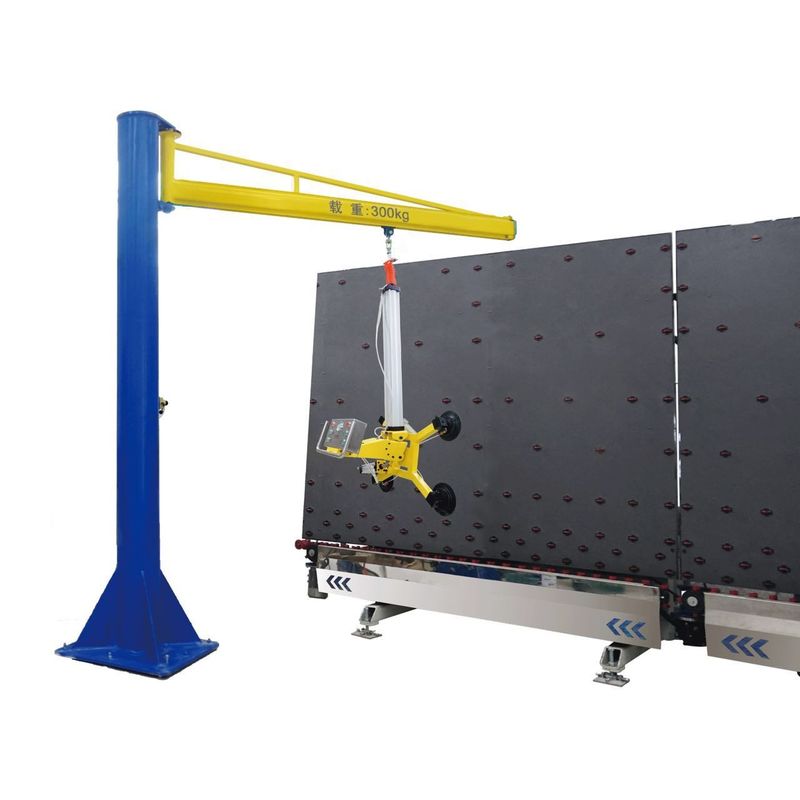

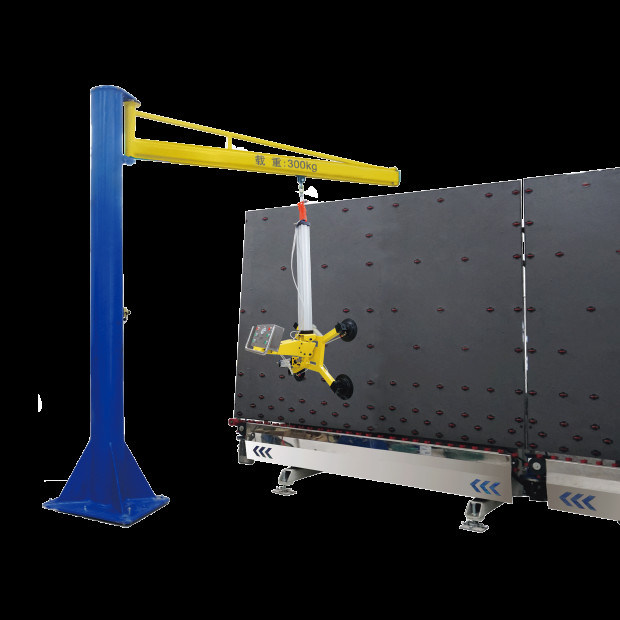

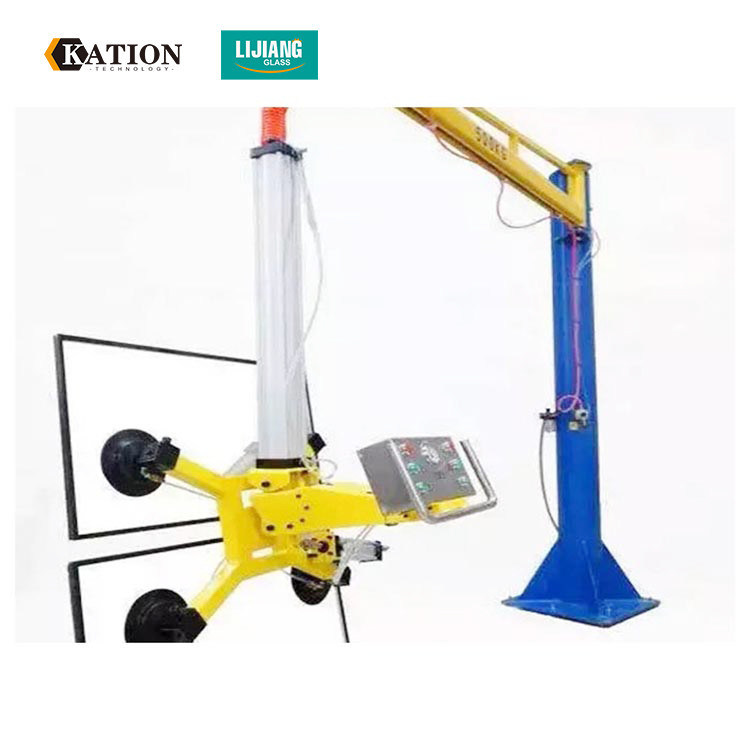

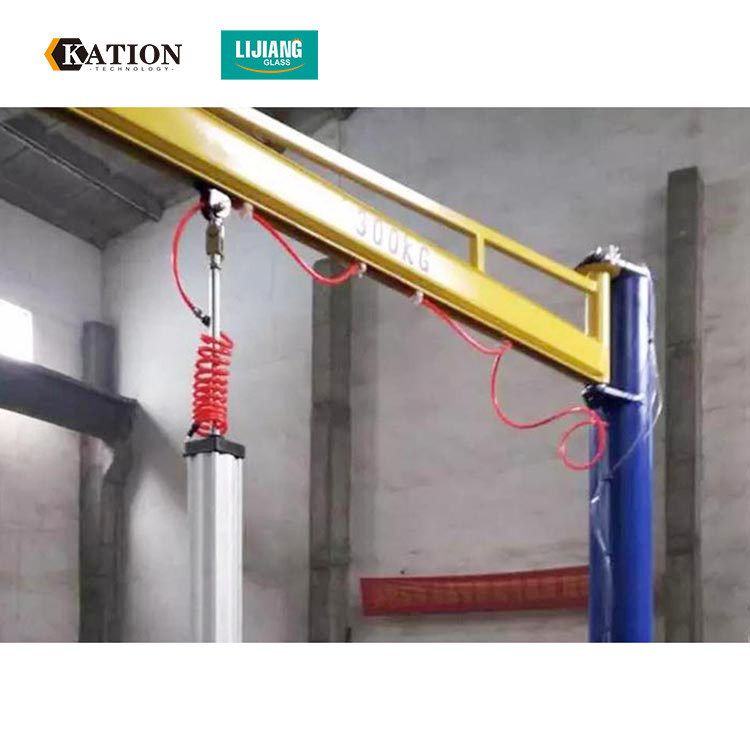

Main Features of cantilever crane


Jib crane is common light lifting equipment in modern production.

It is fit for frequent lifting work of short distance between fixed positions.

It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance.

• It is operated by using compressed air instead of using electricity.
• When the compressed air stop , glass wont fall and broken, we guarantee a safe production.
• All pneumatic components, we use Japanese SMC brand, we use German SCHMALZ products for vacuum parts which is the most advanced technology of pneumatic and vacuum control in the world.
• Long distance of electric lift and down. Double speed control , guarantee fast speed , position accuracy and stability.
• Rotate and flip are 0-90°, the official load is 400 kg, but it can be used within 500-600 kg

500-600 kg

This machine is reliable and safe, easy to operate.

The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempering furnace, lamination glass and insulated glass.

This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.

Other products of Lijiang  Double Glass Machines

Aluminum Spacer bending machine

l 1*1m spacer frame was bend w 20s.

The error of spacer frame angle is within withib 10 um ,1mm=100 um

Size error 1mm

Shaped

l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector

l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service

l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system

l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)

Remark : Bending tool

*For rectangle frame there have three size (6A/9A/12A)was complimentary

Other size need pay extra 42$/per size

* For Circle ,Hexagon and Octagon frame , 300$/per size

Main technical parameter

Spacer Bending machine main components
