Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

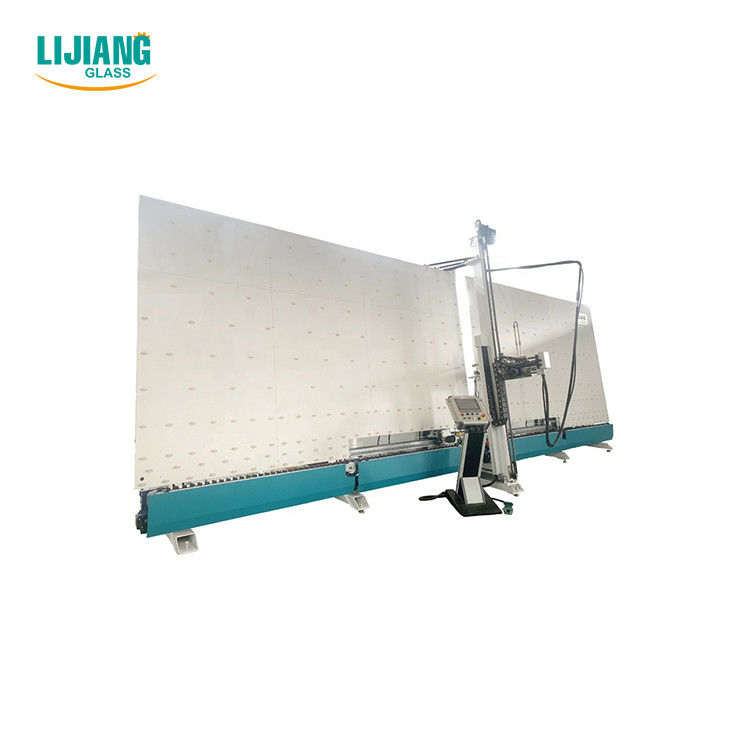

Large Image : Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJTJ2025

Payment & Shipping Terms:

Minimum Order Quantity:	ONE SET
Price:	US$50,000 to US$47,000
Packaging Details:	Containers and wooden boxes
Delivery Time:	10 working days
Payment Terms:	L/C, T/T
Supply Ability:	5 units per month

Contact Now

Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

Description

Voltage:	Can Be Request	Power:	12KW
Dimension(LWH):	8000mm1500mm2700mm	Weight:	3700 Kg
Key Selling Points:	Automatic
Highlight:	Automatic Vertical Insulating Glass Sealing Robot , 12KW Insulating Glass Sealing Robot , Automatic Vertical Curtain Wall Gluing Machine

High Efficiency Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

Product Description

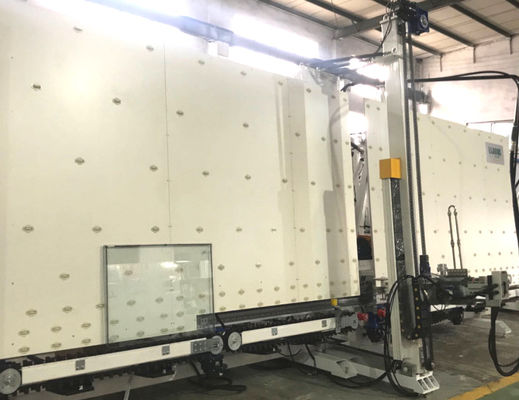

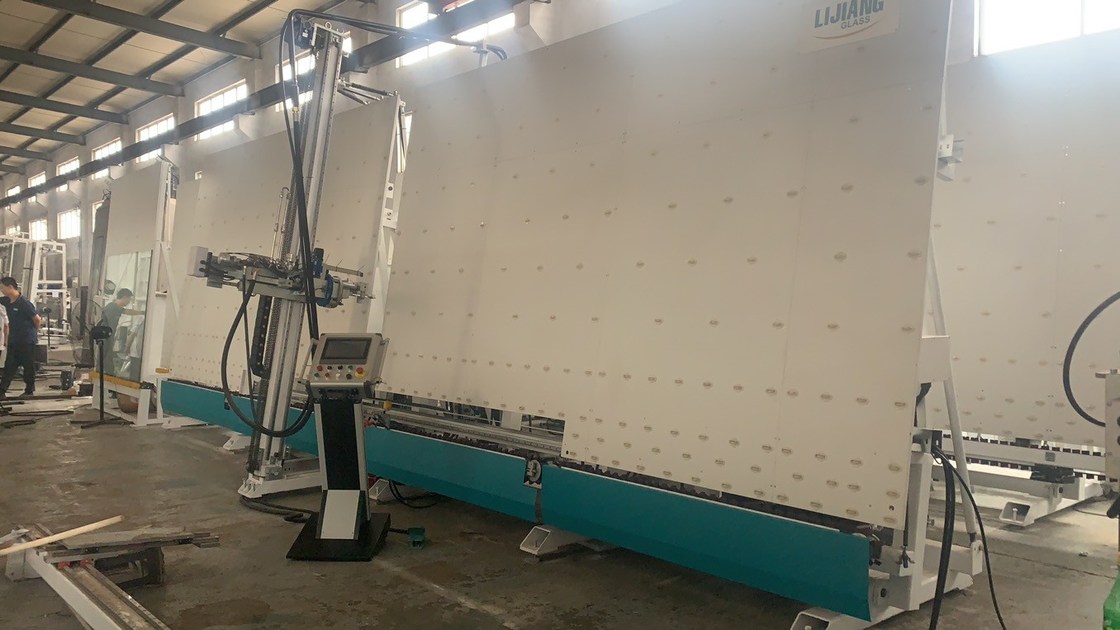

Automatic Vertical Insulating Glass Sealing Robot

Automatic Insulating Glass Sealant Sealing Machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.

Advantages & Features

Benefits & Advantages

* Min & Max glass sizes can be optional * Adopt 8 servo motors * Adopt Japan ANCHUAN servo control systemwith stable performance * Automaticallymeasure glass size, glue depth and glue speed with linear adjustment * Adopt timingbelt to keep smooth convey with accurate position * Sparesare produced with high standardization and high precision, ensure the machine can be used with long-term working * The glass cornersare full without air bubbles, smooth surface. * Full automatic and high-efficiencymachine * New scraper design, especially for making train IG with very even sides and corners, without any bubbles. * Automatically repair glass corners with beautiful surface * Smooth convey without scratchand pollution * Single-function partsare equipped with manual functions, easy adjustment * Shaped IG units (Optional) * Stepped IG units with four sides (Optional) * Double and Triple IG units

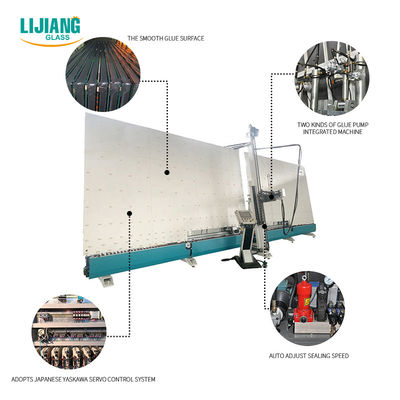

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.

Main Technical Parameter

Item.	Spec.
Max glass size	2500*4000mm
Min glass size	280*400mm
Glass thickness	12 - 50mm
Glue depth	≤22mm
Glue width	26.5mm
Working speed	5 - 40m/min
Air pressure	0.6MPa
Squeeze pressure	32MPa
Voltage Power	380V 50Hz 12KW

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
