Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System

Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System

Glass Low E Film Removing Machine

Insulating Glass Film Removing Machine

Intelligent Film Removing Machine

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJCM2545

Contact Us
Request A Quote
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System
Product Details
Voltage:
380V 50Hz
Power:
15kw
Dimension(L*W*H):
9700*2500*3400
Weight:
2500 Kg
Warranty:
1 Year
Glass Thickness:
3-19mm
Highlight:

Glass Low E Film Removing Machine

,

Insulating Glass Film Removing Machine

,

Intelligent Film Removing Machine

Payment & Shipping Terms
Minimum Order Quantity
ONE SET
Price
35,000 USD to 32,000 USD
Packaging Details
Wooden boxes and containers
Delivery Time
10 working days
Payment Terms
L/C, T/T
RELATED PRODUCTS
Good price Vertical Low E Glass Film Edge Deletion Machine With Servo Motor Control online

Vertical Low E Glass Film Edge Deletion Machine With Servo Motor Control

Get Best Price
Good price Insulating / Low E Glass Deletion Glass Edge Grinding Machine Automatic online

Insulating / Low E Glass Deletion Glass Edge Grinding Machine Automatic

Get Best Price
Good price Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent online Video

Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent

Get Best Price
Good price Smart Vertical Four Axis Low-E Glass Edge Grinding Machine Remove The Film online

Smart Vertical Four Axis Low-E Glass Edge Grinding Machine Remove The Film

Get Best Price
CONTACT US
Contact Now
Product Description
Glass Low-e Film Removing Machine for insulating glass processing with Intelligent system and fully automatic operation
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 0
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 1

APPLICATION

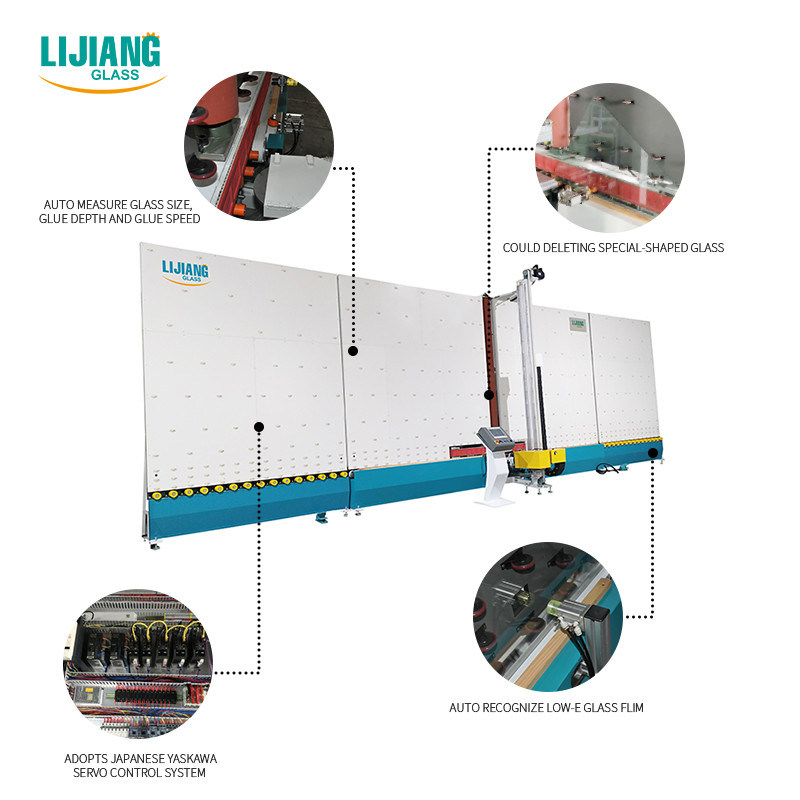

This equipment is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding
crack. Distance can be set among 10 ~ 150 mm arbitrarily.
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 2
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 3



Two-way glass access,from left/right.Auto-identification surface.
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 4



PLC control
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 5



coating checking syetem
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 6
Transmission speed
2~29m/min
Edge finish speed
2~29m/min
Glass thickness
3~15mm
Diameter of grinding wheel
200mm
Width of grinding wheel
10/12/15mm
Grinding wheel speed
0~3000r/min
Min.Glass
400×400mm
Max. Glass
2500×4000mm
Conveyor height
500mm
Total air consumption
100L/ min
Total weight
3700KG
Dimensions
9700×2500×3400mm
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 7
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 8
Grinding wheels for glass machine can be customized

Products of special specifications can be customized.
Abrasive wheel width:10/12/15mm
Edge deleting width:10-150mm
Edge deleting speed:0-15m/min
Grinding wheel speed:0~3000r/min

Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 9
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 0
Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 11

Cantilever crane


Application and features of Glass Lifting Equipment
* Suitable for moving insulating glass /tempered galss/glass curtain wall, on -site construction of glass deep processing and
solar photovoltaic glass
* It can select DC charging vacuum pump,equipped with battery device.
* Maximum bearing capacity is 400kgs
* Sucker diameter: 300mm,4 pcs

Max.load
300kg
Rotated angle
90°
Upright height
3400mm or 3900mm
Rail length
1000mm
Quantity of sucker
2 or 4
Air pressure
0.5MPa-0.8MPa

Glass Low E Film Removing Machine For Insulating Glass Processing Intelligent System 12
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Trading Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2021, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10+ powerful agents and made an endeavor together to build a famous international brand to the world. Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
