Product Details:
|
Name: | Smart Vertical Edge Deleting Machine | Diameter Of Grinding Wheel: | 200mm |
---|---|---|---|
Conveyor Height: | 500mm | Edge Deleting Width: | 10-50mm |
Transmission Speed: | 29m/min | Edge Deleting Speed: | 2-29m/min |
High Light: | 29m/min Glass Edge Grinding Machine,Deletion Glass Edge Grinding Machine,Vertical Edge Deleting Machine |
Insulating Glass Film Removing Low E Glass Edge Deletion Glass Automatic Low-E Film Removing Machine

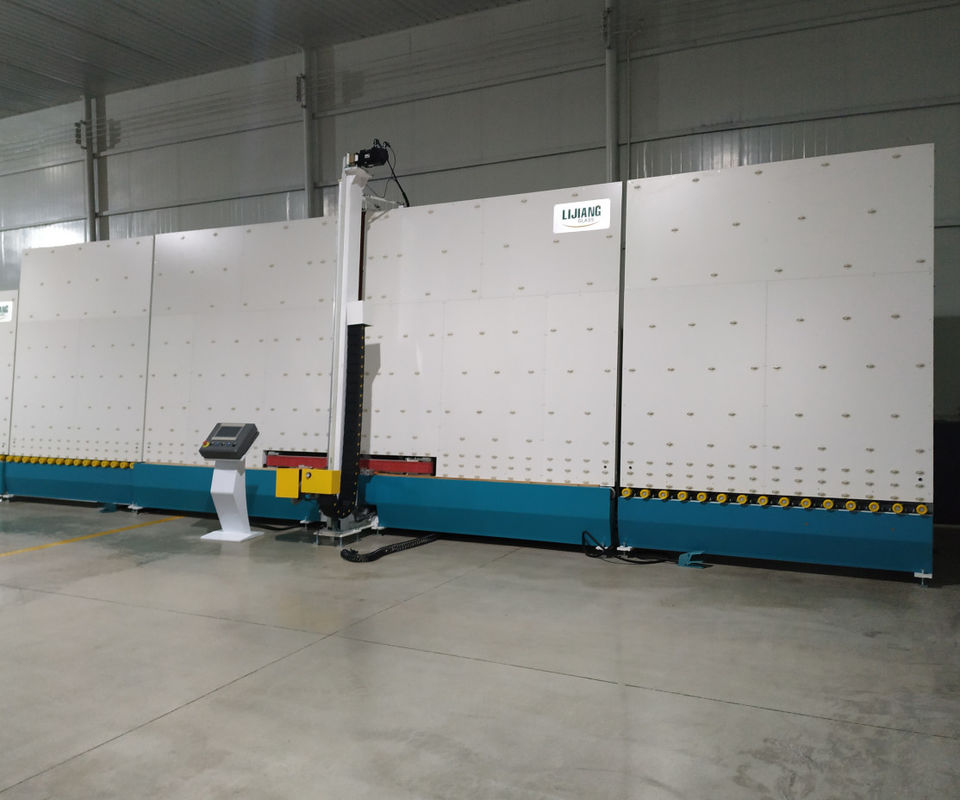

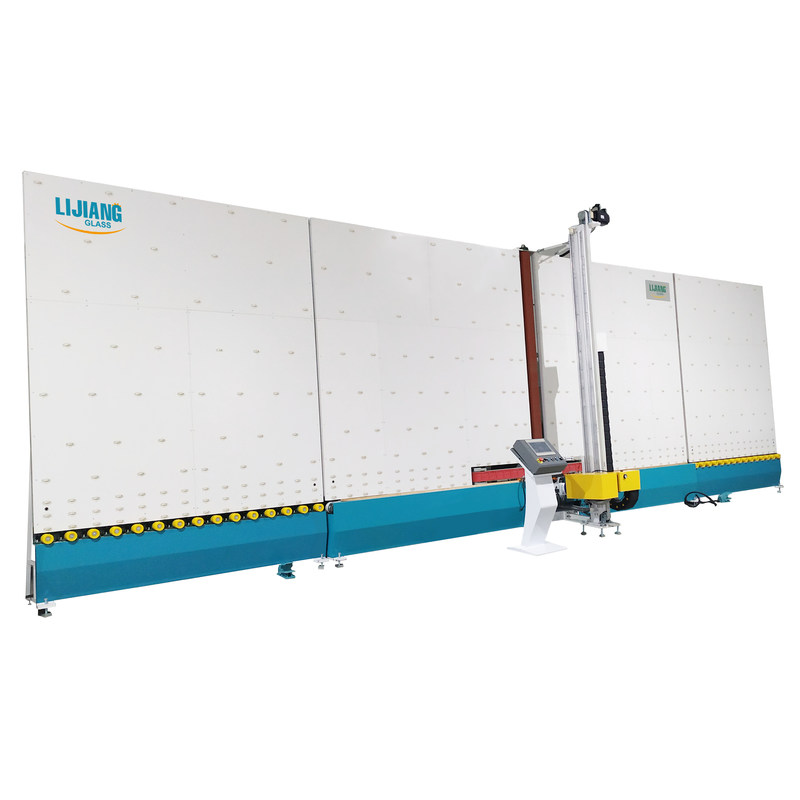

Smart Vertical Edge Deleting Machine LJCM2545
LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the
Low-e glass. The glass edge deleting machine adopts imported servo control system,
positioning accurately with smooth operation. High quality grinding wheels are durable,
can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150
mm arbitrarily.
Technical data of glass grinding and polishing equipment
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Glass thickness | 3 - 15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 15KW |
Dimension | Dimensions :9700×2500×3400mm |
Total weight | 3700KG |
Electrical parameters of automatic glass polishing machine
NAME | ORIGIN | BRAND |
Servo motor | Taiwan | TAIDA |
PLC | Taiwan | TAIDA |
Pneumatic component | Taiwan | AAIRTAC |
Low pressure electricity | Germany | SIEMENS |
Circuit breaker | Germany | SIEMENS |
Sensor switch | Korea | AUTONICS |
Approach switch | Korea | AUTONICS |
Limit switch | Taiwan | TEND |
Connector | Germany | SIEMENS |
Frequency converter | France | SCHNEIDER |
Main Button | France | SCHNEIDER |
Intermediate relay | Japan | OMRON |
Main feature of digital glass printing machine
• Two-way glass access
• Delete double and triple silver low-e glass
• Automatically measure glass size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
