Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent

Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent

Low E Film Removal Machine

glass Low E Film Removal Machine

Intelligent Low E Film Removal Machine

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJCM2545

Contact Us
Request A Quote
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent
Product Details
Voltage:
380V 50Hz
Power:
15kw
Dimension(L*W*H):
9700*2500*3400
Weight:
2500 Kg
Glass Thickness:
3-19mm
Highlight:

Low E Film Removal Machine

,

glass Low E Film Removal Machine

,

Intelligent Low E Film Removal Machine

Payment & Shipping Terms
Minimum Order Quantity
one set
Price
$37,000 a set
Packaging Details
Wooden boxes and containers
Delivery Time
12 work days
Payment Terms
L/C, T/T
Supply Ability
5 units per month
RELATED PRODUCTS
Good price Vertical Low E Glass Film Edge Deletion Machine With Servo Motor Control online

Vertical Low E Glass Film Edge Deletion Machine With Servo Motor Control

Get Best Price
Good price Insulating / Low E Glass Deletion Glass Edge Grinding Machine Automatic online

Insulating / Low E Glass Deletion Glass Edge Grinding Machine Automatic

Get Best Price
Good price Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent online Video

Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent

Get Best Price
Good price Smart Vertical Four Axis Low-E Glass Edge Grinding Machine Remove The Film online

Smart Vertical Four Axis Low-E Glass Edge Grinding Machine Remove The Film

Get Best Price
CONTACT US
Contact Now
Product Description
Product Description

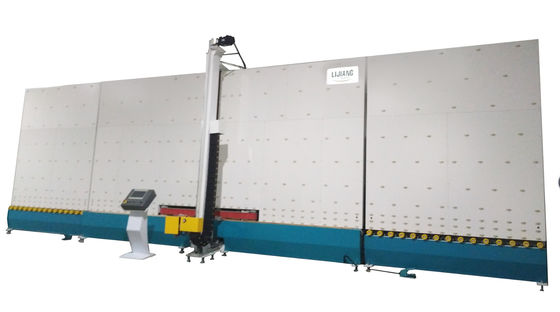

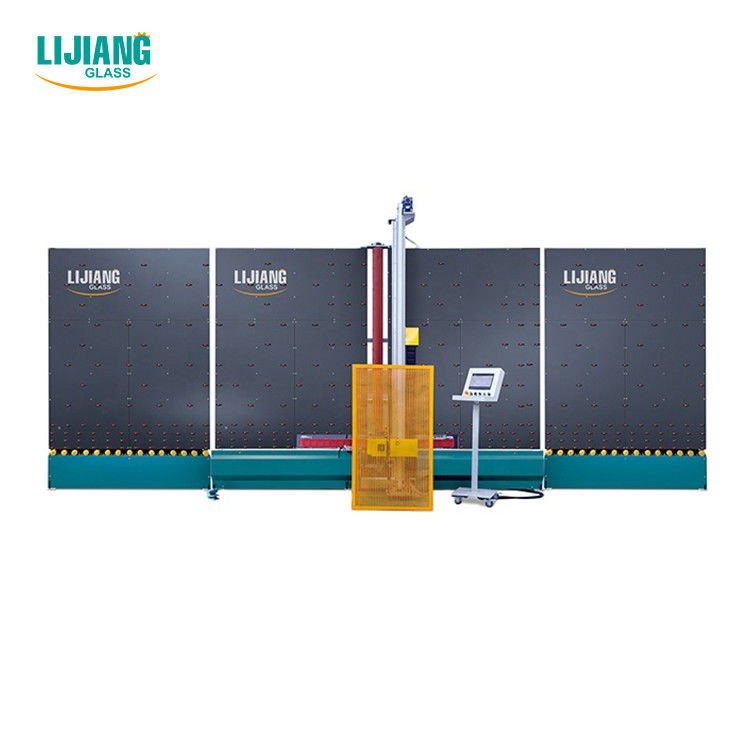

LJCM 2545 Smart low-e glass film deletion machine is used to delete the four sides low-e film on low-e glass, to make double glazing glass. The low-e glass deletion machine has 5 servo motor and 3 frequency converter to control the machine working. The machine can grind single silver, double silver and triple silver low-e glass film.
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 0
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 1
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 2
Max. glass processing size
2500*4500mm
Min. glass processing size
400*280mm
Glass thickness
3-15mm
Diameter of grinding wheel
200mm
Conveyor height
500mm
Edge deleting width
10-50mm
Transmission speed
29m/min
Edge deleting speed
2-29m/min
Abrasive wheel width
10/12/15mm
Glass thickness
3 - 15mm
Grinding wheel speed
0~3000r/min
Total air consumption
100L/ min
Air pressure
≥0.8MPa
Total power
3P 380V 50Hz 15KW
Dimension
Dimensions :9700×2500×3400mm
Total weight
3700KG

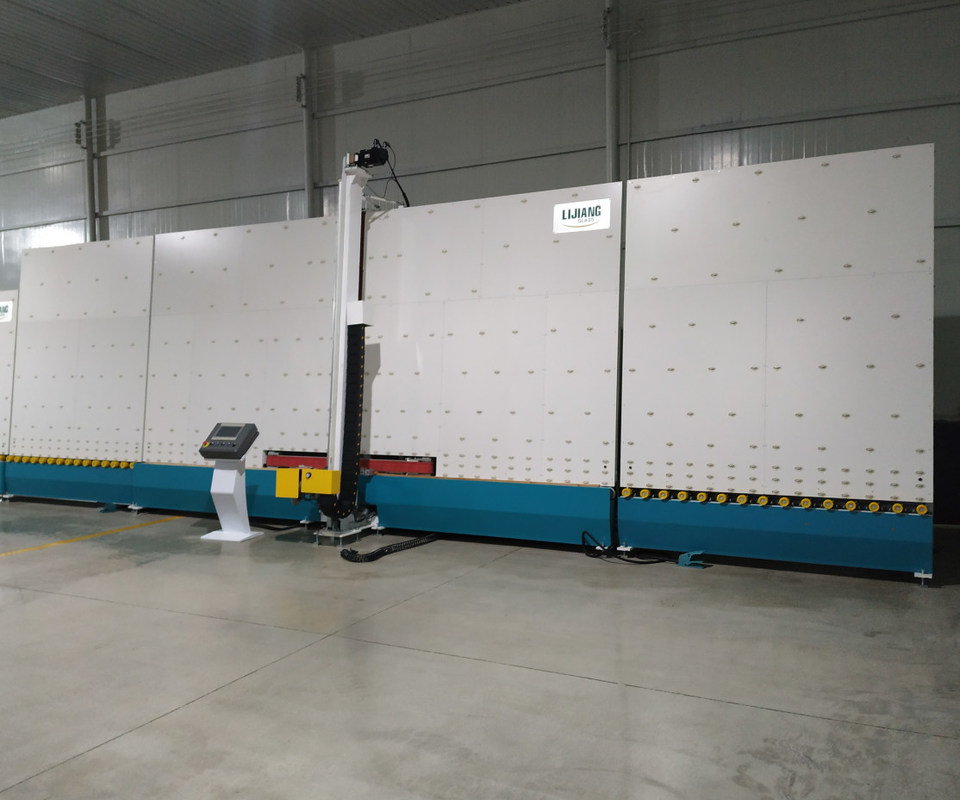

Detailed Images
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 3
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 4
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 5
Fast Automatic Insulating Glass Low E Film Removal Machine Intelligent 6
