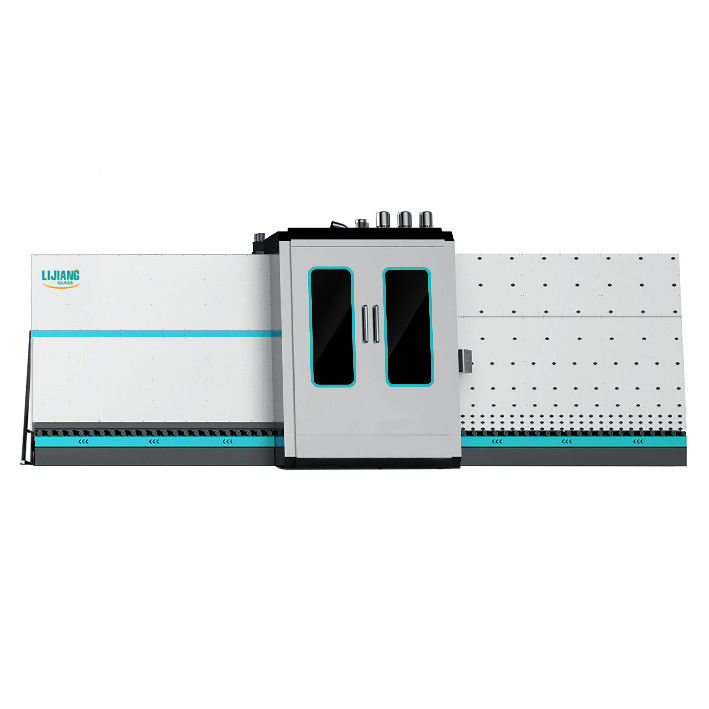

Building Glass Insulating Glass Washing And Drying machine Cleaner Machinery

High quality building glass insulating glass washing and drying cleaning cleaner machinery from Jinan LIJIANG Glass

Washing section of   flat glass washing machine

• Materials

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.

The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.

• Six Brushes

It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass .

• Noise reduction device

The noise can be controlled below 90 decibels by using nylon gear and sponges.

• Water heating system

Adopts air heating system, use soft water to wash glass clearly.

5. Automatically recognize glass thickness

1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.

• . There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

Inspection section  of  washing machine for glass

1.The checking part uses LED tubes to check whether the glass is clean or not.

Main feature of  washing machine for glass

l Automatic detect low-e & high performance glass

l Wash online and offline low-e glass, automatically recognizes Low-e film

l The air knife can automatically adjust the width according to the glass thickness

l Using intelligent intermittent energy-saving working methods

l Hierarchical type washing system

l Water tank automatic temperature control, water replenishing system

European silencer system&stainless steel drying system

Technical data  of  used glass washing machine

Electrical parameters  of  high performance glass
