Glass Silicone Extruder Machine For Double Glass Units

Glass Silicone Extruder Machine For Double Glass Units
Glass Silicone Extruder Machine For Double Glass Units
Glass Silicone Extruder Machine For Double Glass Units Glass Silicone Extruder Machine For Double Glass Units Glass Silicone Extruder Machine For Double Glass Units Glass Silicone Extruder Machine For Double Glass Units Glass Silicone Extruder Machine For Double Glass Units

Large Image :  Glass Silicone Extruder Machine For Double Glass Units

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJST02A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 12000 USD/SET
Packaging Details: plastic film
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH

Glass Silicone Extruder Machine For Double Glass Units

Description
Name: Glass Sealant Extruder Working Air Pressure0.3-0.6MPa: 0.3-0.6MPa
Sealant Spreading Pressure: 15-20MPa Sealant Volume: 4L/min
Air Pressure: ≥0.8MPa Overall Dimension: 1100*950*1630mm
High Light:

Glass Silicone Extruder Machine

,

Silicone Extruder Machine For Double Glass

,

Double insulated glass manufacturing equipment

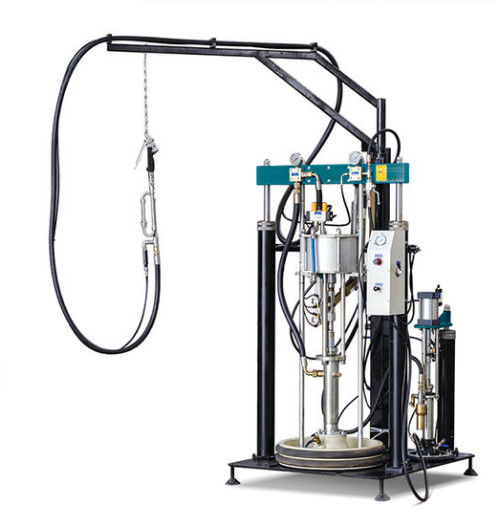

 Glass silicone extruder machine for double glass units LJST02A

Glass Silicone Extruder Machine For Double Glass Units 0

Main feature

Imported motor system to improve equipment efficiency

Sealant gun, stainless steel mixer

High pressure protect device

Anti-back flow control structure

Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm





Manual Gas Filling Machine LJCJ02N



Glass Silicone Extruder Machine For Double Glass Units 1



Main feature

It is used for filling Argon into insulating glass

High effectively, allowed for four pieces of IGU

When the gas is full, it will alarm and stop automatically

Can set and display the data of gas value



Technical data



Power supply 220V 50Hz
Total power 0.1kw
Dimension 620*439*700mm

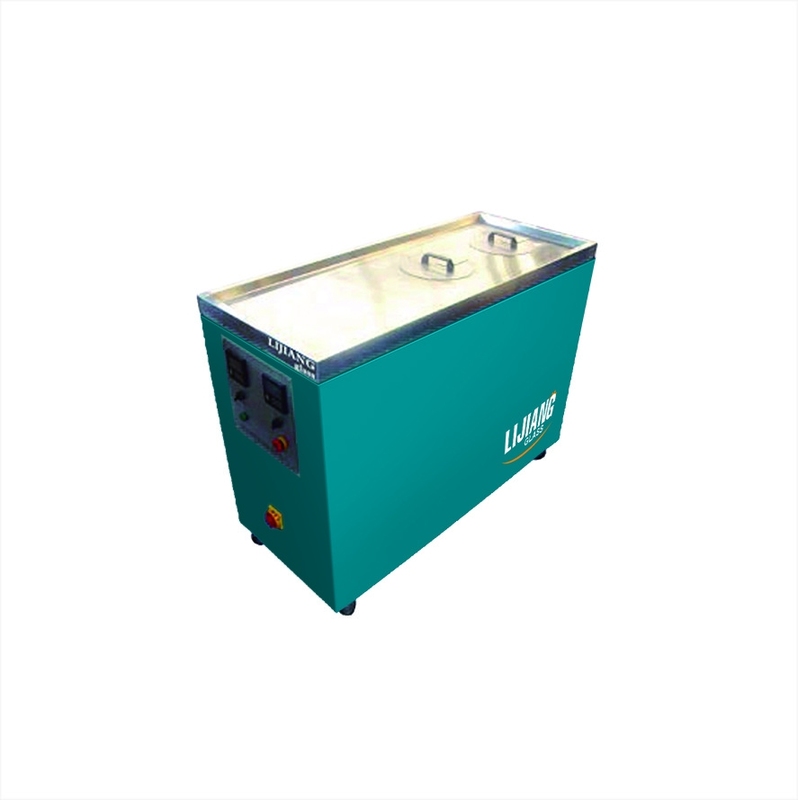

Freezer LJSGF01

Glass Silicone Extruder Machine For Double Glass Units 2



Main feature

It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass

Storing at low temperature,to prevent sealant solidify

Apply to polysulfide and silicone

Can be effectively reduced waste when cleaning the glue

Technical data

Max refrigerating temperature 70ºC
Min heating temperature -40ºC
Total power 3.8kw
Refrigerating <150min
Overall dimension 1550*60*1300mm





 Rotated Sealant Spreading Table LJSK02

Glass Silicone Extruder Machine For Double Glass Units 3

      Main feature

Easy operating, simple and flexible

It is used for fixing and rotating glass when manual coating the outside of IG glass

The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data



Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm



Spacer trip cutting machine LJQJ 02

Glass Silicone Extruder Machine For Double Glass Units 4Glass Silicone Extruder Machine For Double Glass Units 5Glass Silicone Extruder Machine For Double Glass Units 6

Main feature

It is used for cutting aluminum strip

Allowed to cut many spacers, keep high efficiency

Technical data

Power supply 380V 50Hz
Total power 0.55kw
Dimension 5000*1050*415mm
