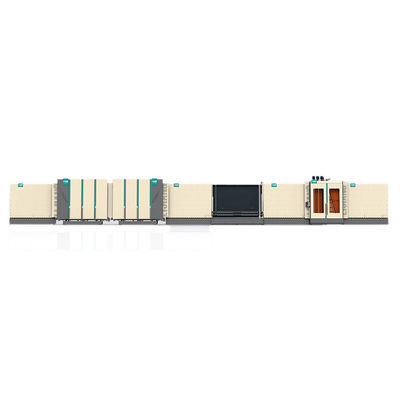

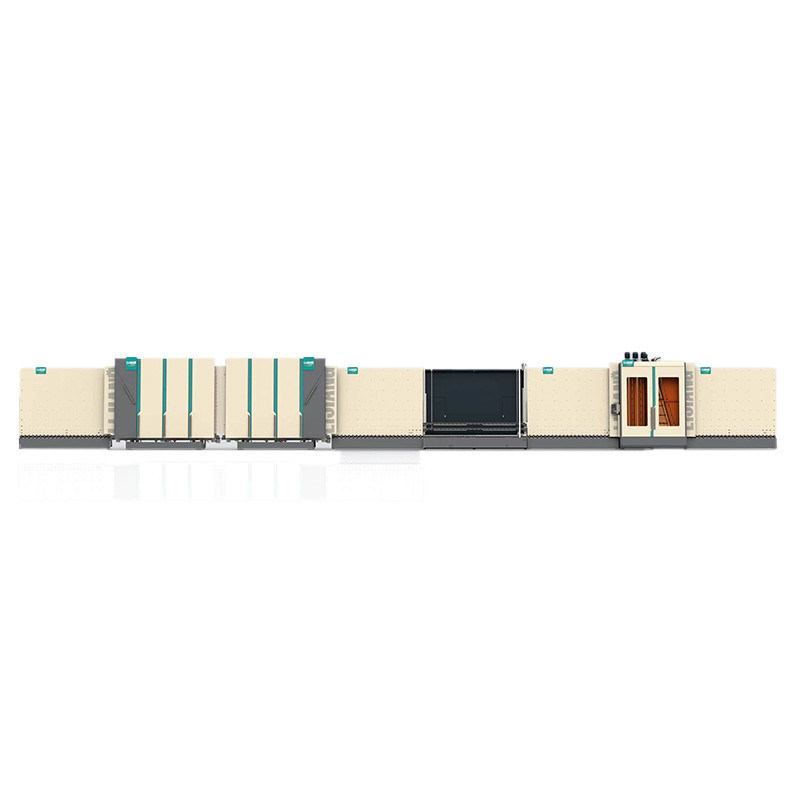

Intelligent Insulating Glass Production Line For Super Large Plate Double Inflatable

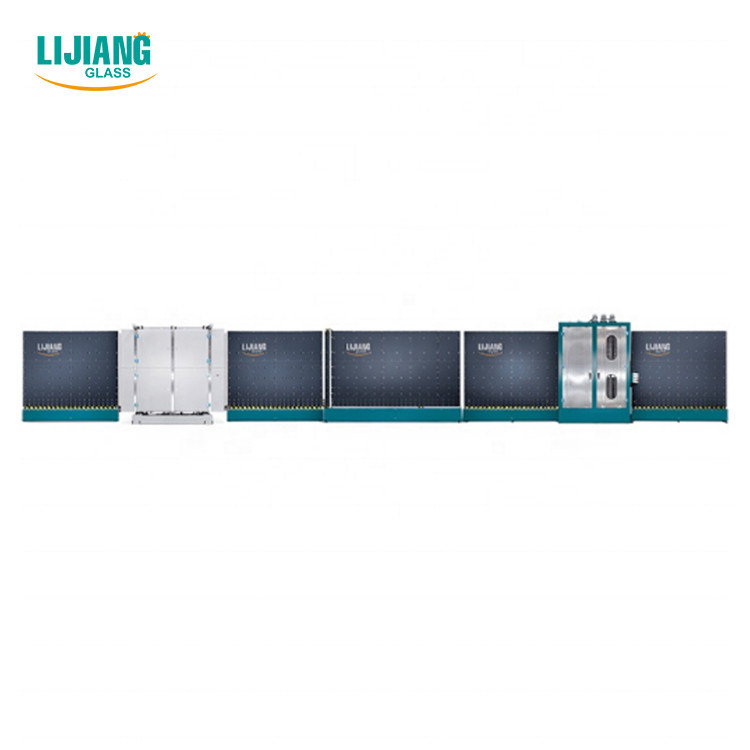

Large Image : Intelligent Insulating Glass Production Line For Super Large Plate Double Inflatable

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJTJ2540

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	90,000 USD per unit
Packaging Details:	container
Delivery Time:	15 working days
Payment Terms:	L/C, T/T
Supply Ability:	5 units per month

Contact Now

Intelligent Insulating Glass Production Line For Super Large Plate Double Inflatable

Description

Voltage:

380V

Power:

37kw

Weight:

7000kgs

Glass Thickness:

12-50mm

Highlight:

Intelligent Insulating Glass Production Line

Large Insulating Glass Production Line

Inflatable Insulating Glass Production Line

Intelligent production line for super large plate double inflatable double plate pressing hollow glass processing
Product Description
LJBZ2535 Automatic Insulating Glass Production Line
The whole LJBZ2535 Insulating Glass Production Line has 7 sections:  01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section. Optional Functions:  •Step glass with optional edges •Shaped glass •Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
The second part: the washing and drying section.
In this glass cleaning section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.
The 6th parts: the pressing and gas filling section
In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC)  Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.
Above information is the Brief Introduction of Jinan LIJIANG Auto IG Line.
If customers want to know more special details, please contact us directly.
Advantages & Features

Benefits & Advantages

Adopt SIEMENS control system, keep stable performance PLC control system, touch screen interface Automatically adjust the depth of glue with digital display Using servo to control system, modular function, superposition function Applicable to produce stepped IG, triple IG and shaped IG Two pieces of IGU can be made and filled with argon gas in one time (Optional) Min & Max glass sizes can be optional European design concept, simple and smart operation; the world-famous brand of core components, ensure stable operation and long service life; It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass; Large glass processing size, various models and customization available; Large production capacity, output 1,000pcs in working days; It can be used for two-layer, three-layer, pad and glass with irregular shape; Automatic air gas filling during the glass paper assembly process.
 The coating inspection

To avoid the Low-E glass or Coated glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)
 The pressing box uses the high precision servo motor.
The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.
 It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.
It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass cleaning.
 The whole washing machine all uses #304 stainless steel materials
The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.
 Air floating technology - Optional
The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The equipment adopts the new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
 The first one to use adjustable points to ensure that the platen will never deform.
The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no more others suppliers could guarantee that the pressing board will remain vertical andstraight all the time after used over 10 or 20 years.
Above information is the special details from Jinan LIJIANG Glass.
If customers want to know more special details, please contact us directly.
Main Technical Parameter

			Item.

			Spec.

			Max.glass size

			2500mm*4500mm

			Min.glass size

			280mm*400mm

			Glass thickness

			3-15mm / 19mm

			Insulating glass thickness

			50mm / 60mm

			Glass washing speed

			2-10m/min

			Glass conveyor speed

			45m/min

			Washing brushes

			3 pairs

			Water supply

			Water consumption:0.5t/h conductivity:40μs/cm

			Air supply

			Flow: 0.8m/min

			Air pressure

			≥0.8MPa

			Total power

			3P 380V 50HZ 40KW

			Dimension

			23500*3500*3700mm

			Weight

			6500kg

			Name

			Brand

			Servo motor

			Germany Simens

			Servo driver

			Germany Simens

			Servo motor

			Germany Simens

			Servo motor

			Germany Simens

			PLC

			Germany Simens

			Low voltage component

			Germany Simens

			Frequency converter

			Germany Simens

			Switching power supply

			Taiwan MW

			Optoelectronic switch

			Korea Autonics

			Pneumatic component

			Taiwan Airtac

			Pneumatic component

			Taiwan Airtac

			Touch screen

			Taiwan Wenview

			Travel switch

			Taiwan (TEND)

			Relay

			Japan Omron

			Button and indicator light

			French Schneider
