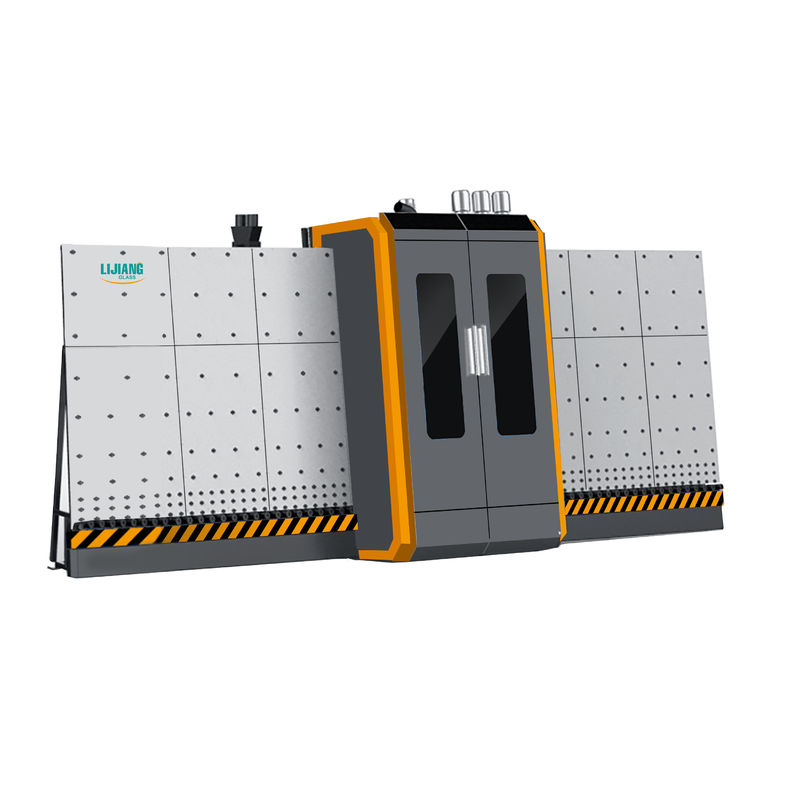

Coated Low E Tempered Vertical Glass Washing Machine Insulating Glass

Low E Vertical Glass Washing Machine

Tempered Vertical Glass Washing Machine

Insulating Vertical Glass Washing Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Request A Quote

Product Details

Machine Name:

Vertical Glass Washing Machine

Max Glass Size:

2000mm*2500mm

Min Glass Size:

400mm*280mm

Glass Thickness:

3-15mm

Pre-washing Machine:

Optional

Brushes Wire:

0.1mm

Brushes Motor:

3 Motors

Air Knife:

Adjustable

Highlight:

Low E Vertical Glass Washing Machine

Tempered Vertical Glass Washing Machine

Insulating Vertical Glass Washing Machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

15 Working Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on.

Supply Ability

15 sets per month

Processing Hollow Glass 10m/Min Vertical Glass Washer

Get Best Price

Video

Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Get Best Price

Video

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Get Best Price

Video

2500mmx3000mm Glass Washing Machine Use For Window Glass Cleaning

Get Best Price

Contact Now

Product Description

Automatic Vertical Coated Low-E Tempered Insulating Glass Washing and Drying Machine Optional Double Air Knife Washing on Sale

Product Description

Jinan LIJIANG 2535 Insulating Glass Washing Machine

LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Advantages & Features

Advantages & Benefits

☆The computing device can smooth normal flat glass or covered glass with a thickness of 3~12mm;

☆The cleansing place makes use of three pairs of brushes or elective four pairs of brushes (or imported gentle brushes, coating or LOE special), two or 4 water cleaning; ☆The computer adopts an inclined vertical structure, the flat glass is positioned on the conveyor roller, passes via the feeding section, cleansing and drying section, and accomplishing the discharging area to entire the glass cleansing task;

☆The cleansing location and the water tank are made of stainless metal and corrosion-resistant materials; the inclined wind knife with robust wind can dry the glass surface;

☆The discharge part is geared up with inspection lamps to test the cleansing first-class of the glass. The desktop is convenient to operate, and the operation buttons are centred on the working table;

Configuration of three pairs of brushes

Six excessive temperature resistant wire brushes with diameter of 180mm + 4 sprays, the glass is cleaned and the pace is quickly (10-12m per minute). The first brush is geared up with two bristles and is lifted through a cylinder.

Water rust and corrosion resistant

The components and screws in the cleansing field that are in contact with water are made of stainless steel, copper, water-proof aluminum, nylon and different materials. They will no longer rust after long-term use and are convenient to maintain.

High efficiency air knives

Two pairs of stainless metal air knives are outfitted with high wind energy and top drying effect, with heating system. The special circulating windshield drying device is energy-saving and low-noise (the wind temperature can attain forty levels barring heating in winter).

Stainless steel structure

The air-drying field glass assist body is uniformly welded by means of high-strength stainless steel, and the total washing components of glass washing and drying tools will be used for a lengthy time barring rust and will now not purpose secondary glass pollution.

Main Technical Parameter

Item.	Spec.
Max glass size	2000mm*2500mm
Min glass size	280mm*400mm
Washing speed	2~6m/min
Glass thickness	3 - 15mm
Washing speed	Warm Season: 8 - 10m, Cold Season: 6 - 7m
Power	18.5kw
Weight	3600Kgs
