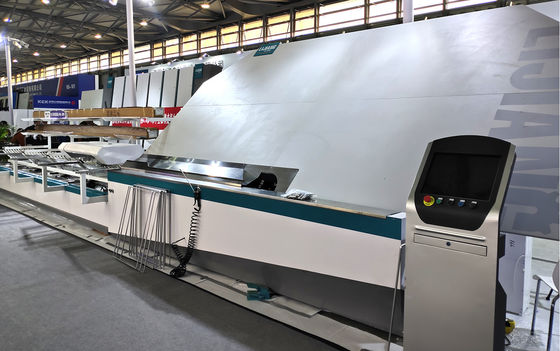

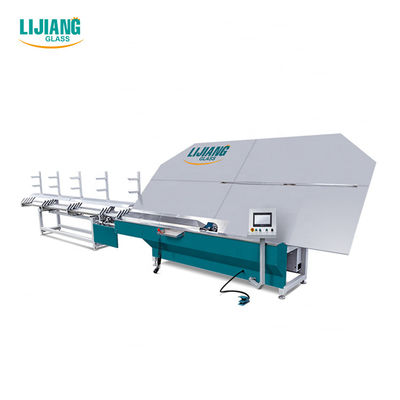

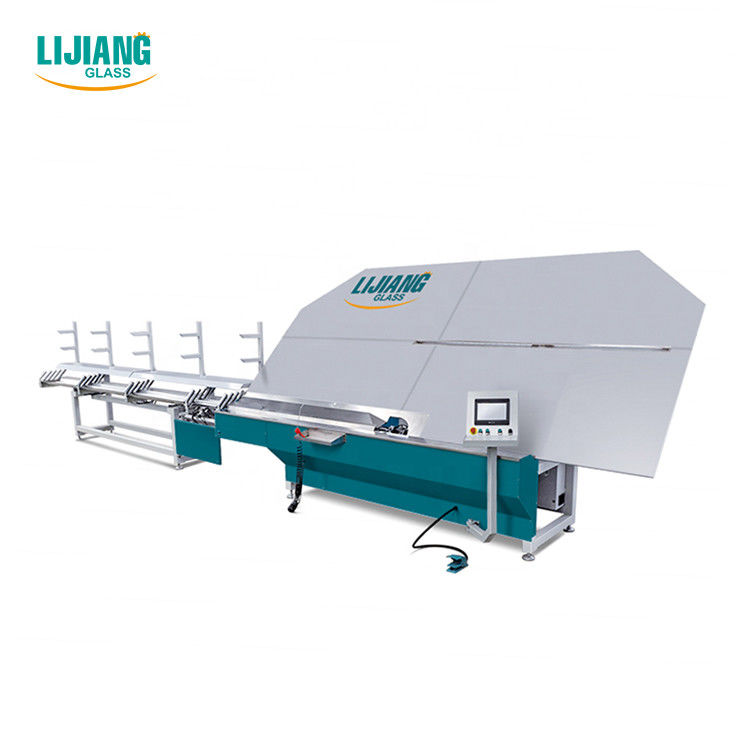

Automatic Plastic Warm Edge Spacer Bending Machine For DGU

Large Image : Automatic Plastic Warm Edge Spacer Bending Machine For DGU

Product Details:

Place of Origin:	China
Brand Name:	LIijiang Glass
Model Number:	LJZW2020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 25000.00 - 3000.00
Packaging Details:	Container/wooden box
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	50sets/month

Contact Now

Automatic Plastic Warm Edge Spacer Bending Machine For DGU

Description

Certification:	CE	Voltage:	380V 50HZ
Condition:	New	Dimension(lwh):	10500H2200W2500H Mm
Weight:	1580KG	Power(w):	2.5KW
High Light:	Warm Edge Spacer Bending Machine , Spacer Bending Machine For DGU , DGU automatic spacer bending machine

Automatic Plastic Warm Edge Spacer Bending Machine for DGU

Automatic spacer bending machine for stainless steel bars

1•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
•Bend spacer frames continuously

•Aluminum spacers are available in sizes of 6A-27A
•Different bending tools for different sizes of spacers
•Pause and Reset device for handling equipment failures
•Bend aluminum spacer, smooth stainless steel, warm spacer

•Connect to ERP system (Optional)
•USB input function, read the excel format file directly
•Automatically drill holes for filling argon gas (Optional)
•Spacer printing code function (Optional)
•Printing label sticker function (Optional)

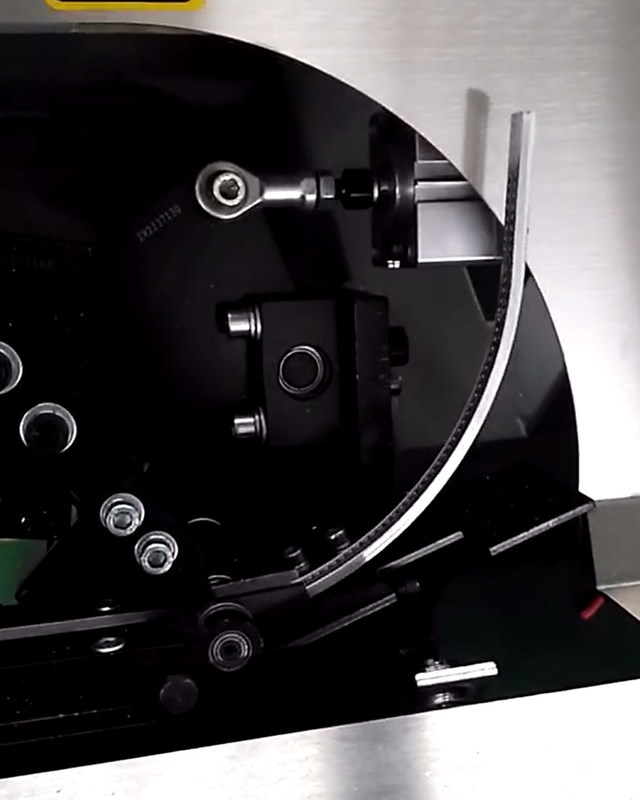

•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Automatic Plastic Warm Edge Spacer Bending Machine For DGU 0

Automatic Plastic Warm Edge Spacer Bending Machine For DGU 1

Max. bending size	2000mm*2000mm
Min. bending size	250mm*200mm
Stainless steel spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	17s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

Automatic Plastic Warm Edge Spacer Bending Machine For DGU 2

Details introduce:

•Spacer printing code function (Optional)

•2 or 12 groups of storages (Optional)

•Printing label sticker

function (Optional) •Bending stainless steel ( Optional)

•Bending warm spacer (Optional)

•Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)
