Product Details:
|
| Power: | 31 Kw | Dimension(L*W*H): | 6260*4800*3100 Mm |
|---|---|---|---|
| Weight: | 3940 Kg | Air Pressure: | ≥0.8MPa |
| High Light: | Vertical Glass Washing And Drying Machine,Four Seasons Glass Washing And Drying Machine,Super Fast Glass Washing Machine |
||

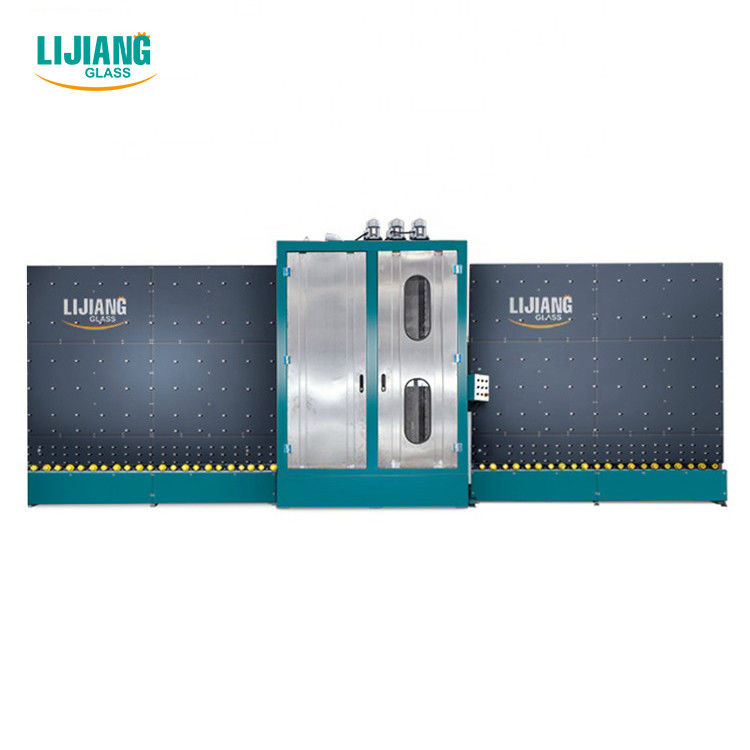

Vertical automatic four seasons usable glass washing and drying machine Super fast cleaning
Glass washing machine technical parameters
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted
by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure
that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)

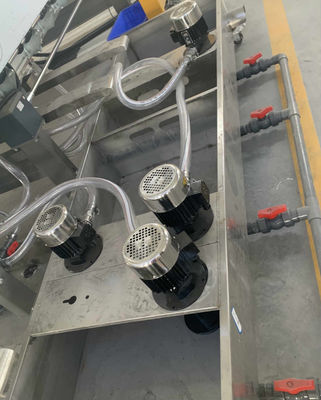

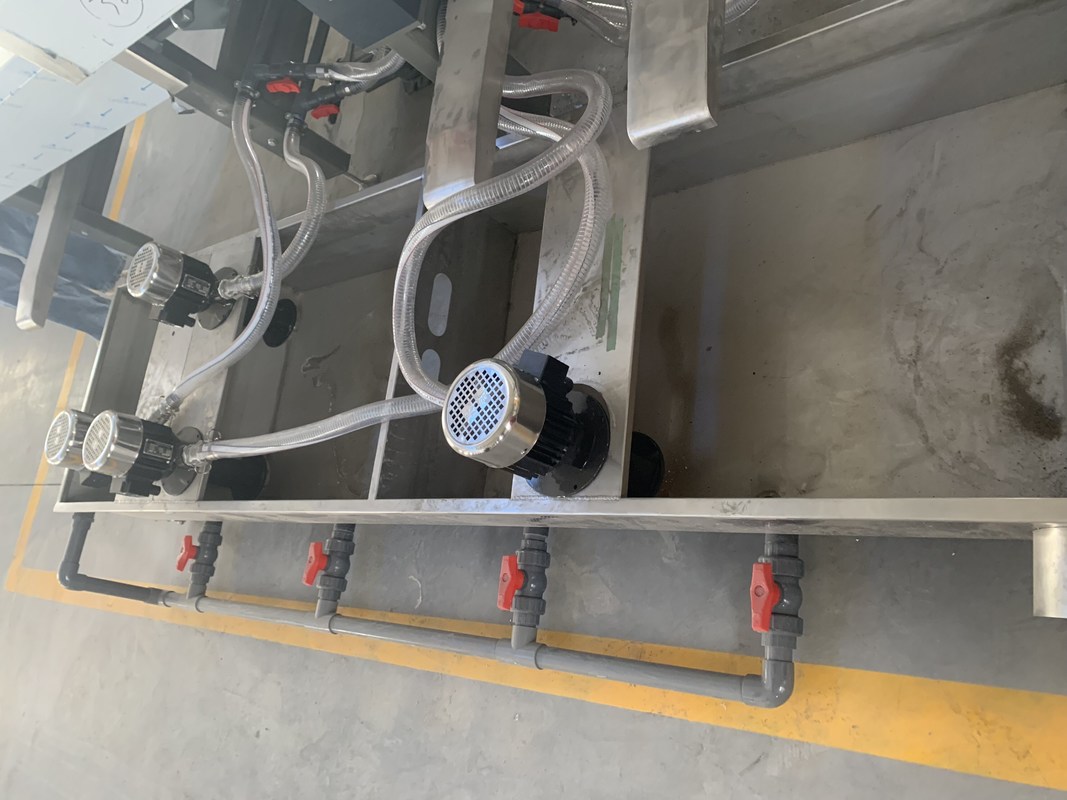

• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
1. Materials
The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.
The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
Technical data:
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
