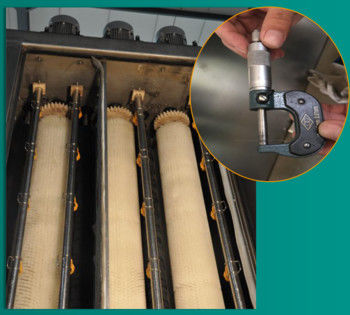

It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .
* In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
* The material in the washing and drying section all made by stainless steel.
* The main power consumption is mostly appear in the washing and drying section of the IG line.
* The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
* The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.
* The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
* The who drying machine use the sound insulation design. can reduce the noise.
* The material in the washing and drying section all made by stainless steel.
* The main power consumption is mostly appear in the washing and drying section of the IG line.
* The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
* The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.
* The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
* The who drying machine use the sound insulation design. can reduce the noise.
Technical data:
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
