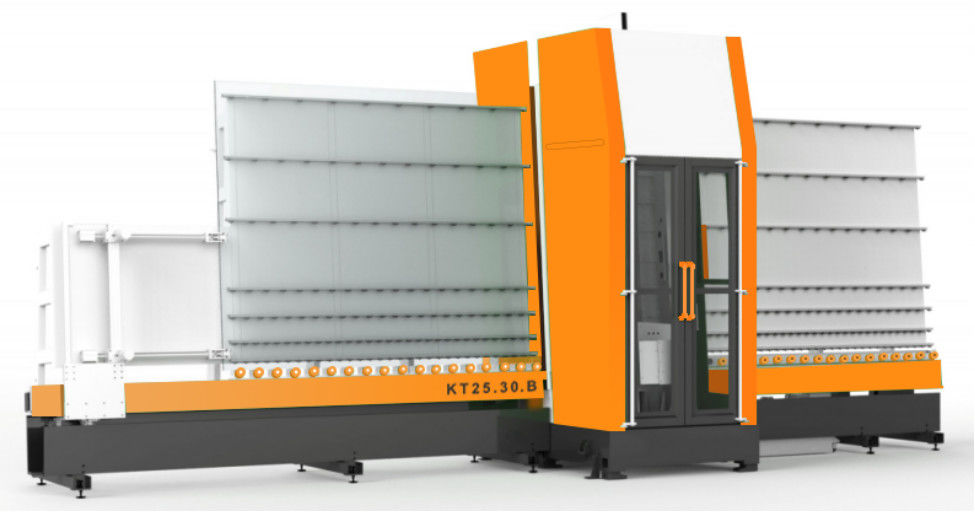

High End Vertical Five Ax CNC Glass Machine Vertical Drilling And Milling Machine

High-end Vertical Five-ax CNC Glass Machine Vertical Drilling And Milling Machine

1.1 Machine introduction

Vertical drilling and milling machine is a high-end vertical five-axis glass processing equipment, used for drilling, milling, grinding corner, edging and other processing of glass. The thickness of the glass that can be processed is 4-19mm. The equipment adopts a high-end numerical control system to precisely control each servo axis, coupled with the high rigidity and high stability of the whole machine structure, so as to realize high-speed and high-precision processing of glass. The completely self-developed CAM software has powerful functions. It can automatically generate processing technology for different processing graphics, and generate processing programs according to the specific technology. At the same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the difficulty of processing operations. , The requirements for operators are further reduced. The electrical components used in the equipment are all CE certified, and the connectors of the electrical components are waterproof to ensure safety.

Vertical drilling and milling machine are mainly used in: decorative glass, bathroom glass, architectural glass (frameless glass door, glass curtain wall, glass staircase), etc.

1.2 Main functions

Vertical drilling and milling machine is a composite glass processing equipment that can complete a variety of glass processing；

Counter-drilling: Due to the structure of the front and rear spindles of the vertical drilling and milling center, the equipment can realize high-speed counter-drilling before and after, so as to ensure the high-demand processing quality and accuracy;

Milling: simple and fast operation: the front and rear spindles can mill and grind the inner edge at the same time;

Grind corner: There are two grind corner methods: 1. Use the chamfering wheel directly, 2. Install the chamfering sleeve on the drill bit;

1.3 Structure

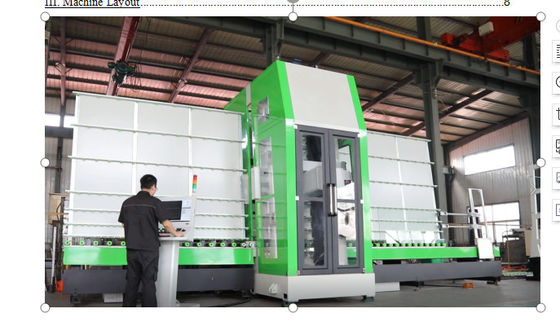

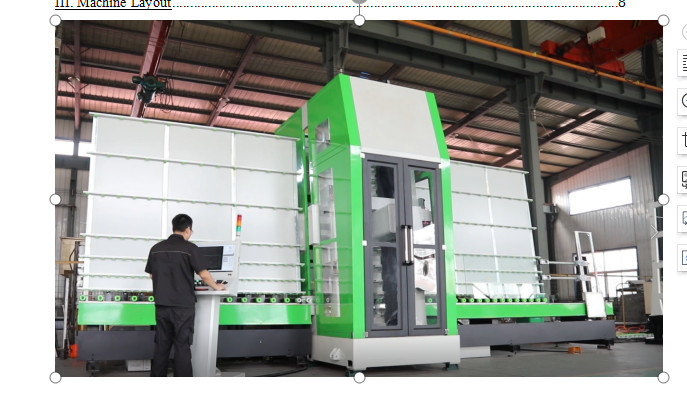

The vertical drilling and milling center has a small footprint and is easy to disassemble. It is mainly composed of a manipulator, a glass input end, a processing area, a glass output end and a tug at the bottom. The glass is placed on the input end tug, and the backrest of the input end is supported. The servo motor is connected to the drive gear of the reducer to provide power to the clamp. The clamp clamps one end of the glass and transports the glass to the processing area. After the glass reaches the processing area, drilling, milling and other processing are performed. During the processing, the front and rear spindles can automatically complete the tool change according to the processing technology, and automatically complete the processes of drilling, milling and grinding the inner hole. After processing, the clamps transport the glass to the output end of the tug, and finally the power output device transports the glass to the output end.

The X, Y, and V axes are driven by high-precision rack and pinion gears, and the Z and W axes are driven by high-precision ball screws. The X-axis controls the left and right movement of the glass, and the Y and V axes control the electric spindle and the sliding plate to move up and down along the front and rear vertical beams. , Z and W axes control the forward and backward movement of the electro spindle.

Structure advantages:

• Use high-precision rack and pinion transmission to achieve higher processing and fast moving speed；
• The feed of the electric spindle is driven by a screw rod to achieve higher transmission accuracy；
• Automatic lubrication device is used to lubricate transmission parts such as linear guides, racks, screw rods, etc., to improve the service life of the equipment；
