Product Details:
|
| Name: | Glass Washing And Drying Machine | Advantage: | Max Size Can Be Customeized |
|---|---|---|---|
| Material: | Stailess Steel | Washing Speed: | 2-10m/min |
| Minimum Glass Size: | 450*280mm | Flat Glassthickness: | 3-15mm |
| High Light: | 10m/min Horizontal Glass Washing Machine,IG Vertical Glass washing machine,10m/Min Flat Glass Washer |
||

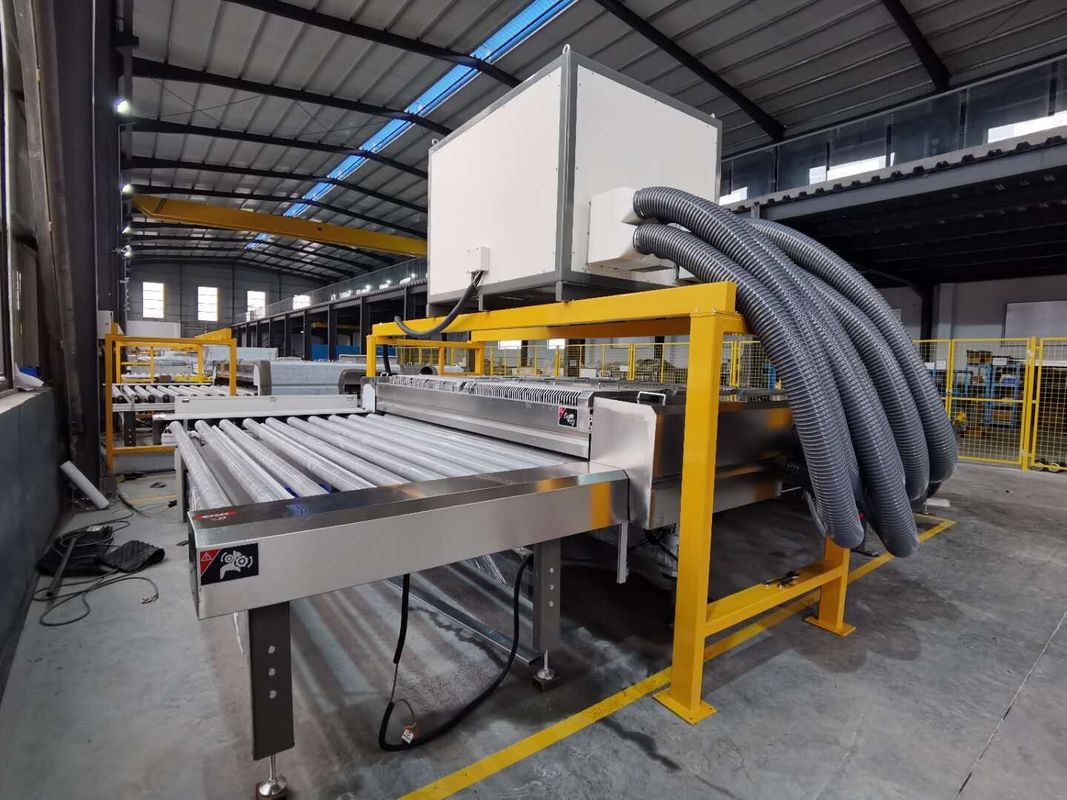

Automatic Horizontal Glass Washing Machine Flat Glass Washer and Vertical Glass washing machine
Automatic Horizontal glass washing machine for washing and also drying of glass products, performs automatic washing of products from two sides at the same time, via the upper and lower brushes. The equipment must perform the following operations:
- Glass loading (Automatic from the processing line);
- Glass washing (Automatic);
- Glass drying (Automatic);
- Unloading (Manual).
Pressure – 6 bar.
Pressure-4 bar.
Water tank details►
The washing part in contact with water is made of stainless steel
Air knives detail ►
Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)
High quanlity profile detail►
Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency
The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
Glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |

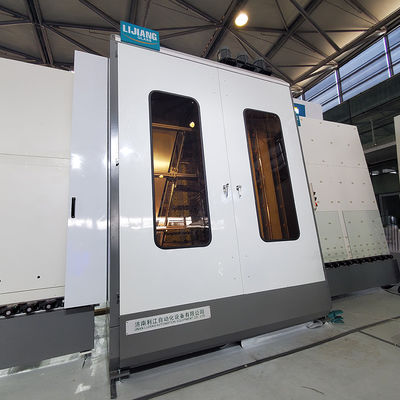

Automatic Vertical Glass washing machine
1. Overview of Auto Vertical Glass Washing and cleaning Machine
Auto Industry Flat glass washing machine is used for glass washing for processing Double glazing glass.Auto vertical washing and cleaning machine can complete the following functions: pre-cleaning, cleaning and drying of flat glass and low-e glass.It is in the production of slot aluminum insulating glass. Glass washing machine has the advantages of small occupation area, high efficiency, reliable performance and convenient maintenance.
2.Advantage of glass cleaning machine
•Using 3Pair of soft brushes with 0.1mm soft hair, can wash low-e glass
•Pre-washing (Optional)
•The air knife can automatically adjust the width of the air knife according to the thickness
•New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
•European silencer system
•The operation box with washing speed display, can accurately display washing speed (8-10m) •Water tank automatic temperature control, water replenishing system
•Stainless steel material
3.Main feature of vertical glass washing machine
4. Tech Parameters of Vertical Glass cleaning and Drying Machine
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
5. Detail of AutomaticGlass Washing Machine
