Product Details:
|
| Name: | Warm Edge Spacer For Insulating Glass Processing | Colour: | Customerized |
|---|---|---|---|
| Dilivery Time: | 10days | Material: | Sealant |
| Sample: | Can Be Support | Advantage: | New Technolgy Of Warm Edge |
| High Light: | Insulating Glass Warm Edge Spacers,Warm Edge Spacers For Bending Machine,Bending Machine warm edge spacer bar |
||

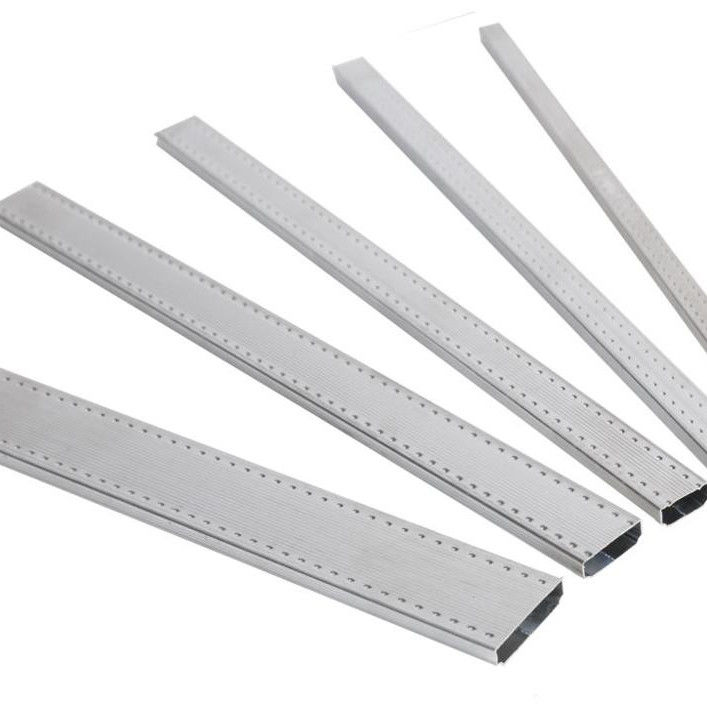

Insulating Glass Warm Edge Spacers For Spacer Bending Machine
Insulating glass warm edge spacers with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, windows and doors glass, trains, ships, aircraft, refrigerators.
Compared to the normal spacer bar the adcantage of warm edges
------Can reduce the heat transfer coefficient of the whole window
------Improve the dew resistance of insulating glass
------effectively reduce the possibility of glass self- explosion crack
Declare:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
.Rustless, corrosion, high brightness.
.Surface evenly, straightness, and no deformation and dimensional stability.
.Connected by only one straighter, good sealing with long lifetime.
limit deviation of peripheral wall thickness is ±0.025mm.
High strength, toughness, and with continuous bend to any angle of ending equipment aluminum frame.
Well arranged vents.
To ensure that activities of molecular sieve, guarantees and various types of adhesive with excellent adhesion.
Energy saving and environmental protection, low heat transfer coefficient
Three Kinds : All stainless , Stainless+glassfiber , All glassfiber
The color and thickness is varities and it can be customized .
| Model | Thickness(mm) | Length(m) |
AmountPer box(m) |
Package dimensions(m) |
| 9A | 0.2-0.35 | 5M | 1100 | 5×0.16×0.11 |
| 12A | 0.2-0.35 | 5M | 880 | 5×0.16×0.11 |
| 14A | 0.2-0.35 | 5M | 770 | 5×0.16×0.11 |
| 15A | 0.2-0.35 | 5M | 660 | 5×0.16×0.11 |
| 19A | 0.2-0.35 | 5M | 550 | 5×0.16×0.11 |
| 20A | 0.2-0.35 | 5M | 490 | 5×0.16×0.11 |
| 22A | 0.2-0.35 | 5M | 450 | 5×0.16×0.11 |
| 24A | 0.2-0.35 | 5M | 400 | 5×0.16×0.11 |
| 27A | 0.2-0.35 | 5M | 350 | 5×0.16×0.11 |
Other product of LIJIANG GLASS
Aluminum automatic spacer bar bending machine for insulating glass
Features of Aluminum Spacer frame Bending Machine
• 4 or 12groups of spacer racks
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Bend spacer frames continuously
• Automatically avoid the pins while bending and cutting
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes of 6A-27A
• Siemens 1200 PLC control system with fast working speed
• Pause and Reset device for handling equipment failures
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Different bending tools for different sizes of spacers
• USB input function, read the excel format file directly Optional functions
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Technical Data of Automatic Aluminum spacer bar bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Overview of automatic aluminum spacer bending machine
Double glazing glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.
Detail of Automatic Aluminum spacer frame bending machine
1.Automatic Aluminum spacer frame bending machine have Four or Twelve different spacer size storage units can choose.
2.Adopt German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.
3. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm.
4Automatic spacer Support continuous bending , it automatically avoid spacer -connection while bending and cutting
4.Automaticlly cut and feed Aluminum spacers
5.Heavy duty connectors ,convenience and safety for installation and debugging
6.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
7.USB input function ,it can read the excel data directly
8.Spare parts of all machine have ID code ,convenient for after-sale service
9.The special machine hand device is used to bend big spacer frame
Related Product
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
