Automatic Insulating Glass Production Line Double Glass Line With Gas Filling

Automatic Insulating Glass Double Glass Line With Gas Filling for insulated glass processing

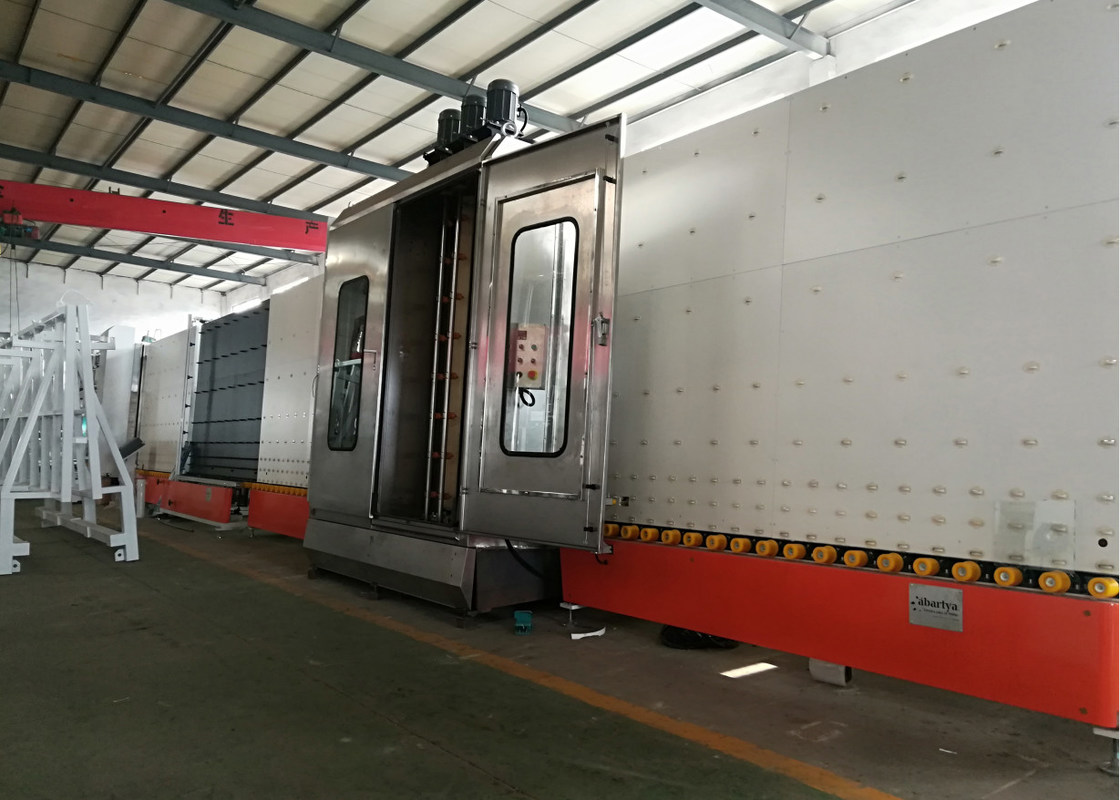

The details of the gas filling IG line :



1. German Siemens PLC control system, stable performance
2. New design of air knife, intelligent energy saving
3. 6 pieces of brushes are all used soft brushes
4. Automatically recognize low-e glass film
5. Display the washing speed online
6. Air knife of the washer can be adjusted automatically
7. Inspection lamps can be changed
8. Automatic centering of aluminum frame
9. Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
10. Adopts conveyor belt to transfer glass, uses servo motor to press glass
11. The pressing plate can be opened for easy maintenance
12.Pressing board with adjustable structure to guarantee long-lasting service life


Gas filling festures:

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

Customers :

Sales service :

Optional specification of IG line :

1. IG line with gas filling

2000mm*2500mm / 2500mm*3200mm / 3000mm*4000mm / 3300mm* 4000mm

2. IG line without gas filling

2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm / 2500mm*4500mm/ 3000mm* 4000mm/ 3300* 6000mm

3. IG line with double filling and pressing

2500mm*3500mm

4. Glass thickness for single flat glass : 3 - 15mm / 3- 18mm / 3-19mm

5. IG thickness : 12 - 50mm / 12 - 60mm

Vertical low-e glass film deletion machine for making double glazing glass

Vertical low-e glass film deletion machine for making double glazing glass is used to delete the film on the low-e glass with fast speed. The deletion machine can delete rectangle glass and shape glass, it has 6 servo motors.




1. What is the function of the film deletion machine?

The main function is to remove the edge film of Low-e glass

2. Why should delete the low-e glass film?

To prevent the film from oxidizing when the insulating glass is synthesized.

3. What glass needs to be deleted?
When off-line Low-e glass

4. In addition to using the vertical film deletion machine to delete film, what other ways can remove film?

Manual, horizontal edge grinding machine, bilateral edge grinding machine, four-edge edge grinding machine, cutting machine, etc

5. What are the advantages of using our film separator? What are the disadvantages? What are the advantages of using other methods? What are the disadvantages?

With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass. Disadvantage is to increase the length of the whole line, cover a large area.
Manual film removal effect is poor, slow speed. The others are film removal before toughening, because the heating time of white glass and Low-e glass during toughening is not the same, it will cause glass deformation, advantage does not need too high investment.

6. Is glass before toughening divide film is good still after toughening divide film is good? Why is that?

After toughening, film removal is good, glass deformation is small.

7. What brand of PLC, servo motor driver, frequency converter is used to deletion machine?

At present, delta PLC servo motor and drive, inverter delta and schneider

8. How many sections does the film deletion machine divide into? What are the dimensions of each segment? What are the roles?

The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.

9. Can the device distinguish the low-e film surface?

The film layer can be detected automatically.

10. Do you need to input the length and width of the glass when using the film remover?

No, it's automatically detected.
