Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine

Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine
Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine

Large Image :  Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine

Product Details:
Place of Origin: China
Brand Name: LIAJIGN
Certification: CE
Model Number: 2500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 35000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 50

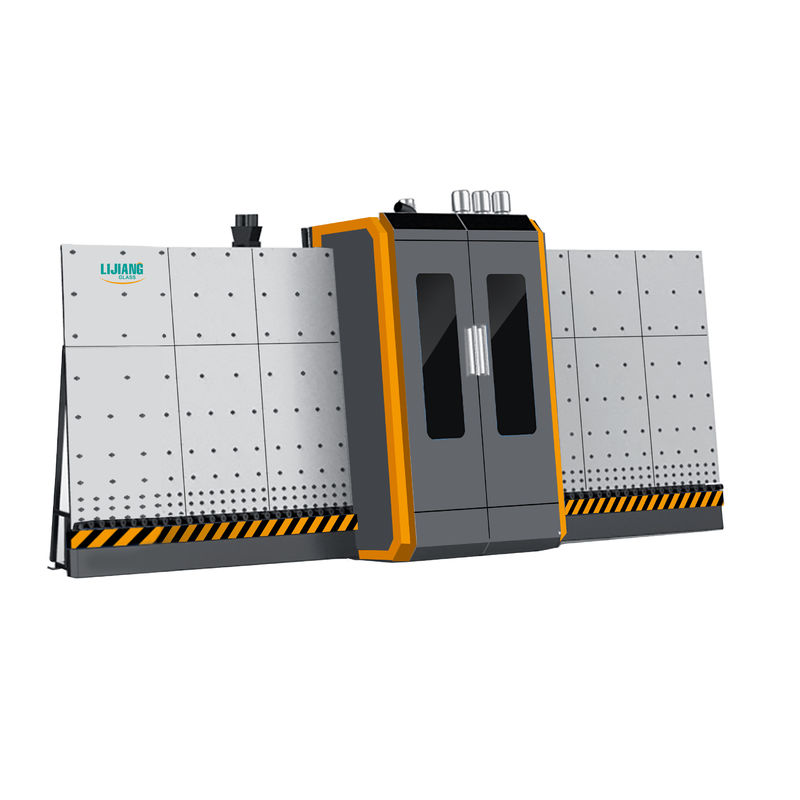

Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine

Description
Name: Vertical Glass Washing Machine 2500 Glass Thickness: 3-15mm
Glass Washing Speed: 2-10m/min Glass Conveyor Speed: 15m/min
Washing Brushes: 3 Pairs Water Supply: Water Consumption:0.5t/h Conductivity:40μs/cm
High Light:

Open Top Vertical Glass Cleaning Machine

,

Low E Vertical Glass Cleaning Machine

,

Low E Glass Washing Drying Machine

Glass washing machine OPEN TOP vertical glass cleaning machine LOW E glass washing drying machine


Main feature of washing machine production line

l Automatic detect low-e & high performance glass

l Wash online and offline low-e glass, automatically recognizes Low-e film

l The air knife can automatically adjust the width according to the glass thickness

l Using intelligent intermittent energy-saving working methods

l Hierarchical type washing system

l Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system

Technical data of  glass processing machinery


Max.glass size(Optional)2500*3500mm
Min.glass size280*450mm
Glass thickness3-15mm
Glass washing speed2-10m/min
Glass conveyor speed15m/min
Washing brushes3 pairs
Water supplyWater consumption:0.5t/h conductivity:40μs/cm
Air supplyFlow: 0.8m/min
Air pressure≥0.8MPa
Dimensionsapproximately 6260*4800*3100
Weight3940kg
Total power3P 31KW


Electrical parameters of  glass arising machines

NAMEORIGINBRAND
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Photoelectric switchKoreaAUTONICS
Button and indicator lightFranceSCHNEIDER
Touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON
Transfer motorTaiwanLINHAI
Brush motorChinaQINGHUA
Water pumpChinaLINGXIAO
Pneumatic ComponentsTaiwanAIRTAC

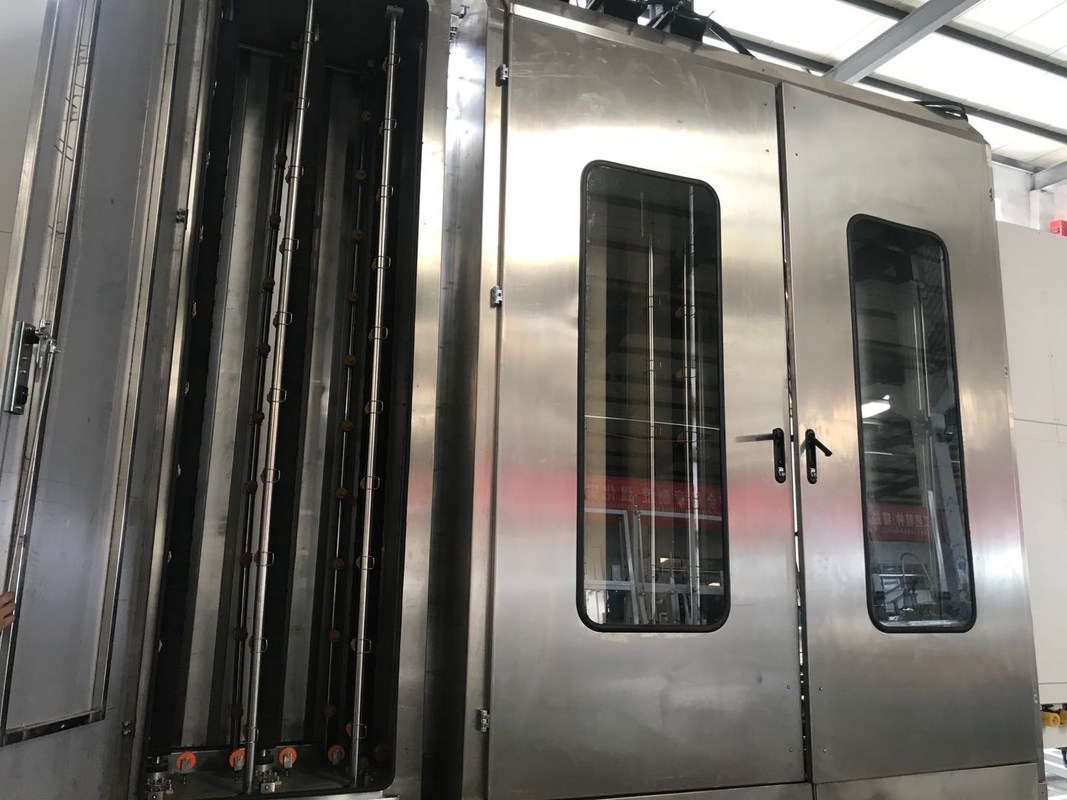

Washing section  of  high performance glass

  • Materials

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.

  • Six Brushes

It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass .

  • Noise reduction device

The noise can be controlled below 90 decibels by using nylon gear and sponges.
Open Top Vertical Glass Cleaning Machine Low E Glass Washing Drying Machine 0



company profile of  automatic temperature control



      Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

       The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. So that our company has became an vital domestic and foreign glass processing equipment supplier. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.
